SD200 841 Motor

  • End Date
    19-08-2026
  • Quantity
    100
  • Product Location
    United States
  • Supplier
    ABB
    + View More items
  • Availability (Lead Time)
    4-6 Weeks
  • Condition
    <p>New</p>
  • Chat with Seller

Description

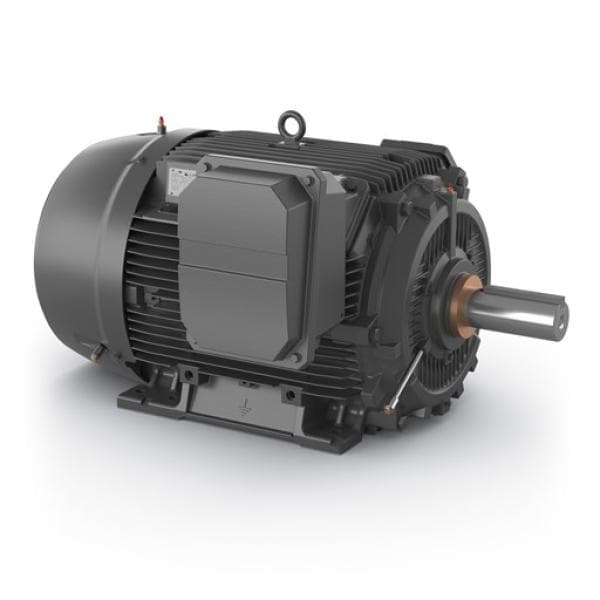

The SD200 841 Motor is engineered to surpass the rigorous demands of modern industries, adhering to the updated IEEE Standard 841-2021. This motor series offers superior efficiency, performance, and durability, making it suitable for a variety of challenging applications.

Specifications include:

  • Horsepower ranging from 125 to 400 Hp (93 to 298 kW), accommodating a broad spectrum of industrial needs.
  • Available in NEMA frame sizes from 444 to L449, ensuring compatibility with various installations.
  • Operating voltages of 460 and 575 volts, with 2, 4, 6, or 8 pole configurations, providing flexibility in application and performance.
  • An IP56 rating, guaranteeing protection against dust ingress and high-pressure water jets.
  • Equipped with Inpro/Seal® bearing isolators on both ends to enhance bearing protection and longevity.
  • Bearings feature an automatic grease relief fitting to minimize the risk of over-greasing.
  • Mounting options include both C-face and D-flange, offering versatility in installation.
  • Constructed with a robust cast iron frame for extended durability under severe conditions.
  • Compliant with Class I, Division 2 and Class II, Division 2 standards, suitable for hazardous environments.
  • Features a cast iron, diagonally split oversized terminal box for improved connectivity and maintenance ease.
  • A stainless steel embossed nameplate and epoxy paint finish enhance durability and corrosion resistance.
  • Class H insulation paired with a NEMA Class B temperature rise ensures efficient operation and thermal management.
  • Designed to operate with low vibration at 0.06 IPS, promoting smoother and quieter operation.
  • Inverter duty compliant per NEMA MG1 Part 31, supporting adjustable-speed operation with variable torque 20:1 and constant torque 4:1 ratios.

This motor is ideally suited for industries requiring reliable, high-performance motors capable of enduring the most severe operating conditions while maintaining energy efficiency and operational excellence.
