Description

Product Description

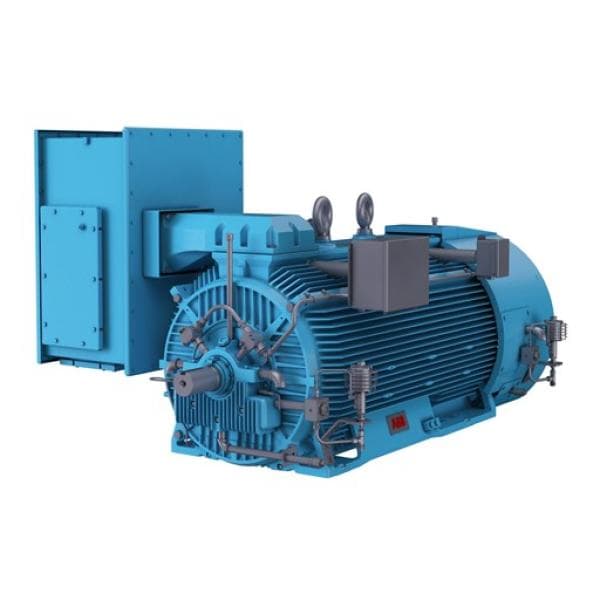

Severe Duty Motors

Enclosure: Totally enclosed fan cooled (TEFC) with a cast iron frame, end shields, and inner caps ensuring robust protection.
Materials: Carbon steel fan cover and air deflector; stainless steel breather and drain.
Sealing: V-Ring shaft slinger for enhanced sealing.
Protection: Specially formulated modified epoxy paint with UV protection guards against environmental elements.
Coating: Epoxy coated rotor OD, stator ID, and windings for superior corrosion resistance.
Conduit Box: Oversized main conduit box equipped with a ground lug.
Electrical Protection: Features a 3.5 pu Surge withstand capacity.
Bearing Insulation: Insulated bearings with provisions for bearing RTD’s to monitor temperature and prevent failures.
Efficiency: High efficiency design (95% or higher) reducing operational costs.
Warranty: Includes a 3-year warranty on stock motors.
Additional Features: 100 ohm platinum winding RTD’s and space heaters for optimal operation in varying conditions.
Shaft Options:
- “S” shafts designed for coupled loads, non-convertible to roller bearings.
- “L” shafts with ball bearings, convertible to roller bearings for flexible application.
- Belted duty “LR” shafts are primarily roller bearing but can be converted to ball bearings.
Safety and Compliance: Motors are marked for Division 2/Zone 2, Class I locations, showcasing their suitability for hazardous environments.
Inverter Compatibility: Inverter Ready design includes speed range and inverter T. Code on the nameplate, suitable for variable speed applications.

These severe duty motors are built to withstand the most challenging environments, combining durability with performance to meet the demands of heavy industrial applications.
