"2022 CAT 323D3 Tracked Excavator CEC109 - 22.8 Ton"

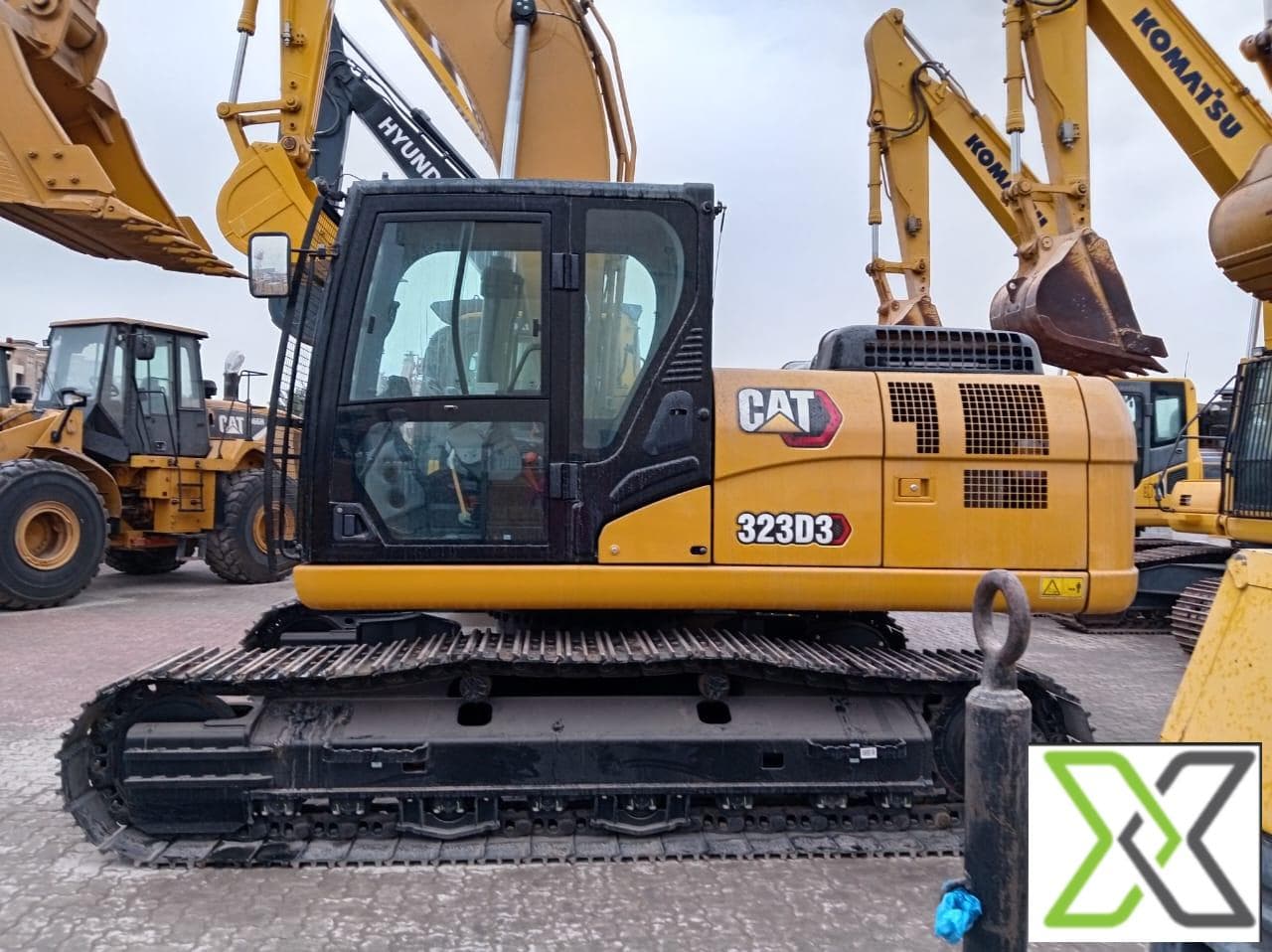

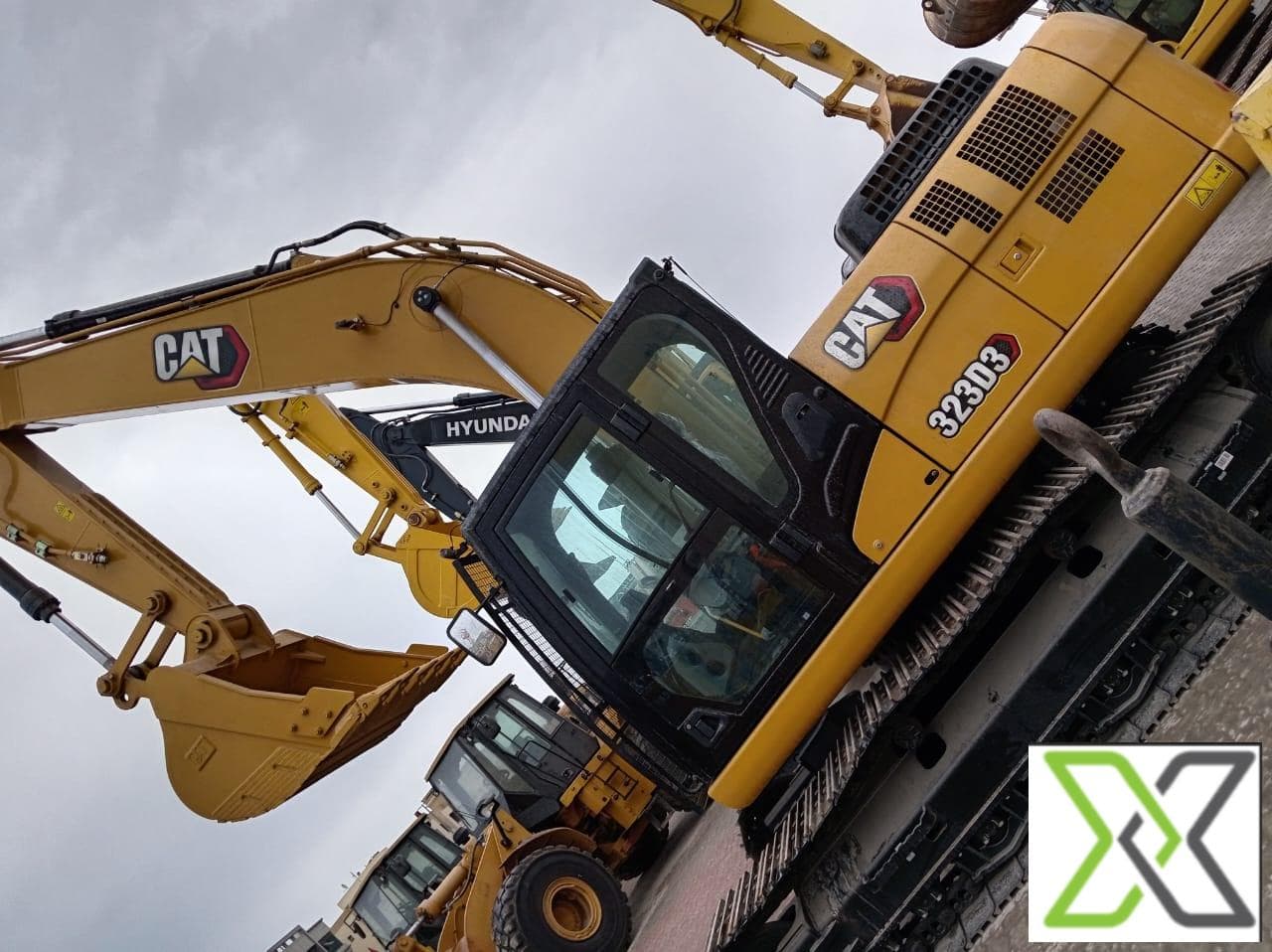

CAT 323D3 Tracked Excavator CEC109 (2022) – 22.8 Ton

ReflowX SKU: REF-9650

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United Arab Emirates
  • Condition
  • OEM
    CAT
  • Equipment code
  • Total Price
  • Per Unit Price
    $125,900
Chat With Seller

Description

Key Specifications:

  • Model: Caterpillar 323D3
  • Year: 2022
  • Operating Weight: 22,800 kg (22.8 tons / 50,265 lbs)
  • Engine Power: 130 kW (174 hp) at 1,800 rpm
  • Engine Model: Cat C7.1 ACERT diesel engine
  • Max Digging Depth: 7,730 mm (304.5 inches)
  • Max Reach at Ground Level: 11,490 mm (452.8 inches)
  • Maximum Bucket Digging Force: 141 kN (31,700 lbf)
  • Maximum Arm Digging Force: 106 kN (23,900 lbf)

Dimensions:

  • Overall Length (with standard boom): 10,620 mm (418.5 inches)
  • Overall Width: 2,950 mm (116.1 inches)
  • Overall Height: 3,280 mm (129.1 inches)
  • Track Length: 4,220 mm (166.1 inches)
  • Track Width: 600 mm (23.6 inches) standard
  • Ground Clearance: 450 mm (17.7 inches)

Hydraulics & Performance:

  • Hydraulic System Flow: 404 l/min (106.5 gpm) for increased power and efficiency in demanding work.
  • Hydraulic Pump Flow: Dual pumps with a combined flow rate to optimize performance across multiple operations (digging, lifting, etc.).
  • Auxiliary Hydraulics: Available for attachments such as hydraulic hammers, grabs, or augers.

Fuel Efficiency & Capacity:

  • Fuel Tank Capacity: 350 liters (92.5 gallons), allowing for longer operation periods without refueling.
  • Hydraulic Tank Capacity: 210 liters (55.5 gallons)
  • Lube Oil Capacity: 32 liters (8.5 gallons)

Operator’s Comfort & Control:

  • Cab Type: Fully enclosed, ergonomic cabin with panoramic visibility, ensuring safety and comfort.
  • Seat: Adjustable, suspension seat for reduced operator fatigue.
  • Climate Control: Air conditioning and heating systems, keeping the operator comfortable in various climates.
  • Control System: Joystick controls with ISO or SAE patterns for easy and efficient operation.
  • Display System: The advanced Cat Monitor displays key machine metrics like fuel efficiency, maintenance schedules, and performance diagnostics.

Key Features:

  1. Powerful Engine: The Cat C7.1 ACERT engine provides superior power, allowing the excavator to perform in demanding conditions while meeting modern emission standards.
  2. Hydraulic Efficiency: The hydraulic system is designed to deliver high performance, with impressive digging and lifting capabilities.
  3. Enhanced Fuel Efficiency: The 323D3 has an advanced fuel-efficient system that helps lower fuel consumption and operating costs.
  4. Advanced Safety Features: The excavator is equipped with multiple safety features, including ROPS (Roll-Over Protective Structure), FOPS (Falling Object Protective Structure), and rearview cameras.
  5. Advanced Diagnostics: The Caterpillar Advanced Diagnostic System (Cat App) helps monitor machine performance, track service intervals, and improve machine uptime.
  6. Maintenance Friendly: The 323D3 is designed for easy maintenance, with ground-level access to key components like filters, oil checks, and service points.

    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
