"2008 JCB 4CX Backhoe Loader - Durable & High Performance"

JCB 4CX Backhoe Loader - 2008

ReflowX SKU: REF-9490

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    JCB
  • Equipment code
  • Total Price
  • Per Unit Price
    $36,000
Chat With Seller

Description

JCB 4CX Backhoe Loader (2008 Model) - Specifications


Key Specifications:

  • Model: JCB 4CX
  • Year: 2008
  • Engine Power: 81.5 kW (109 hp) at 2,200 rpm
  • Engine Type: JCB DieselMax (4-cylinder turbocharged engine)
  • Operating Weight: Approximately 8,200 kg (18,080 lbs)
  • Loader Bucket Capacity: 1.0 – 1.3 m³ (1.3 – 1.7 yd³), depending on configuration
  • Backhoe Bucket Capacity: 0.2 – 0.3 m³ (0.26 – 0.39 yd³)
  • Max Digging Depth (Backhoe): 6,090 mm (240.6 inches)
  • Max Reach from Swing Post (Backhoe): 6,360 mm (250 inches)
  • Max Lift Capacity (Loader): 3,800 kg (8,378 lbs)
  • Travel Speed: 40 km/h (25 mph)
  • Fuel Tank Capacity: 160 liters (42.2 gallons)

Dimensions:

  • Overall Length (with loader arm): 6,365 mm (250.6 inches)
  • Overall Width: 2,510 mm (98.8 inches)
  • Height to Top of Cab: 3,580 mm (141.7 inches)
  • Wheelbase: 2,540 mm (100 inches)
  • Ground Clearance: 380 mm (15 inches)

Engine & Performance:

  • Engine Model: JCB DieselMax 4-cylinder turbocharged engine, renowned for its fuel efficiency and high power output.
  • Max Torque: 500 Nm (369 lb-ft) at 1,400 rpm, delivering strong digging force and lifting capacity.
  • Transmission: 4-speed powershift transmission for smooth forward/reverse shuttle and efficient operation on all terrains.
  • Hydraulic Flow Rate: 160 l/min (42.2 gpm) high-flow hydraulics, optimized for fast response and efficient performance.

Hydraulic & Lifting System:

  • Hydraulic System: Designed to offer excellent digging and lifting force, the hydraulic system is well-suited for demanding tasks such as trenching, material handling, and excavation.
  • Loader Lift Capacity: The loader arm can lift up to 3,800 kg (8,378 lbs), making it ideal for loading and material handling in construction environments.
  • Backhoe Digging Force: The backhoe offers strong digging power, ideal for trenching and other excavation tasks, with a digging depth of up to 6,090 mm.

Operator Comfort & Controls:

  • Cab Type: Fully enclosed, air-conditioned operator's cabin designed for maximum comfort and safety, even in extreme working conditions.

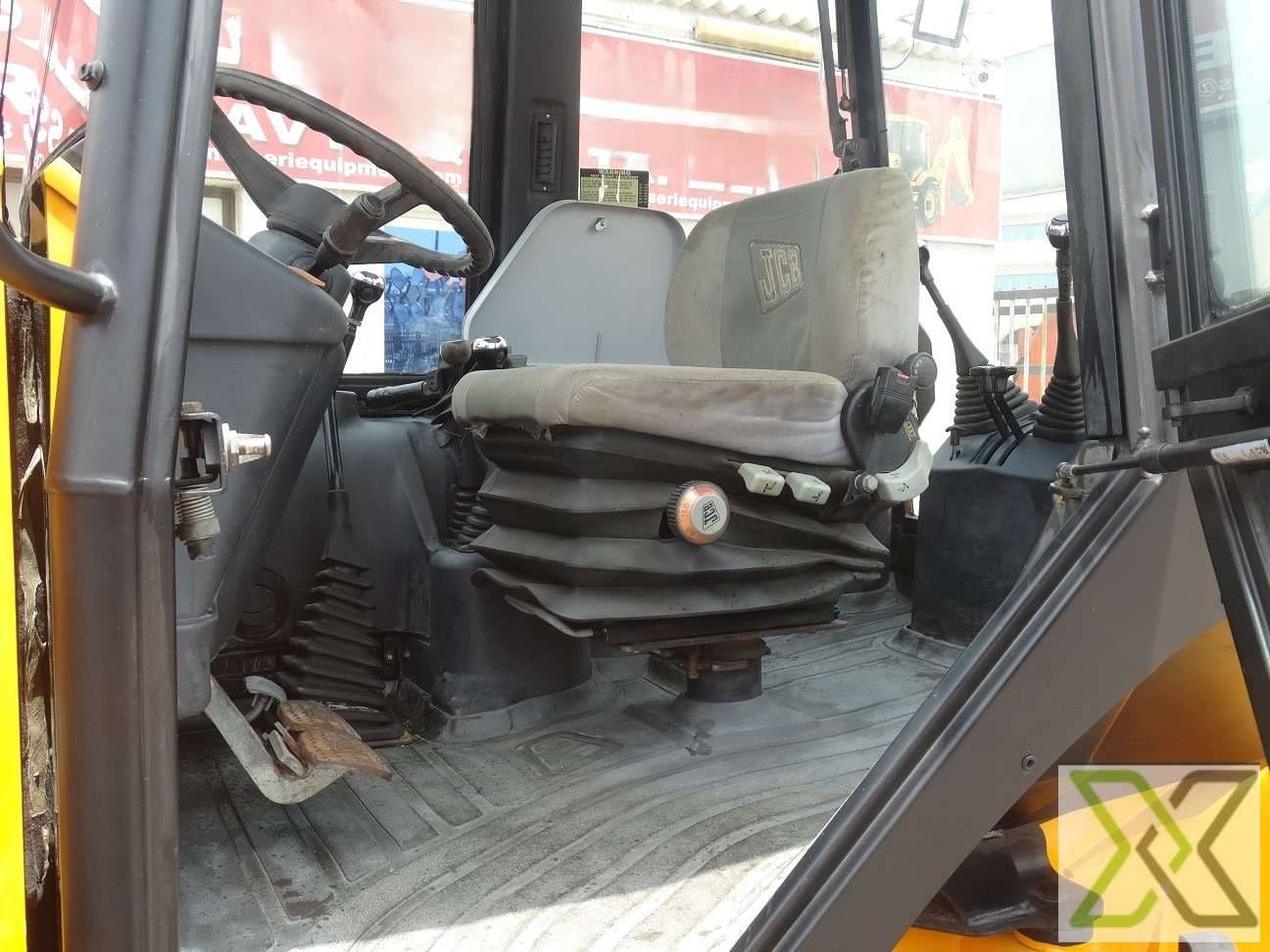

  • Seating: Adjustable high-back suspension seat, designed to reduce operator fatigue over long working hours.
  • Control System: Joystick controls with electro-hydraulic operation, offering smooth and precise control of both the loader and backhoe functions.
  • Visibility: Excellent all-around visibility due to large glass areas, ensuring safety and precise operation, especially in confined or busy workspaces.
  • Instrument Cluster: An easy-to-read display panel that shows important operational information, including engine diagnostics, hydraulic pressures, fuel levels, and more.
  • Climate Control: Air conditioning and heating options to ensure operator comfort in all weather conditions.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
