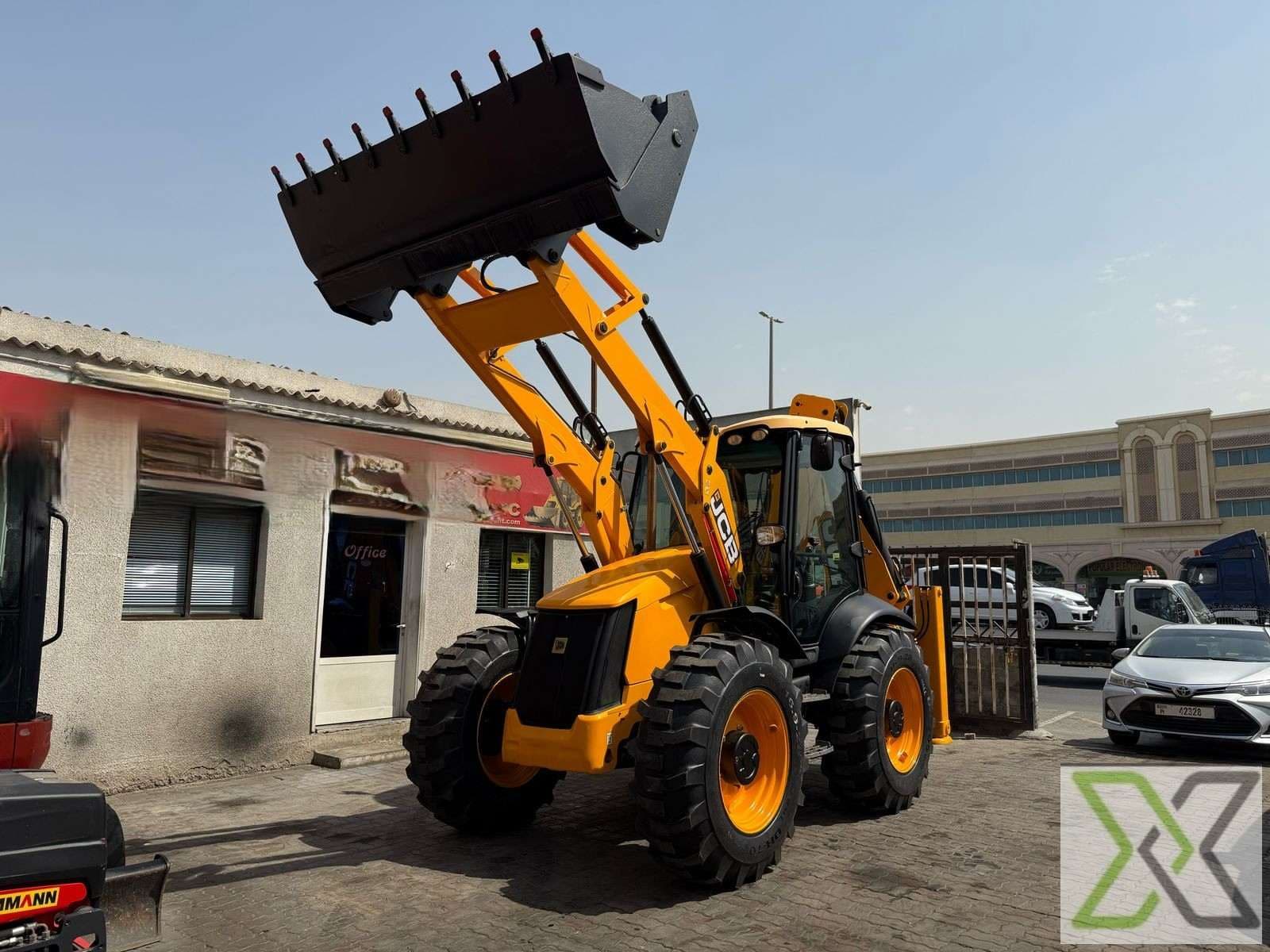

JCB 4CX Backhoe Loader (2016 Model) - Description & Specifications
General Overview:
The JCB 4CX (2016) is an advanced backhoe loader that delivers exceptional power, performance, and fuel efficiency. Equipped with a powerful engine, advanced hydraulics, and enhanced operator features, it is ideal for tasks like digging, lifting, material handling, grading, and more. This model is known for its ability to perform at high capacity and is suited for a wide range of applications in construction, mining, agriculture, and utilities.
Key Specifications:
- Model: JCB 4CX
- Year: 2016
- Engine Power: 81.5 kW (109 hp) at 2,200 rpm
- Engine Type: JCB DieselMax (4-cylinder turbocharged)
- Operating Weight: Approximately 8,500 kg (18,700 lbs)
- Loader Bucket Capacity: 1.0 – 1.3 m³ (1.3 – 1.7 yd³), depending on the configuration
- Backhoe Bucket Capacity: 0.2 – 0.3 m³ (0.26 – 0.39 yd³)
- Max Digging Depth (Backhoe): 6,090 mm (240.6 inches)
- Max Reach from Swing Post (Backhoe): 6,360 mm (250 inches)
- Max Lift Capacity (Loader): 3,800 kg (8,378 lbs)
- Travel Speed: 40 km/h (25 mph)
- Fuel Tank Capacity: 160 liters (42.2 gallons)
Dimensions:
- Overall Length (with loader arm): 6,365 mm (250.6 inches)
- Overall Width: 2,510 mm (98.8 inches)
- Height to Top of Cab: 3,580 mm (141.7 inches)
- Wheelbase: 2,540 mm (100 inches)
- Ground Clearance: 380 mm (15 inches)
Engine & Performance:
- Engine Model: JCB DieselMax 4-cylinder turbocharged engine, known for its power and fuel efficiency.
- Max Torque: 500 Nm (369 lb-ft) at 1,400 rpm, providing excellent digging and lifting power.
- Hydraulic System Flow: 160 l/min (42.2 gpm) for efficient material handling and quick hydraulic response.
- Transmission: 4-speed, powershift transmission for smooth operation and ease of driving across various terrains.
Hydraulics & Lifting System:
- Hydraulic Power: Equipped with a high-flow hydraulic system, offering quick cycle times and high digging/lifting performance.
- Loader Lift Capacity: Capable of lifting up to 3,800 kg (8,378 lbs), making it suitable for heavy-duty material handling and lifting operations.
- Backhoe Digging Force: Strong digging force for trenching, foundation digging, and utility work.

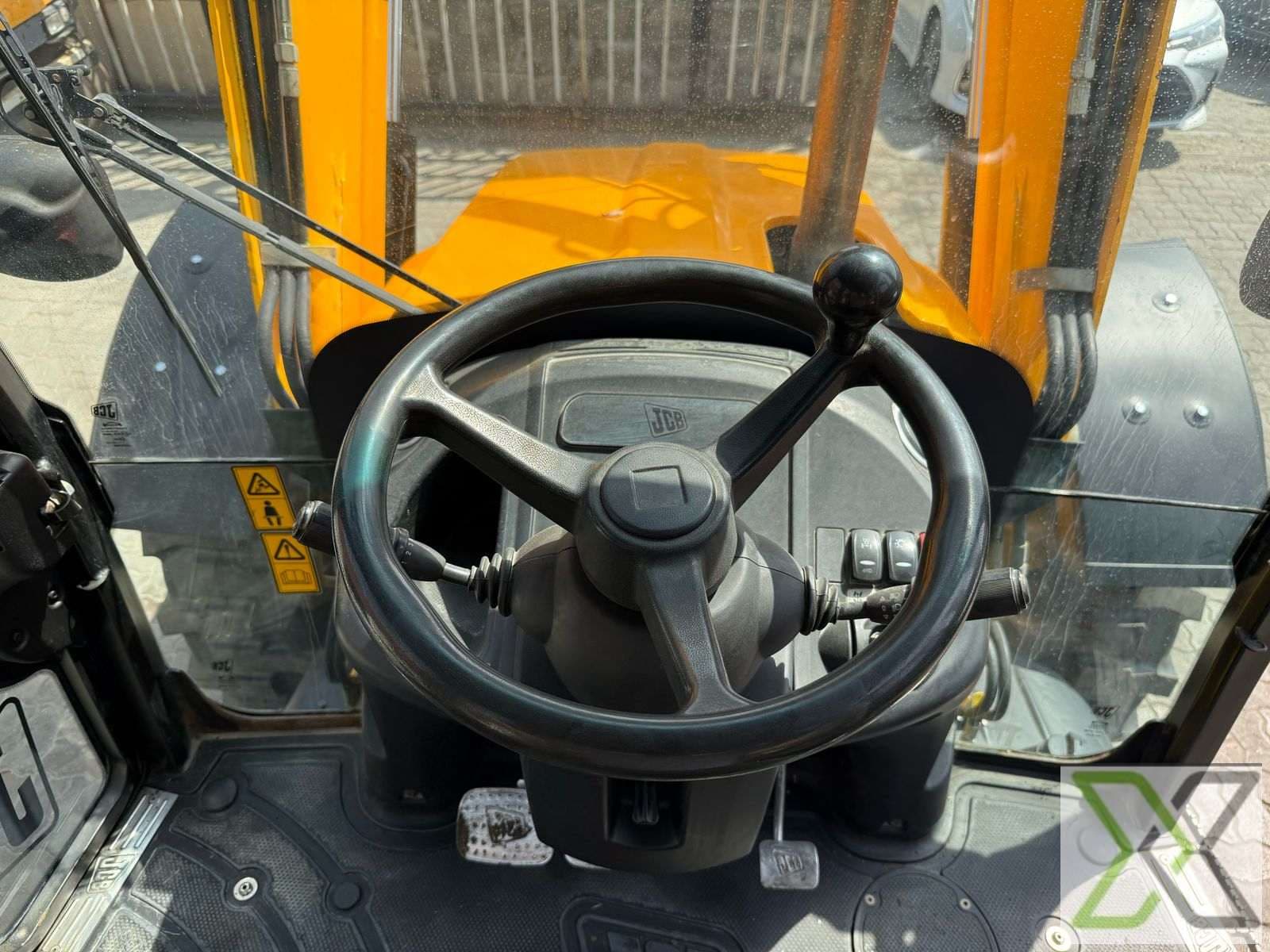

Operator Comfort & Controls:
- Cab Type: Fully enclosed, air-conditioned, and ergonomic operator’s cab designed for maximum comfort and safety.
- Seating: Adjustable, high-back, suspension seat to reduce operator fatigue during long working hours.
- Control System: Electro-hydraulic joystick controls for smooth, responsive operation of both the loader and backhoe arms.
- Visibility: Wide, all-around visibility, allowing the operator to have a clear view of the work area for precise and safe operations.
- Climate Control: Air conditioning and heating for optimal operator comfort in various climates.
- Instrument Cluster: The dashboard features an easy-to-read display showing key information such as fuel levels, engine status, and maintenance indicators.
