"2018 JCB 540-170 Telehandler Boom Loader – High Reach & Versatile"

JCB 540-170 Telehandler – Boom Loader - 2018(003)

ReflowX SKU: REF-3923

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    JCB
  • Equipment code
  • Total Price
  • Per Unit Price
    $77,900
Chat With Seller

Description

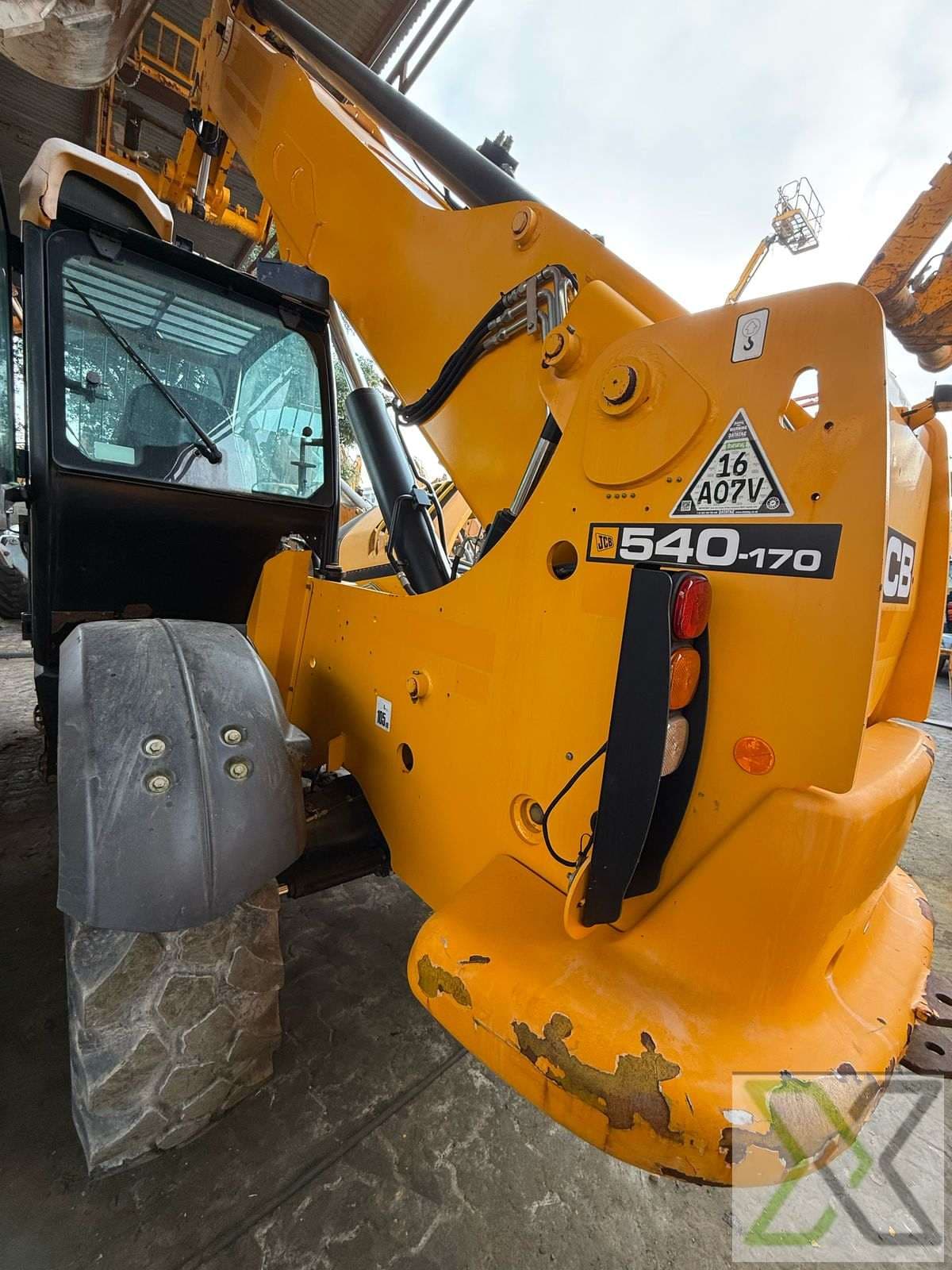

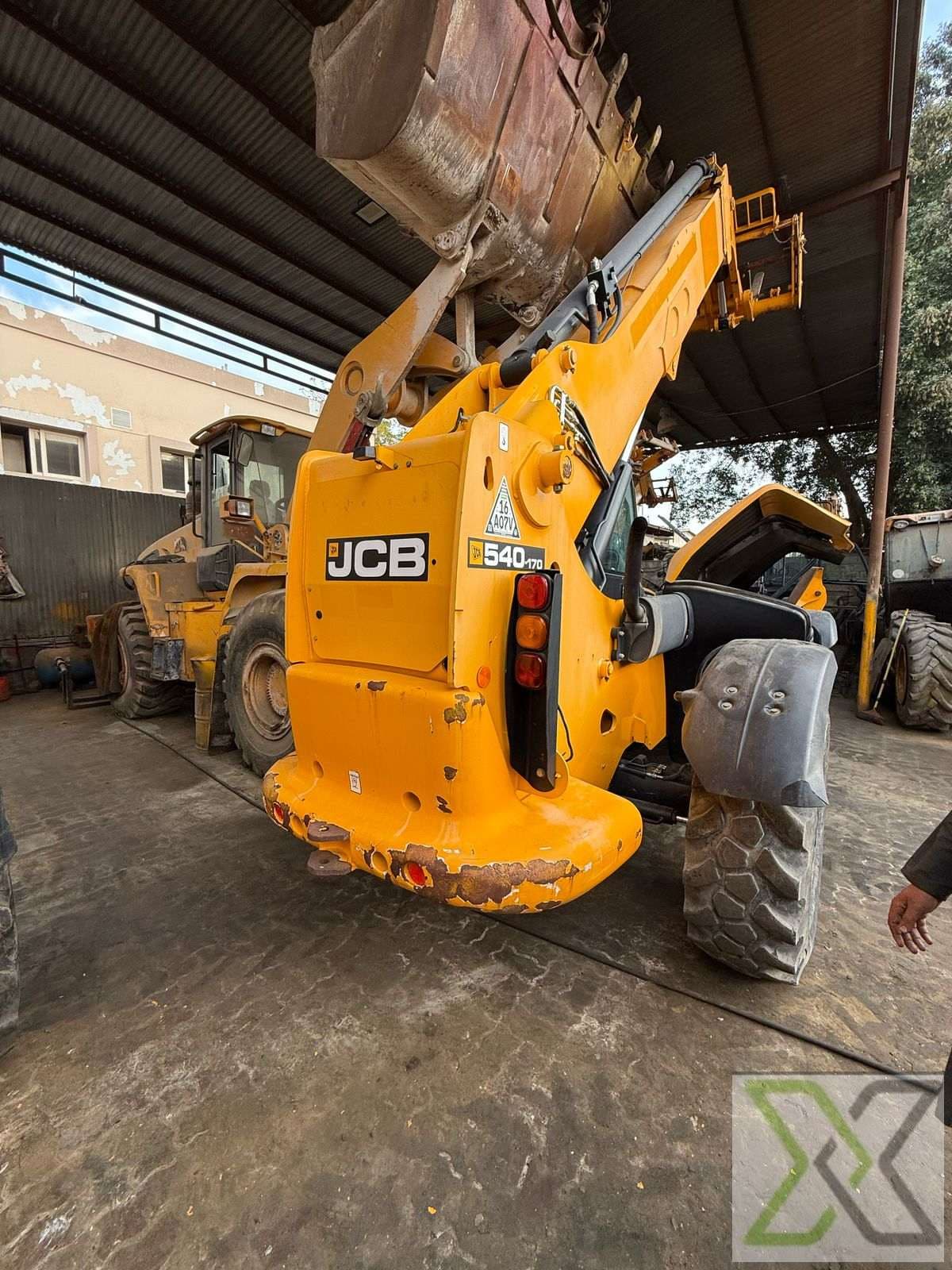

JCB 540-170 Telehandler Boom Loader (2018 Model) - Specifications

Key Specifications:

  • Model: JCB 540-170
  • Year: 2018
  • Engine Power: 81.5 kW (109 hp) at 2,200 rpm

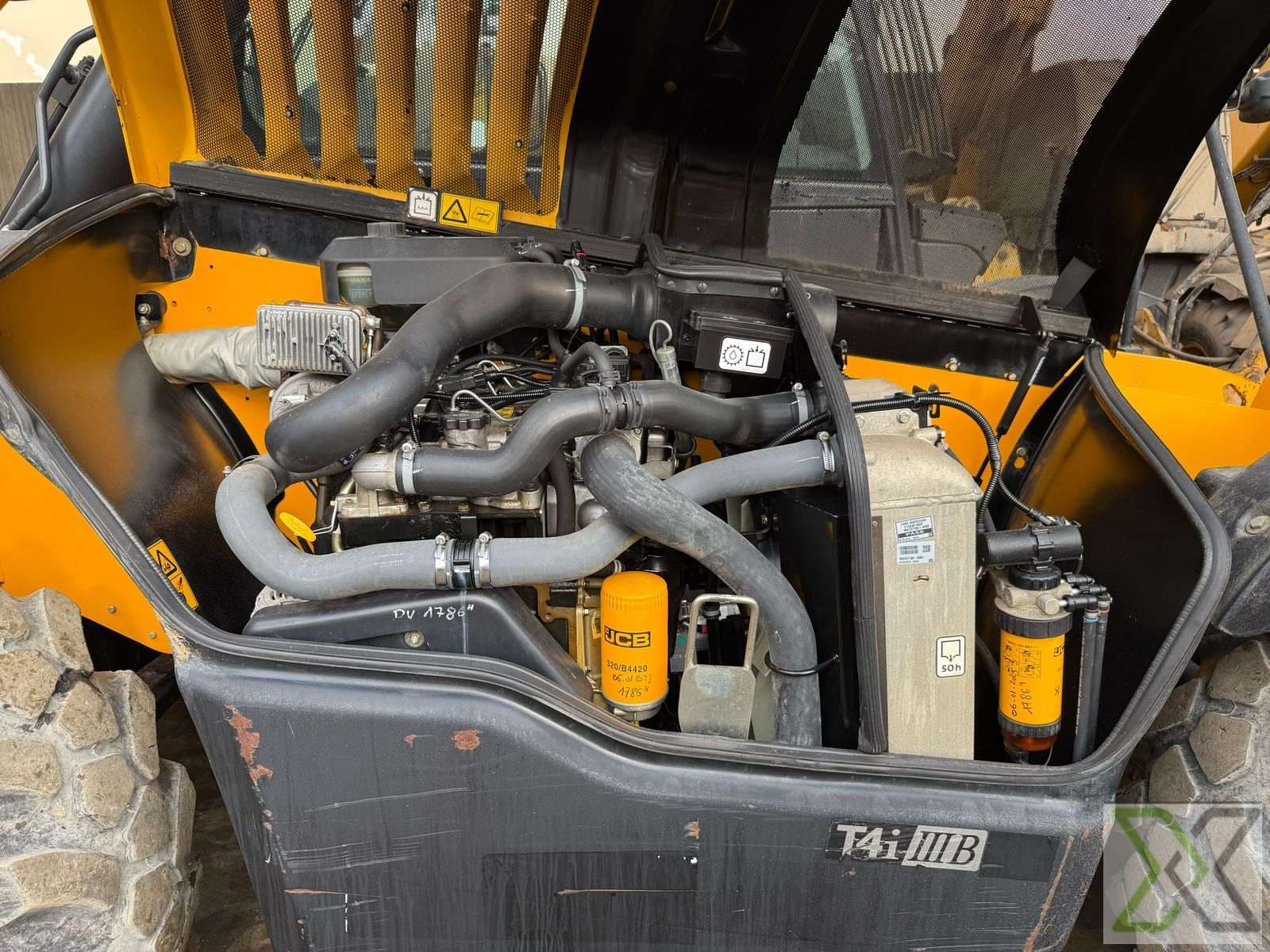

  • Engine Type: 4-cylinder turbocharged diesel engine
  • Maximum Lift Capacity: 4,000 kg (8,818 lbs)
  • Maximum Lift Height: 17 meters (55.8 feet)
  • Maximum Reach (Forward Reach): 13.7 meters (45 feet)
  • Hydraulic System Flow Rate: 120 l/min (31.7 gpm)
  • Max Travel Speed: 40 km/h (24.85 mph)
  • Fuel Tank Capacity: 120 liters (31.7 gallons)
  • Transmission Type: Hydrostatic transmission
  • Turning Radius: 4.5 meters (14.8 feet)
  • Tire Size: 400/70-20 (depending on configuration)

Dimensions:

  • Overall Length: 5,180 mm (203.9 inches)
  • Overall Width: 2,350 mm (92.5 inches)
  • Overall Height (with cab): 2,450 mm (96.5 inches)
  • Wheelbase: 2,850 mm (112.2 inches)
  • Ground Clearance: 400 mm (15.7 inches)
  • Operating Weight: Approximately 8,000 kg (17,637 lbs)

Lifting and Performance:

  • Maximum Load Moment: 3,300 kg/m (2,242 ft-lbs)
  • Maximum Lift Capacity (at Full Reach): 1,000 kg (2,204 lbs) at 13.7 meters (45 feet) forward reach
  • Max Lift Capacity (Close to Machine): 4,000 kg (8,818 lbs)
  • Boom Extension: Fully hydraulic telescoping boom that extends to a maximum reach of 17 meters (55.8 feet)
  • Max Fork Height: 17 meters (55.8 feet)
  • Maximum Fork Reach: 13.7 meters (45 feet)

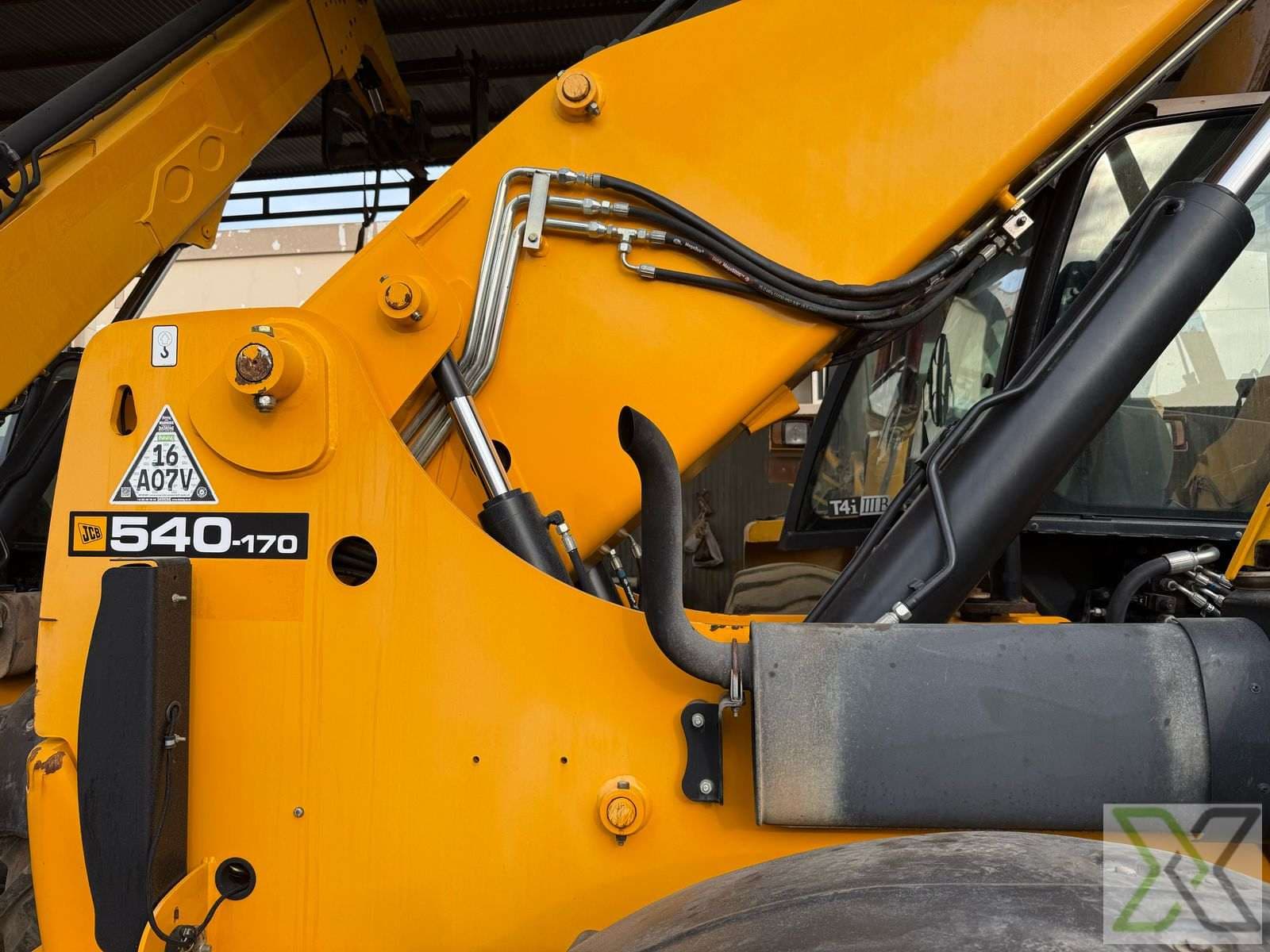

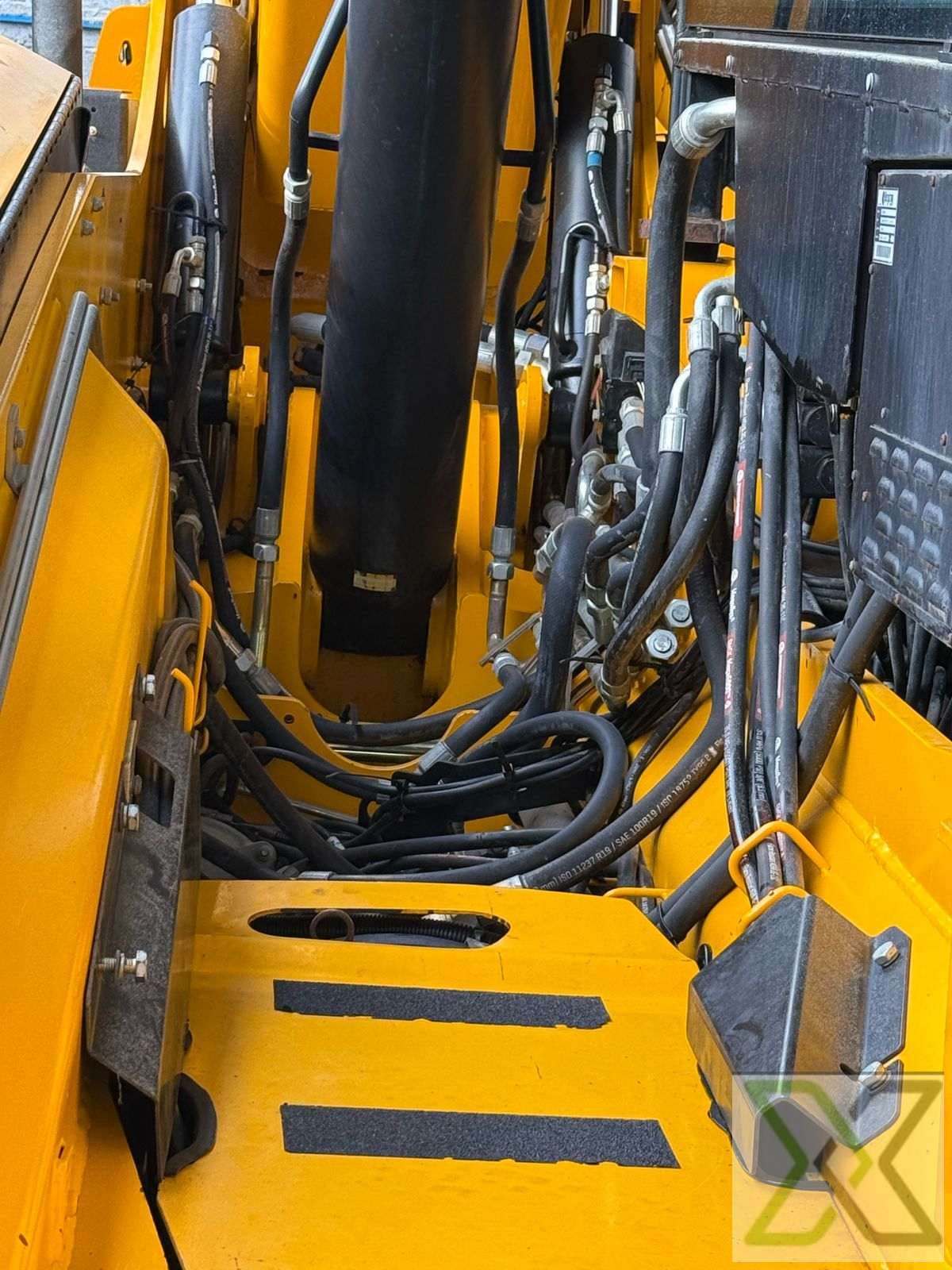

Hydraulic System:

  • Hydraulic Type: Load-sensing hydraulic system
  • Pump Flow Rate: 120 liters per minute (31.7 gpm), providing fast boom operation and attachment handling
  • Auxiliary Hydraulics: Yes, for running additional attachments such as buckets, lifting forks, and more
  • Hydraulic Pressure: 210 bar (3,045 psi) for efficient lifting and extended boom operation

Drive and Performance:

  • Drive Type: 4WD (Four-Wheel Drive) for superior traction on rough and uneven surfaces
  • Steering: Full hydrostatic steering for precise and responsive handling in tight spaces
  • Transmission: Hydrostatic transmission offering variable speed control, ensuring smooth and efficient operation
  • Travel Speed: 40 km/h (24.85 mph), providing fast travel on the job site
  • Max Gradient: 45% gradient (for steep inclines, ensuring the telehandler can operate on challenging terrains)

Operator Comfort & Safety:

  • Cab: Spacious and fully enclosed with air-conditioning and heating options for year-round comfort
  • Controls: Ergonomically designed joystick control system for easy operation of the boom, hydraulics, and attachments
  • Visibility: Excellent visibility from the operator’s seat, with large glass areas to ensure clear sightlines of the load and surroundings
  • Suspension: High-quality suspension for a smoother ride and reduced operator fatigue
  • Seat: Adjustable, fully suspended operator seat with safety harness
  • Lighting: Full set of work lights for operation in low-light conditions
  • Safety Features:
    • Load-sensing hydraulics to prevent overloads
    • Operator presence sensing to ensure safe operation
    • Stability control system for safe lifting at high reaches and loads
    • Anti-slip steps and handrails for easy and safe entry and exit from the cab

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
