"2011 KOMATSU 2.5 Ton Forklift Truck – Reliable & Efficient"

KOMATSU 2.5 TON Fork Lift Trucks - 2011

ReflowX SKU: REF-1148

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    KOMATSU
  • Equipment code
  • Total Price
  • Per Unit Price
    $19,470
Chat With Seller

Description

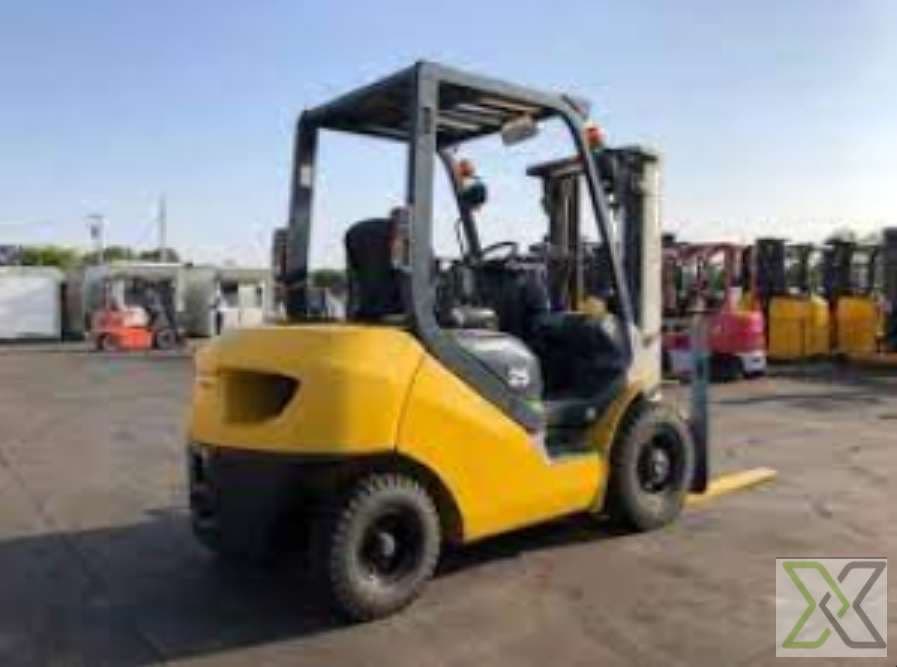

Komatsu FD25-17 2.5 Ton Forklift Truck (2011) - Full Specifications:

Model Information:

  • Model: Komatsu FD25-17
  • Year: 2011
  • Type: Diesel-powered Forklift Truck
  • Load Capacity: 2,500 kg (2.5 tons)
  • Load Center: 500 mm (standard load center)

Mast & Lift Features:

  • Lift Height: Up to 4,500 mm (with standard mast)
  • Max. Fork Height: 4,500 mm
  • Mast Type: Duplex or Triplex Mast (depending on configuration)
  • Free Lift Height: Approximately 150-200 mm (depending on mast type)
  • Lift Speed: 450-500 mm/s (full load)
  • Lowering Speed: 450 mm/s (full load)

Dimensions:

  • Overall Length: 2,800 mm
  • Overall Width: 1,800 mm
  • Overall Height (Mast Raised): 4,300 mm (with standard mast)
  • Turning Radius: 2,500 mm (approx.)
  • Ground Clearance: 160 mm
  • Fork Length: 1,100 mm (standard forks)

Engine & Performance:

  • Engine Type: Diesel, 4-cylinder, water-cooled
  • Engine Model: Komatsu S4D95
  • Engine Power: 55 kW (approximately 74 hp)
  • Max. Torque: 240 Nm (approximately)
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 70-80 liters (approx.)
  • Transmission: Torque converter with a 3-speed automatic transmission
  • Max. Travel Speed: 20-25 km/h (unladen)
  • Gradeability: 20-25% (depending on conditions)

Hydraulic System:

  • Hydraulic Lift Capacity: 2,500 kg (depending on the configuration)
  • Pump Type: Gear pump
  • Hydraulic System Pressure: 180-200 bar
  • Hydraulic Oil Tank Capacity: 80 liters

Tyres:

  • Tyre Type: Pneumatic or solid tires (depending on model variant)
  • Front Tyre Size: 6.00-9 (pneumatic)
  • Rear Tyre Size: 5.00-8 (pneumatic)
  • Tire Material: Rubber (standard pneumatic tires, but can vary with application)

Braking System:

  • Brakes: Hydraulic disc brakes (wet multi-disc type)
  • Parking Brake: Mechanical, spring-loaded type
  • Service Brakes: Oil-immersed multi-disc

Operator Cabin:

  • Operator Cabin: Spacious and ergonomic with clear visibility
  • Seat: Adjustable seat with high backrest for comfort
  • Controls: Hydraulic levers for lifting and tilting, with easy-to-reach controls
  • Instruments: Fully digital display with key indicators for engine health, fuel level, and hydraulic pressure
  • Safety Features:
    • Seat belt with automatic tensioning
    • Overhead guard for operator protection
    • Optional safety lights and horn

Weight & Payload:

  • Operating Weight: Approximately 4,000-4,500 kg (depending on configuration and mast)
  • Max. Towing Capacity: Approximately 4,500 kg (depending on surface conditions)

Performance & Handling:

  • Max. Towing Speed: 12-15 km/h (depending on configuration)
  • Steering Type: Hydrostatic or Power steering
  • Turning Radius: Approximately 2,500 mm (for maneuverability in tight spaces)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
