"2009 TC60L Rough Terrain Crane - Reliable & High Capacity"

TC60L Rough Terrain Crane - 2009

ReflowX SKU: REF-156

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    TEREX
  • Equipment code
  • Total Price
  • Per Unit Price
    $284,600
Chat With Seller

Description

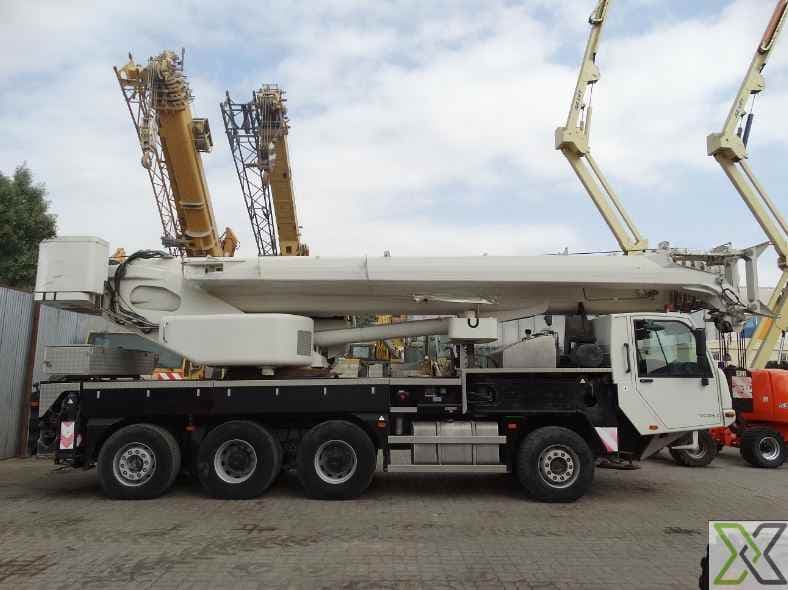

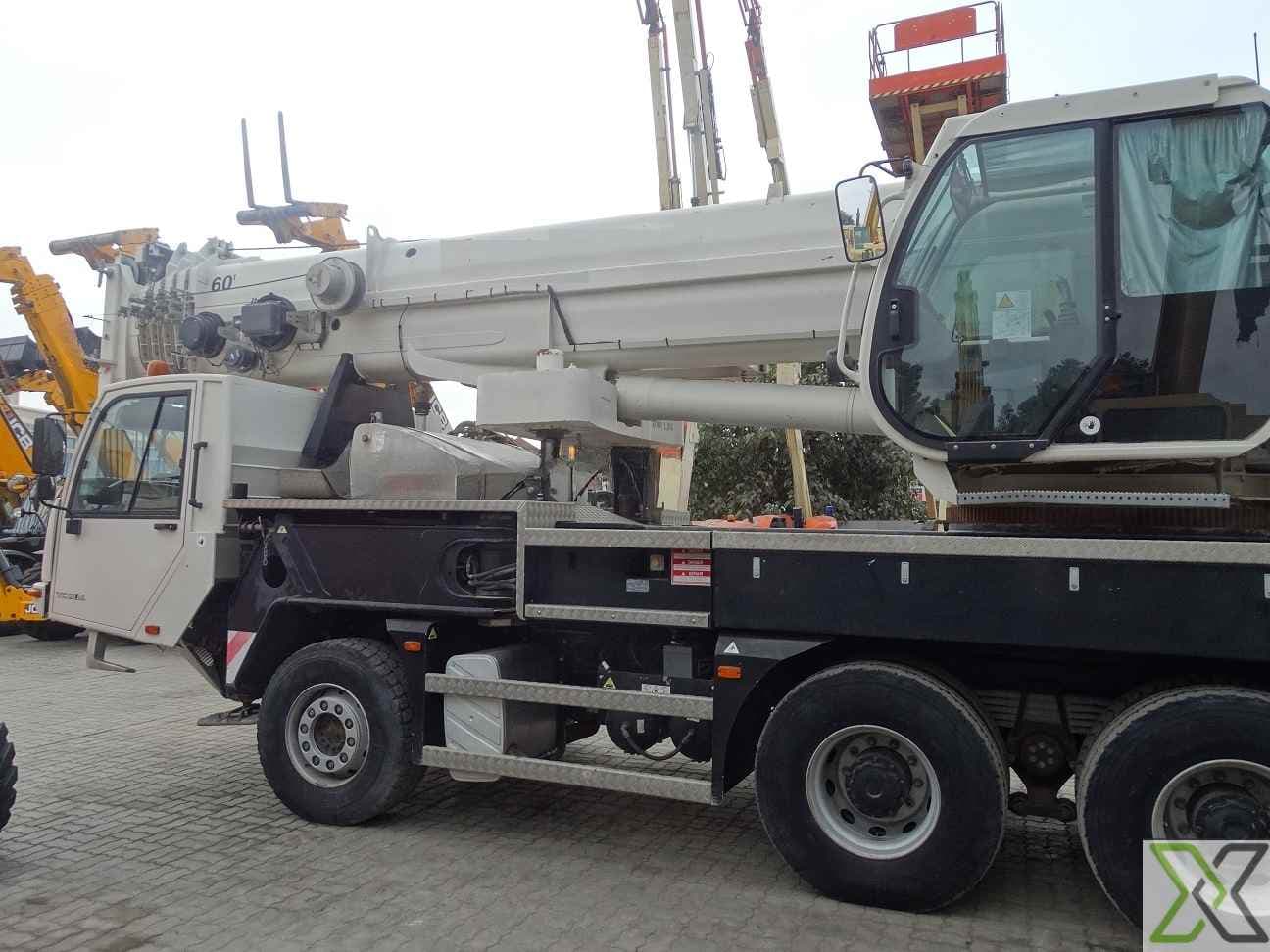

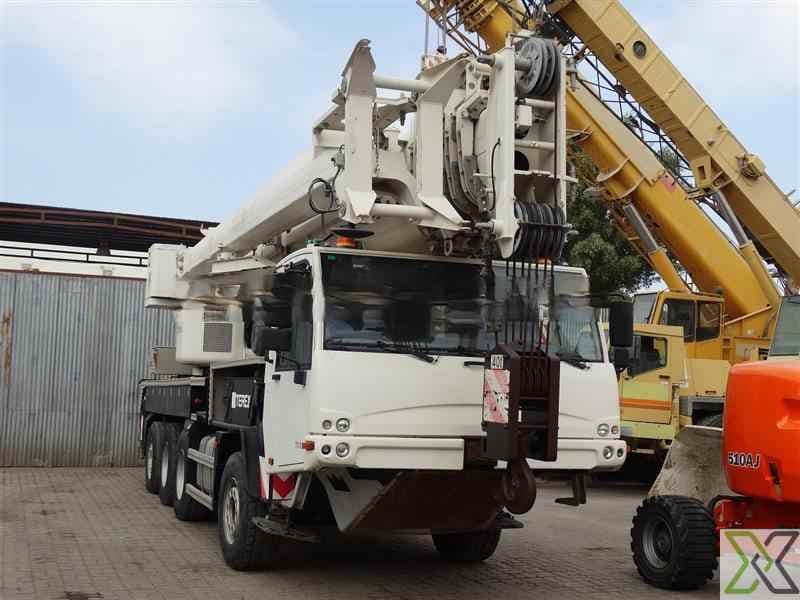

Terex TC60L Rough Terrain Crane (2009 Model) - Specifications



Key Specifications:

  • Model: Terex TC60L
  • Year: 2009
  • Max Lifting Capacity: 60 metric tons (60,000 kg or 132,277 lbs)
  • Boom Length: 33 meters (108.3 feet)
  • Maximum Reach (with jib): 39 meters (127.95 feet)
  • Maximum Hook Height (with jib): 38.7 meters (127.6 feet)
  • Boom Type: Telescopic (3 sections)
  • Axles: 4 (2 axles driving)
  • Drive Type: 4x4 (Four-Wheel Drive)
  • Maximum Travel Speed: 40 km/h (24.85 mph)
  • Engine Power: 163 kW (218 hp)
  • Engine Type: Diesel engine (turbocharged)
  • Transmission: Powershift transmission
  • Fuel Tank Capacity: 200 liters (52.8 gallons)
  • Hydraulic System: Load-sensing system with an open center
  • Hydraulic Tank Capacity: 110 liters (29.1 gallons)
  • Operating Weight: Approximately 35,000 kg (77,162 lbs)
  • Tire Size: 14.00-24

Dimensions:

  • Overall Length (with boom retracted): 11,450 mm (449.2 inches)
  • Overall Width: 2,550 mm (100.4 inches)
  • Height (with boom retracted): 3,550 mm (139.8 inches)
  • Wheelbase: 4,700 mm (185 inches)
  • Ground Clearance: 350 mm (13.8 inches)

Hydraulic System:

  • Main Hydraulic Pump Flow: 120 l/min (31.7 gpm)
  • Max Hydraulic Pressure: 320 bar (4,640 psi)
  • Auxiliary Hydraulic Circuit: Yes, for additional lifting or attachment options

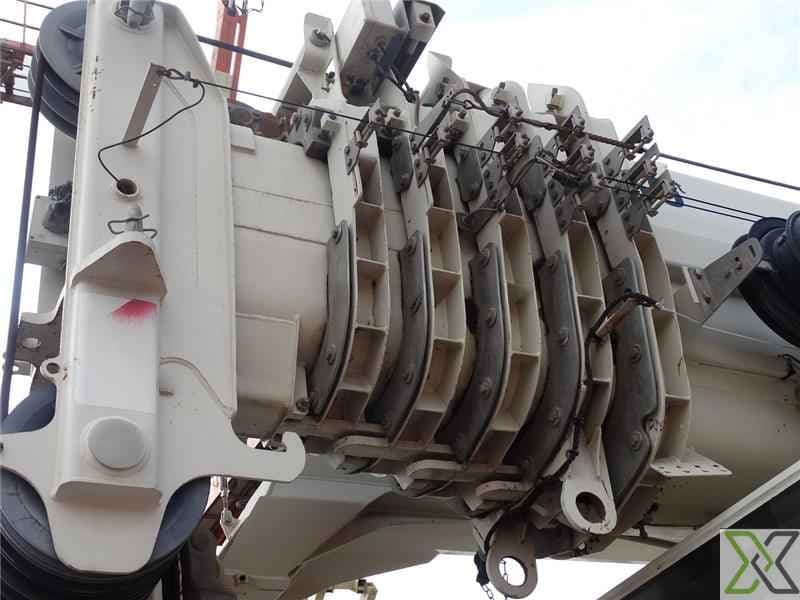

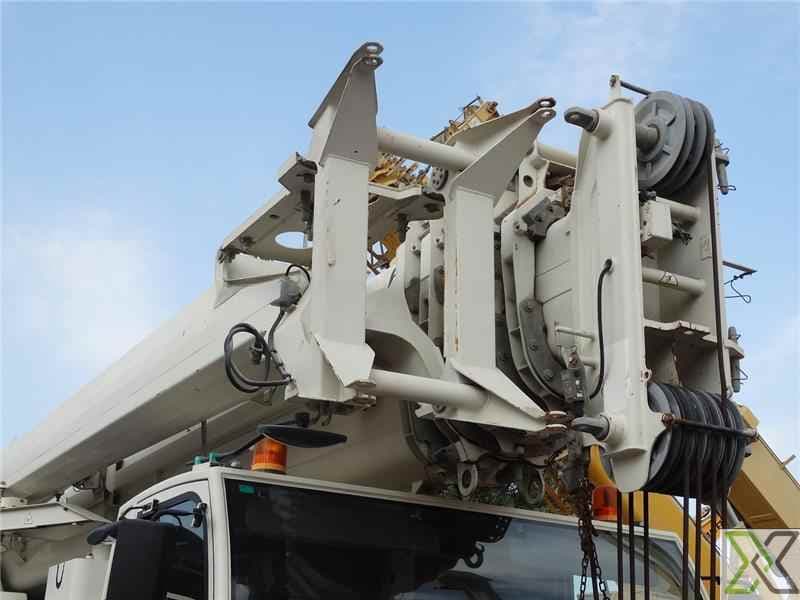

  • Boom Extension and Retraction: Fully hydraulic telescoping system
  • Luffing Jib (optional): Adds to maximum hook height and reach

Lifting Performance:

  • Maximum Load Moment: 206 kNm (152,232 ft-lb)
  • Main Hoist Capacity: 60,000 kg (132,277 lbs) at the first layer of the drum
  • Outriggers: Four hydraulic outriggers that extend outward for maximum stability during lifting operations.
  • Lift Capacity at Maximum Radius: Varies based on load chart, but typically can lift up to 6,000 kg (13,227 lbs) at a maximum radius of 25 meters (82 feet).

Cab and Operator Station:

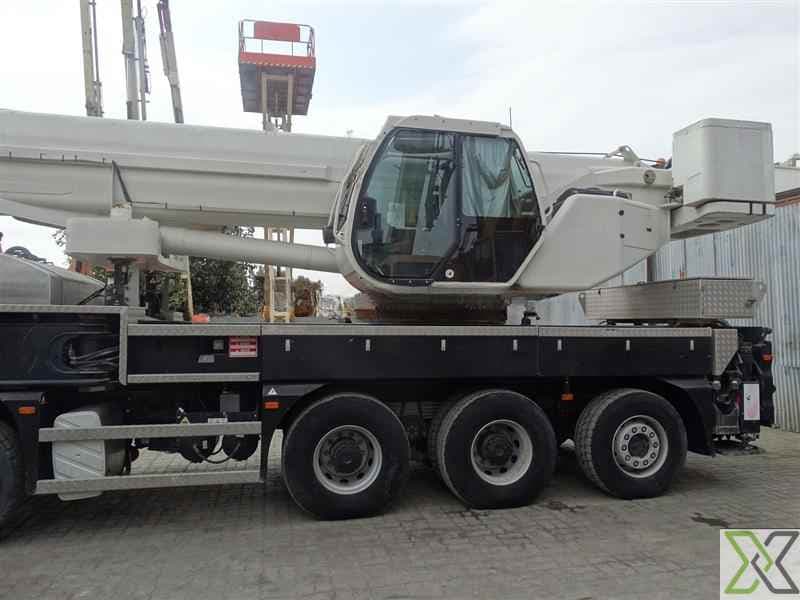

  • Operator's Cab: Fully enclosed, air-conditioned, and ergonomically designed to provide comfort and safety.
  • Control System: Joystick controls, with easy-to-read displays for boom angles, load charts, and operational data.
  • Visibility: Excellent visibility from the operator’s seat, with large windows providing a clear view of the load and working area.
  • Operator Features: Adjustable seating, climate control, and user-friendly control interface for easier handling and safety.

Drive and Performance:

  • Four-Wheel Drive (4WD): Provides the ability to navigate rough terrain and slopes with ease.
  • Transmission: Powershift transmission with multiple gear ranges ensures smooth operation across various terrains.
  • Axles: Equipped with four axles (two driving axles) to distribute weight evenly and maintain balance on uneven ground.
  • Tire Type: Large, rugged tires (14.00-24) designed for maximum traction and durability on rough and soft ground.

Safety Features:

  • Load Moment Limiter (LML): Ensures that the crane operates within safe load limits to avoid overloading.
  • Hydraulic Anti-Two Block System: Prevents the boom from moving too far and interfering with the winch, avoiding damage to the crane.
  • Outrigger Monitoring System: Monitors the position of the outriggers, providing feedback to ensure proper stabilization during lifting.
  • Operator Warning System: Alerts the operator to any unsafe operating conditions, such as overloads or improper boom angles.
  • Emergency Stop System: Allows the operator to quickly shut down the crane in case of an emergency.

    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
