General Specifications:

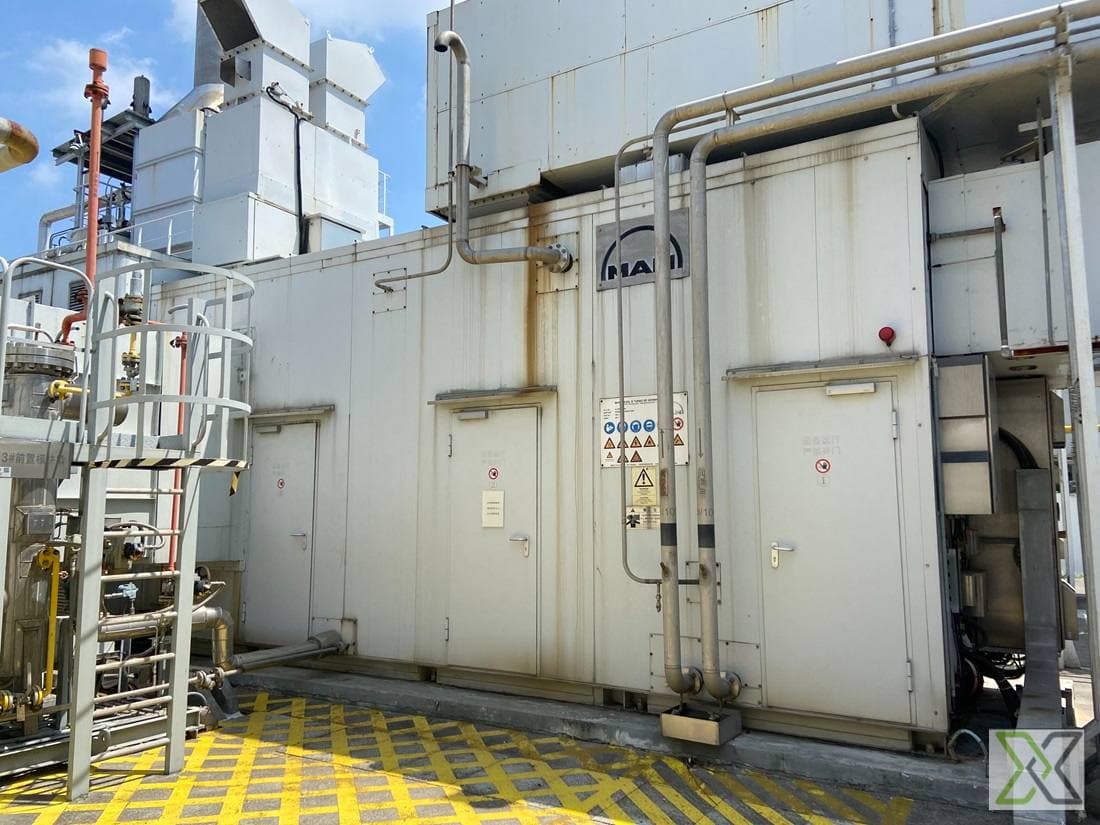

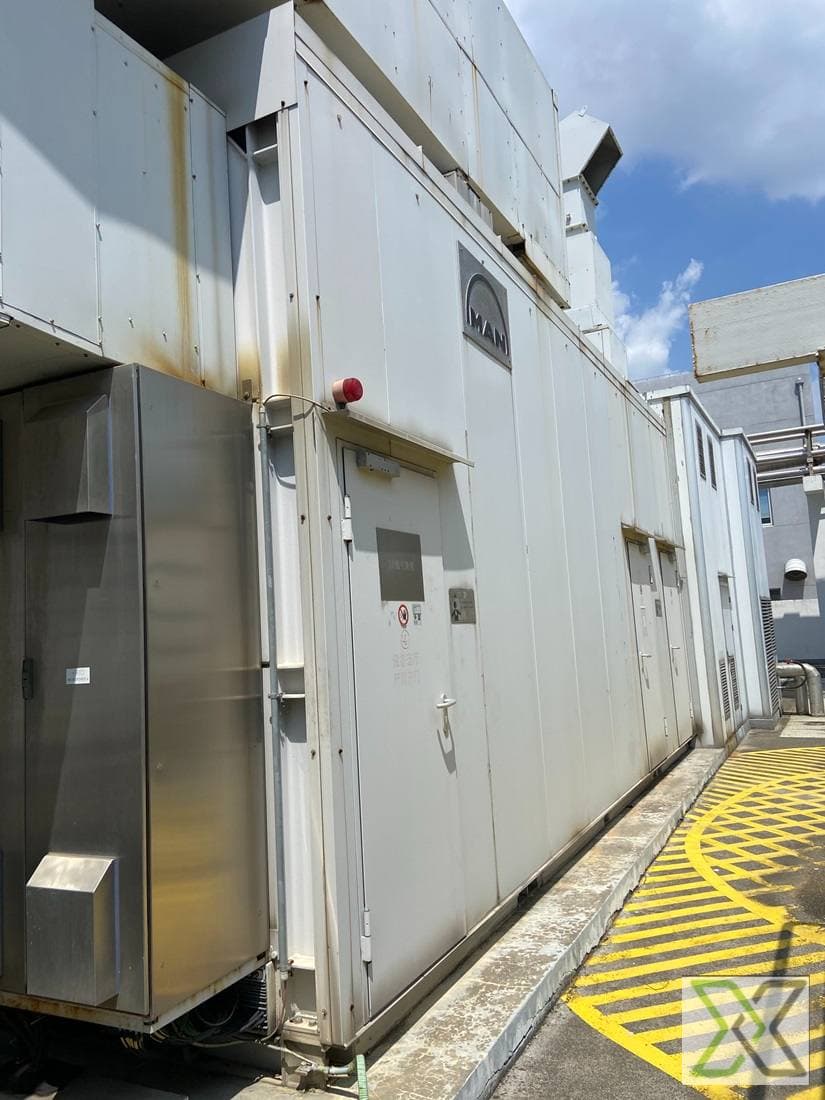

• Model: MAN MGT 6000 Gas Turbine
• Year: 2023
• Fuel Type: Natural gas (with flexibility for alternative fuels such as biogas, diesel, or kerosene)
• Application: Power generation, combined heat and power (CHP), and industrial applications
• Design Type: Industrial gas turbine (single-shaft design)

Performance Specifications:

• Electrical Output:
  • Up to 60 MW in simple cycle operation
  • Up to 110 MW in combined cycle operation when paired with a steam turbine
• Efficiency:
  • Simple Cycle Efficiency: Approximately 38-40%
  • Combined Cycle Efficiency: Can exceed 60% when used with combined cycle technology
• Heat Rate:
  • Simple Cycle Heat Rate: Between 8,800 - 9,200 kJ/kWh
  • Combined Cycle Heat Rate: Approximately 6,200 - 6,500 kJ/kWh
• Exhaust Temperature:
  • 450 - 550°C at full load (depending on the load and operational conditions)

Operational Specifications:

Ambient Temperature Range:

• Operates effectively in ambient temperatures ranging from -30°C to 50°C, with optional upgrades for extreme climates

Start-up Time:

• Fast start-up time: Approximately 10-15 minutes for quick power output, depending on operational conditions

Load Response Time:

• Fast load response with the capability to adapt quickly to varying power demand, ensuring stable grid integration

Run Time at Full Load:

• Designed for continuous 24/7 operation with extended intervals between overhauls and routine maintenance

Engine Design and Features:

Compressor:

• Multi-stage axial-flow compressor for higher pressure ratio and enhanced efficiency

Combustion System:

• Advanced dry low emissions (DLE) combustion technology for ultra-low NOx emissions (typically <25 ppm at 15% O2), ensuring compliance with international environmental standards

Turbine:

• High-efficiency two-stage axial-flow turbine, designed for optimum performance across a wide range of loads

Cooling System:

• Advanced cooling technology, utilizing a combination of air-cooled and water-cooled options to ensure optimal performance even at high load conditions

Emissions and Environmental Impact:

• NOx Emissions:
  • Ultra-low NOx emissions, typically <25 ppm at 15% O2
• CO Emissions:
  • CO emissions maintained below 50 ppm at 15% O2
• Particulate Matter:
  • Designed for minimal particulate matter emissions, making it suitable for urban and environmentally sensitive areas

Control and Monitoring Systems:

• Control System:
  • The turbine is equipped with a digital control system for precise performance management, featuring real-time monitoring and diagnostics
• Safety Features:
  • Built-in safety sensors and shutdown systems for over-speed, over-temperature, vibration, and oil pressure
• Remote Monitoring:
  • Equipped with capabilities for remote monitoring and diagnostics, enabling real-time analysis and predictive maintenance
• Load Sharing:
  • Capable of load sharing in grid-connected setups, allowing for efficient power distribution in multi-unit operations

Physical Specifications:

• Dimensions (approx.):
  • Length: 12.5 meters (41 feet)
  • Width: 3.8 meters (12.5 feet)
  • Height: 4.5 meters (14.8 feet)
• Weight (approx.):
  • The total weight is around 85,000 - 90,000 kg depending on specific configurations and auxiliary systems
• Exhaust Stack Dimensions:
  • Diameter: 1.5 - 2 meters (depending on installation requirements)
  • Height: Typically 15 - 20 meters for optimal dispersion of exhaust gases

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
