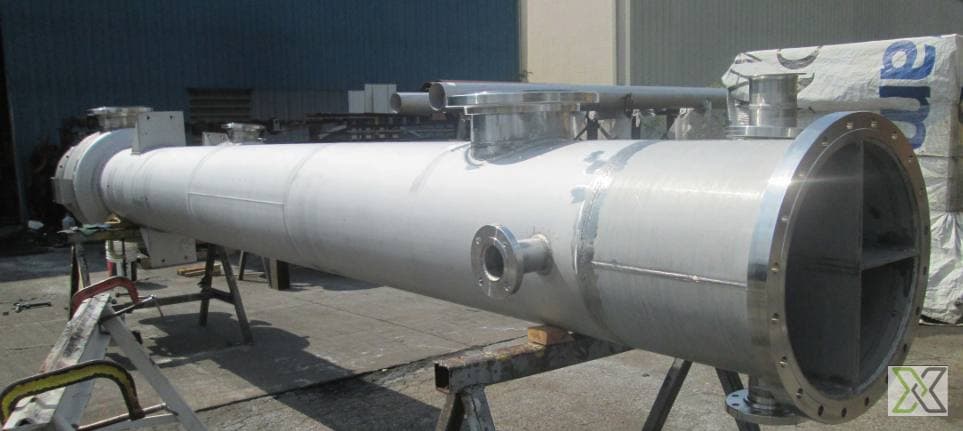

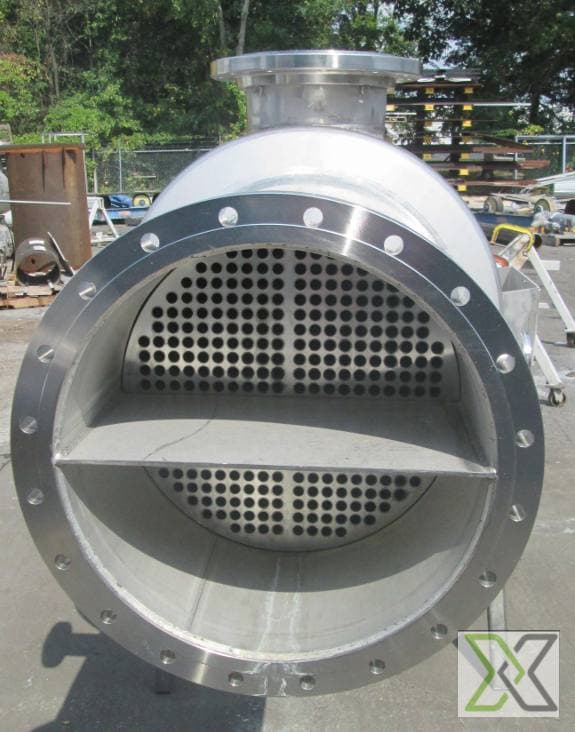

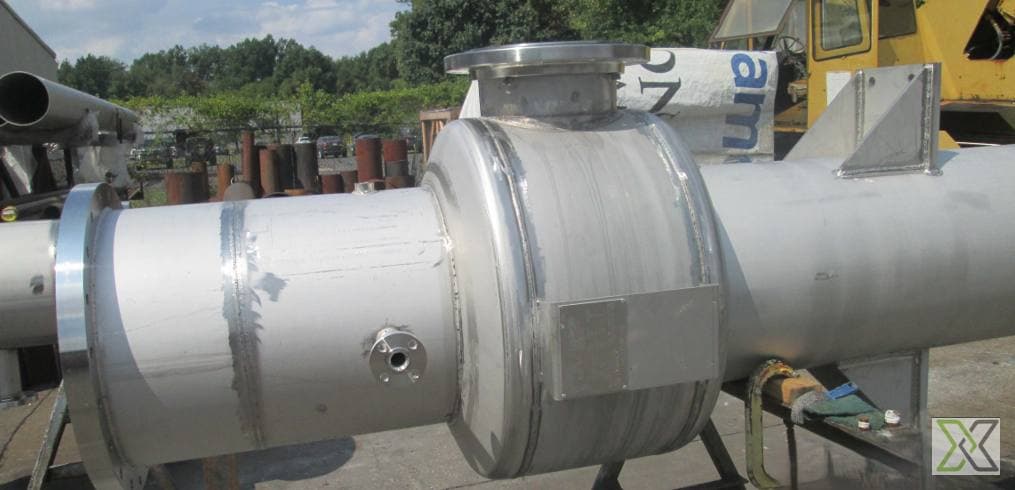

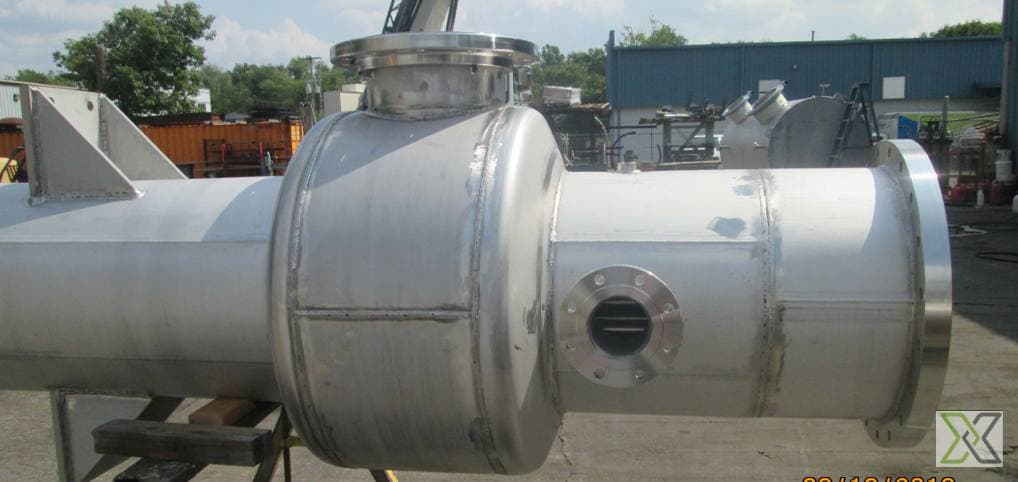

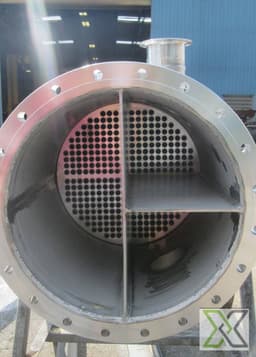

Heat Exchanger Pair - Vertical 22” & 20” Dia., 304-LSS, Full Vacuum, ASME Code, CRN Registered (2019)

Heat Exchanger Pair - Vertical 22” & 20”

ReflowX SKU: REF-2826

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United States
  • Condition

    SURPLUS

  • OEM
    ReflowX
  • Equipment code
    CFIHOS-30000390
  • Total Price
  • Per Unit Price
    $22,000
Chat With Seller

Description

Heat Exchanger Specifications

Heat Exchanger Type:

  • Vertical Type NEN with vapor inside the shell.

Dimensions:

Heat Exchanger 1:

  • Shell Diameter: 22 inches (558.8 mm)
  • Heat Transfer Area: 122.1 m² (1314 ft²)

Heat Exchanger 2:

  • Shell Diameter: 20 inches (508 mm)
  • Heat Transfer Area: 57.6 m² (620 ft²)

Materials of Construction:

  • Condensers: Made from 304-L Stainless Steel (304-LSS) throughout, providing excellent resistance to corrosion.
  • Tubes:
    • Material: 304L Stainless Steel (304-LSS).
    • Tube Dimensions: 0.75-inch diameter (19.05 mm), with a wall thickness of 0.049 inches (1.24 mm).

Mechanical Design:

Shell Side (Condenser Side):

  • Design Pressure: Full Vacuum and 1 bar G (14.5 psig) at 150°C (302°F).
  • Application: Suitable for handling full vacuum conditions on the shell side while maintaining 1 bar of pressure, ensuring that the condenser operates under a wide range of pressure conditions in industrial processes.

Tube Side:

  • Design Pressure: Full Vacuum and 6 bar G (87 psig) at 150°C (302°F).
  • Application: The tubeside can withstand full vacuum conditions and up to 6 bar (87 psig) pressure at the specified temperature, making it suitable for fluid or gas processing applications under high pressures.

Standards and Compliance:

  • Design Standards: These heat exchangers are built in accordance with TEMA C standards (Tubular Exchanger Manufacturers Association), which ensures they meet industrial guidelines for heat exchangers used in various processes.
  • Code Compliance: Built according to the ASME Code, ensuring the heat exchanger meets recognized safety and performance standards. An ASME Stamp is included, indicating that it has passed inspection and meets regulatory standards.
  • CRN Registry: The heat exchangers are registered with the Canadian Registration Number (CRN), ensuring they meet Canadian safety and regulatory requirements for pressure equipment.

Summary of Key Differences:

FeatureHeat Exchanger 1Heat Exchanger 2
Shell Diameter22 inches (558.8 mm)20 inches (508 mm)
Heat Transfer Area122.1 m² (1314 ft²)57.6 m² (620 ft²)
Tubes304-LSS, 0.75-inch diameter, 0.049-inch wall304-LSS, 0.75-inch diameter, 0.049-inch wall
Shell Pressure RatingFull Vacuum, 1 bar G (14.5 psig) at 150°CFull Vacuum, 1 bar G (14.5 psig) at 150°C
Tube Pressure RatingFull Vacuum, 6 bar G (87 psig) at 150°CFull Vacuum, 6 bar G (87 psig) at 150°C
Heat Exchanger TypeVertical Type NEN (vapor in shell)Vertical Type NEN (vapor in shell)
ComplianceTEMA C, ASME Code, CRN RegisteredTEMA C, ASME Code, CRN Registered

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
