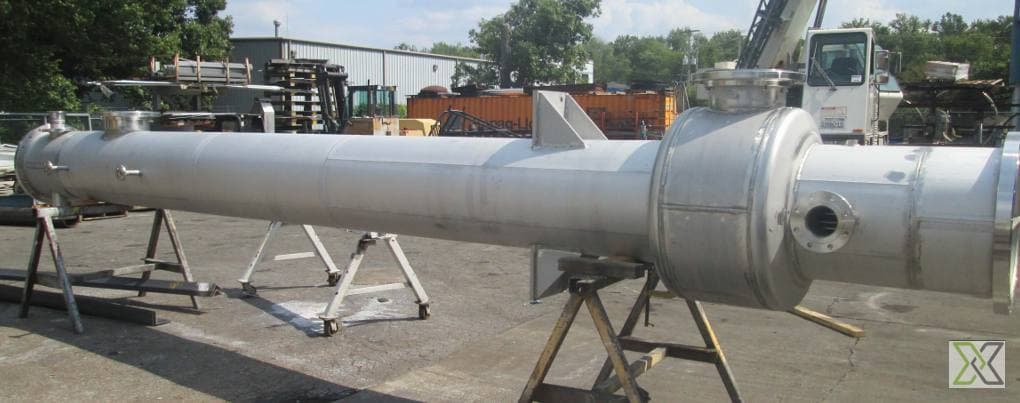

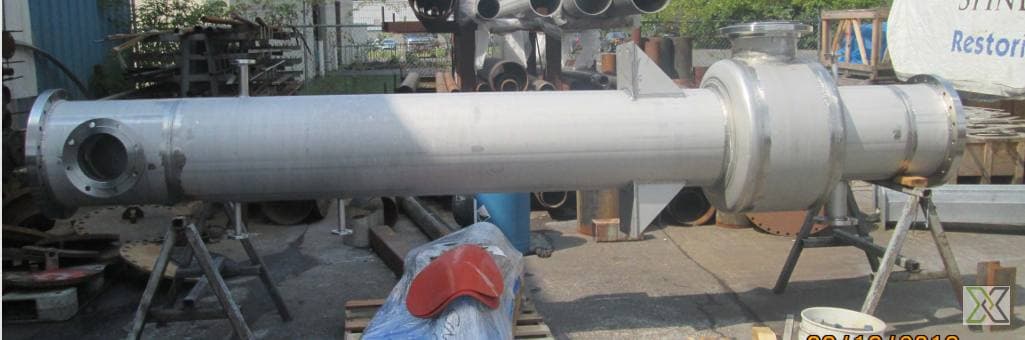

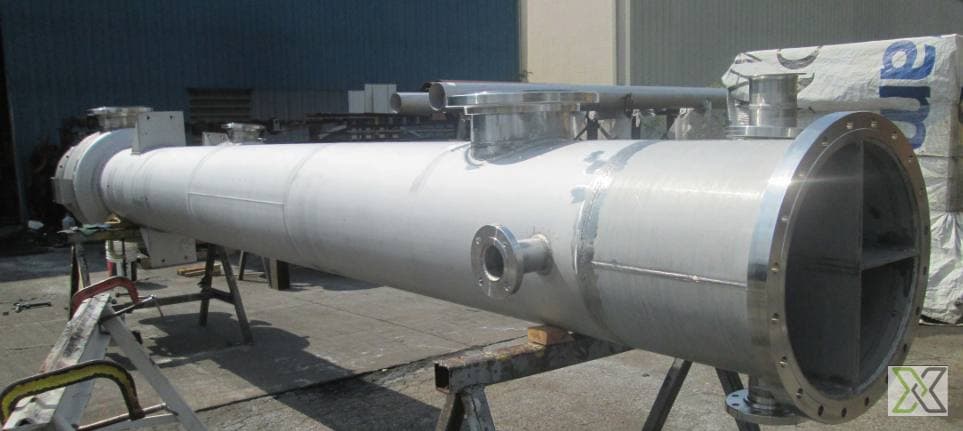

Vertical Heat Exchanger 20” Dia., 57.6 m², 304-LSS, Full Vacuum, 1 Bar G, ASME Code, CRN Registered (2019)

Vertical Heat Exchanger -20” - 2019

ReflowX SKU: REF-8517

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United States
  • Condition

    SURPLUS

  • OEM
    ReflowX
  • Equipment code
    CFIHOS-30000390
  • Total Price
  • Per Unit Price
    $11,000
Chat With Seller

Description

Heat Exchanger 2:

Specifications:

Type:

  • Vertical Type NEN with vapor in the shell.

Dimensions:

  • Shell Diameter: 20 inches (508 mm).
  • Heat Transfer Area: 57.6 m² (620 ft²).

Materials of Construction:

  • Condenser: 304-L Stainless Steel (304-LSS) throughout.

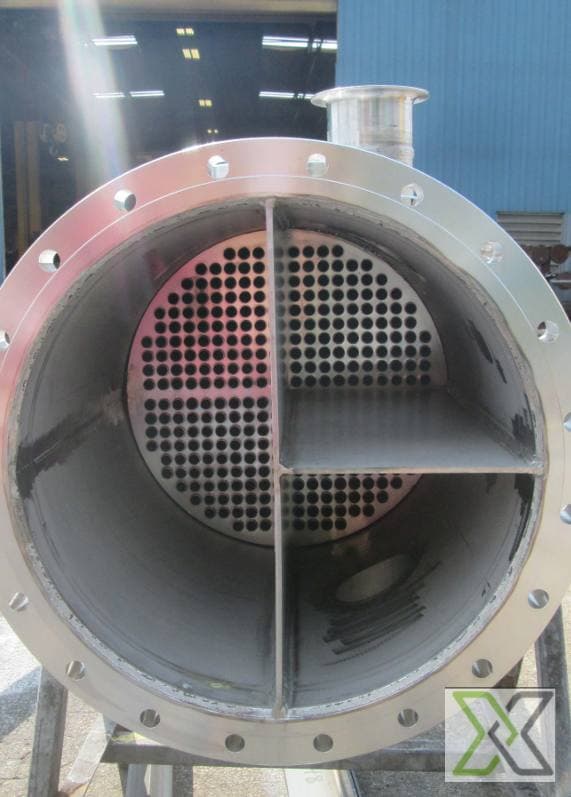

  • Tubes: 304-L Stainless Steel (304-LSS).
  • Tube Dimensions: 0.75-inch diameter (19.05 mm) with 0.049-inch wall thickness (1.24 mm).

Mechanical Design:

  • Shell Side (Precondenser):
    • Pressure: Full Vacuum and 1 bar G (14.5 psig) at 150°C (302°F).
    • Suitable for applications where the shell side operates under full vacuum conditions and a 1 bar pressure.
  • Tube Side:
    • Pressure: Full Vacuum and 6 bar G (87 psig) at 150°C (302°F).
    • Designed to handle up to 6 bar of pressure on the tube side.

Standards and Compliance:

  • Constructed in accordance with TEMA C standards (standard for tubular heat exchangers).
  • Built in compliance with ASME Code, ASME Stamp included for official certification.
  • Registered with the CRN (Canadian Registration Number), indicating compliance with Canadian safety standards for pressure equipment.

Standards and Compliance:

  • Design Standards: These heat exchangers are built in accordance with TEMA C standards (Tubular Exchanger Manufacturers Association), which ensures they meet industrial guidelines for heat exchangers used in various processes.
  • Code Compliance: Built according to the ASME Code, ensuring the heat exchanger meets recognized safety and performance standards. An ASME Stamp is included, indicating that it has passed inspection and meets regulatory standards.
  • CRN Registry: The heat exchangers are registered with the Canadian Registration Number (CRN), ensuring they meet Canadian safety and regulatory requirements for pressure equipment.

    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
