904L Stainless Steel Pipe – High Nickel & Molybdenum Alloy, Extreme Corrosion Resistance | KCM

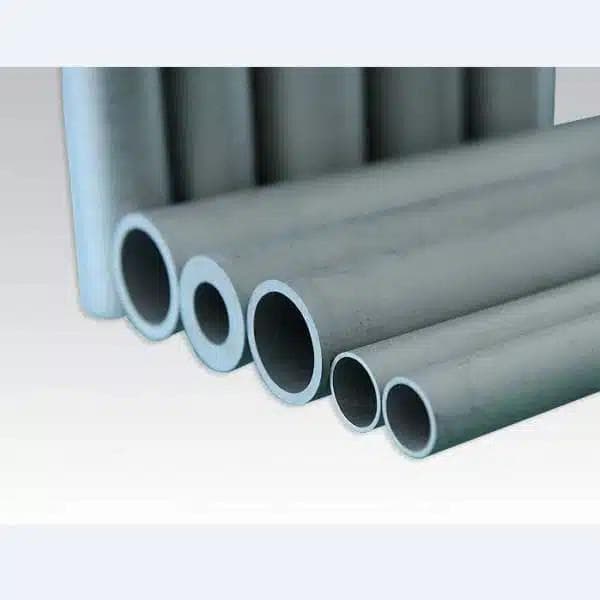

The 904L Stainless Steel Pipe by KCM is a high-performance piping solution engineered for extreme corrosion resistance and mechanical reliability in the harshest industrial conditions. Alloyed with 25% nickel, 4.5% molybdenum, and 1.5% copper, 904L exhibits outstanding resistance to sulfuric acid, hydrochloric acid, and stress corrosion cracking, making it ideal for chemical processing, marine, gas scrubbing, and pharmaceutical applications.

Unlike standard austenitic stainless steels (304/316), 904L offers superior resistance to pitting, crevice corrosion, and intergranular attack in chloride-rich environments. It is non-magnetic in all conditions, ensuring stability and performance in critical systems.

Manufactured to precise tolerances and available in seamless and welded forms, KCM’s 904L pipe ensures leak-proof, durable fluid conveyance over long service periods with minimal maintenance.

Specifications:

– Material Grade: 904L (UNS N08904 / 1.4539) – High Alloy Austenitic Stainless Steel
– Outer Diameter Range: 6 mm to 630 mm (1/8” to 24”)
– Wall Thickness: SCH 5 to SCH XXS / 0.5 mm to 30 mm
– Manufacturing Types: Seamless (ASTM A312), Welded (ERW/SAW)
– Standards Compliance: ASTM A312 / A213 / A269, EN 10216-5
– Finish Options: Annealed & Pickled, Bright Annealed, Polished (180–600 grit)
– End Connections: Plain End, Beveled End, Threaded (BSP/NPT)
– Chemical Composition (Typical):
 – Nickel (Ni): 23–28%
 – Chromium (Cr): 19–23%
 – Molybdenum (Mo): 4–5%
 – Copper (Cu): 1–2%
– Temperature Resistance: Up to 450°C continuous service
– Corrosion Resistance: Excellent in strong reducing acids (H₂SO₄), chlorides, and halides
– Mechanical Properties:
 – Tensile Strength: ≥ 490 MPa
 – Yield Strength: ≥ 220 MPa
 – Elongation: ≥ 35%
– Non-Magnetic: Yes
