Caterpillar XQ1475G Gas Power Module Specifications | Efficient Gas Power Generation

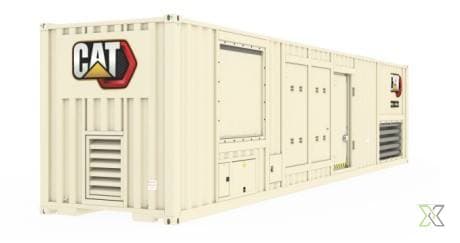

CATERPILLAR XQ1475G Gas Power Module

ReflowX SKU: REF-7413

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    Germany
  • Condition
  • OEM
    ReflowX
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $836,000
Chat With Seller

Description

Caterpillar XQ1475G Gas Power Module Specifications:

General Specifications:

  • Model: Caterpillar XQ1475G Gas Power Module
  • Year: Typically available in newer models (2015 and onward)
  • Engine Type: 16-cylinder, Turbocharged, Intercooled, 4-stroke
  • Engine Model: Caterpillar G3516C
  • Fuel Type: Natural Gas, with optional dual-fuel capabilities
  • Cooling System: Water-cooled, closed-loop system
  • Governor: Electronic

Performance Data:

  • Power Output:
    • Prime Power: 1,475 kW (1,968 kVA)
    • Standby Power: 1,625 kW (2,125 kVA)
  • Speed: 1,500 RPM (50 Hz) / 1,800 RPM (60 Hz)
  • Efficiency:
    • Fuel Efficiency: Approx. 0.38 m³/kWh at full load (for natural gas)
    • Thermal Efficiency: Up to 35-40% depending on load and operating conditions
    • Heat Rate: Approx. 9,000–9,400 Btu/kWh

Emissions Compliance:

  • Emissions Standards: Meets EPA Tier 4 Final and EU Stage V emissions standards for gas engines
  • NOx: Typically <0.5 g/kWh (depending on load and fuel quality)
  • CO: Around <1.0 g/kWh at full load
  • UHC (Unburned Hydrocarbons): Meets low emissions standards

Alternator and Electrical System:

  • Alternator Type: Brushless, self-excited alternator (typically coupled with the engine)
  • Voltage: 400V, 480V, or customer-specific voltage options
  • Frequency: 50 Hz (typically for European markets), 60 Hz (for North America)
  • Power Factor: 0.8 lagging (standard for most industrial generator sets)
  • Protection: Overload, short circuit, and generator fault protection
  • Voltage Regulation: +/- 1% of rated voltage

Dimensions and Weight:

  • Length: Approx. 6,900 mm (271 inches)
  • Width: Approx. 2,400 mm (94 inches)
  • Height: Approx. 2,700 mm (106 inches)
  • Weight: Approx. 18,000 kg (39,683 lbs), varies with configuration

Fuel System:

  • Fuel Type: Natural Gas, with optional Dual Fuel configuration
  • Fuel Consumption: Approx. 0.38 m³/kWh at full load (for natural gas)
  • Fuel Tank Capacity: Typically external, depending on configuration, and can provide extended runtime for off-grid operation
  • Fuel Pressure: Approx. 0.4–1.0 bar (5.8–14.5 psi)

Cooling and Exhaust:

  • Cooling Method: Water-cooled with integrated heat exchangers and radiators
  • Exhaust Temperature: Approx. 480°C (896°F) at full load
  • Exhaust Back Pressure: Low exhaust back pressure for optimized engine performance
  • Exhaust System: Includes a muffler and optional exhaust after-treatment for enhanced emissions control

Control and Monitoring:

  • Control Panel: Caterpillar EMCP 4.4 control panel for full monitoring, diagnostics, and control of engine and generator performance
  • Alarm Systems: Visual and audible alarms for low oil pressure, high temperature, overcurrent, and more
  • Remote Monitoring: Optional remote monitoring options for performance tracking, diagnostics, and maintenance alerts
  • Startup/Shutdown: Fully automated start/stop system with manual override

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
