General Specifications:

• Model: ABB Solar Titan130 Generator
• Year: 2018
• Manufacturer: ABB Group
• Type: Diesel Generator with Solar Integration
• Power Output:
  • Prime Power Rating: 130 kW (170 hp)
  • Standby Power Rating: 143 kW (191 hp)
• Fuel Type: Diesel
• Application: Off-grid power systems, backup power, hybrid renewable energy systems, and industrial/remote locations
• Configuration: Hybrid system with solar integration for fuel savings and sustainability
• Cooling System: Radiator-cooled system

Engine Specifications:

• Engine Model: Cummins QSB7
• Engine Type: Inline 6-cylinder, turbocharged and aftercooled diesel engine
• Engine Speed: 1,500 RPM (50Hz) or 1,800 RPM (60Hz)
• Fuel Consumption (Approx.):
  • At 100% Load: 30.5 liters per hour (8.1 gallons per hour)
  • At 75% Load: 22.9 liters per hour (6.1 gallons per hour)
• Governor: Electronic governing system
• Compression Ratio: 17.0:1
• Emissions Standard: Meets EPA Tier 3 and EU Stage IIIA for industrial and off-highway applications

Solar Integration:

• Solar Power Capacity: 30-50 kW (depending on solar panel configuration and location)
• Hybrid Power System: Combines diesel power with solar energy to reduce fuel consumption and carbon emissions
• Solar Charging Control: Integrated controller to manage the interaction between the solar system and the diesel generator for optimal performance
• Energy Storage (Optional): Compatible with battery storage systems to maximize the use of solar energy and minimize reliance on the diesel engine

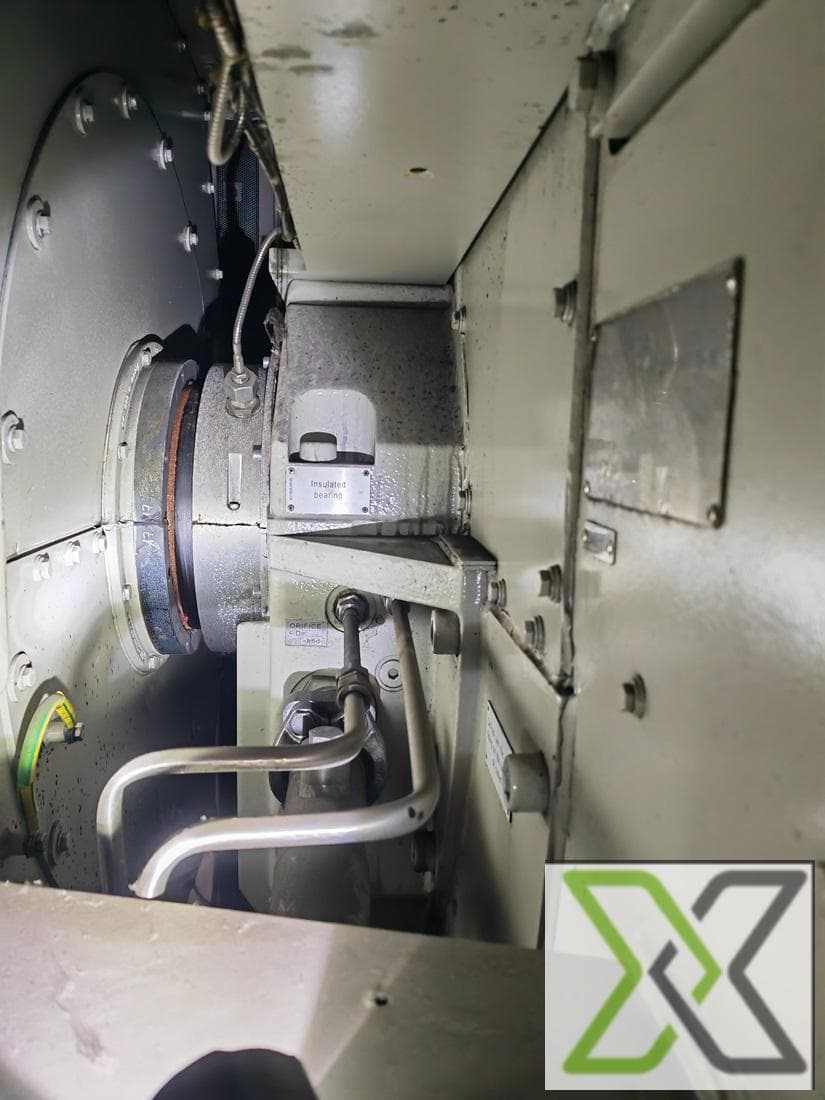

Alternator Specifications:

• Alternator Model: Stamford or Leroy-Somer, Brushless, Permanent Magnet Excited
• Voltage Output: 400V (3-phase, 50Hz), 480V (3-phase, 60Hz) – customizable for specific applications
• Power Factor: 0.8 (lagging)
• Insulation Class: H (for enhanced durability and heat resistance)
• Protection Class: IP23 for outdoor installations
• Efficiency: ≥ 95%

Control System:

• Controller Model: ABB IntelliGen™ or similar advanced digital controller
• Control Features:
  • Remote Monitoring: Web-based remote monitoring for real-time status, fuel consumption, and performance tracking
  • Automatic Start/Stop: Automatically starts and stops based on power demand
  • Load Sharing and Paralleling: Allows operation in parallel with other generators and power sources
  • Diagnostics and Alarms: Real-time diagnostics with alarms for critical conditions (e.g., low oil pressure, high temperature)
  • Data Logging: Logs key performance data for analysis and maintenance scheduling
  • Multiple Language Support: Controller can be configured for different languages depending on location

Cooling and Ventilation:

Cooling Method: Closed-loop radiator cooling system with seawater or freshwater heat exchanger

Ambient Temperature Range: Designed to operate efficiently in ambient temperatures from -5°C to 50°C (23°F to 122°F)

Cooling Capacity: Approximately 90-100 kW (depends on operating conditions)

Ventilation: Integrated with a high-efficiency cooling fan for optimal airflow in the engine compartment

Physical Specifications:

Dimensions (L x W x H):

• Length: 3.0 meters (9.8 feet)
• Width: 1.5 meters (5.0 feet)
• Height: 2.0 meters (6.6 feet)

Weight: Approx. 2,500 - 3,000 kg (5,500 - 6,600 lbs), depending on the configuration and added components

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
