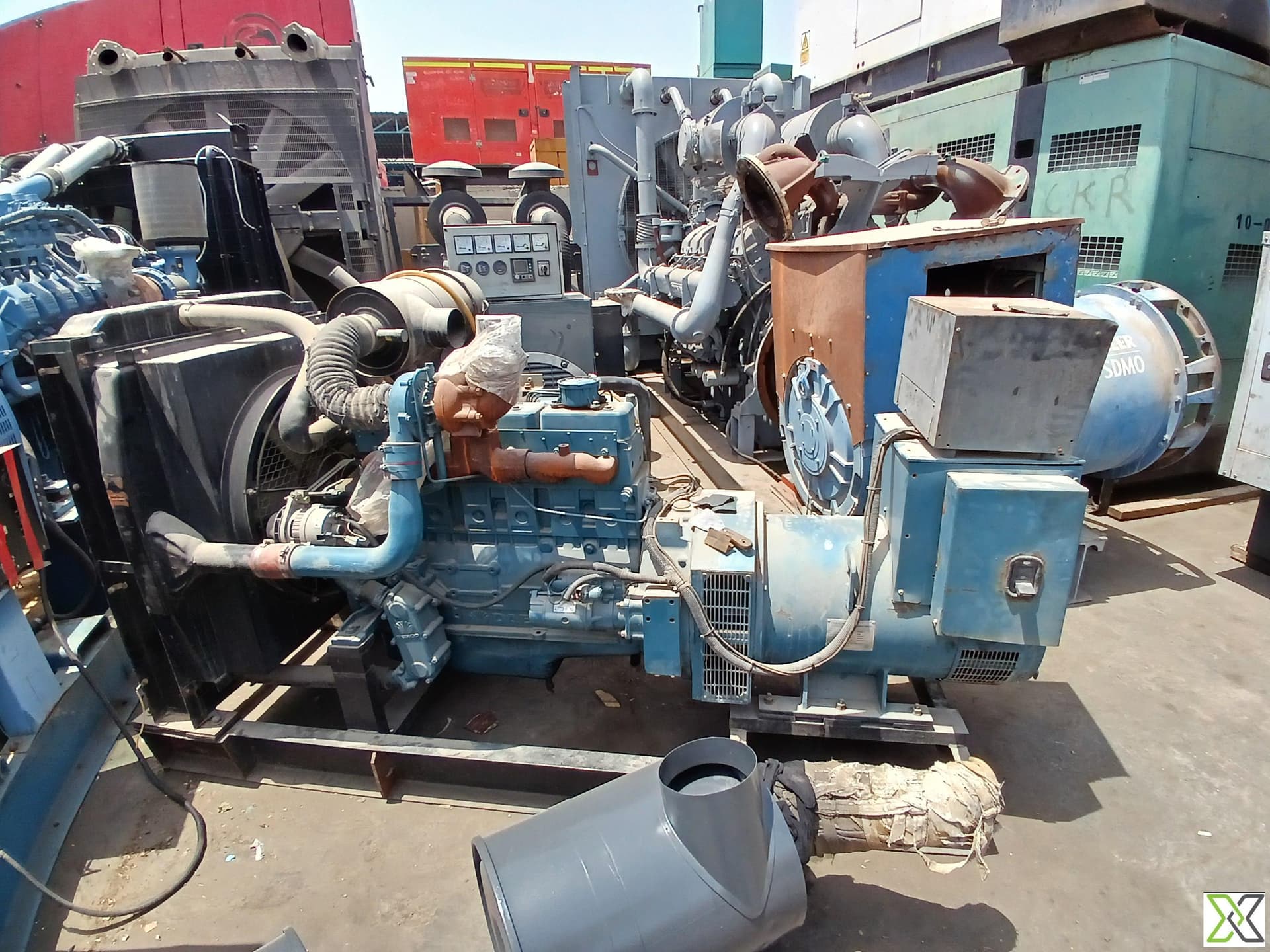

FARADAY GENERATOR SET — MODEL FD3E1-4

ReflowX SKU: REF-3566

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

WUXI FARADAY ALTERNATORS LTD
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

Faraday Generator Set Power (kVA): 187.5 Type: FD3E1-4

Description

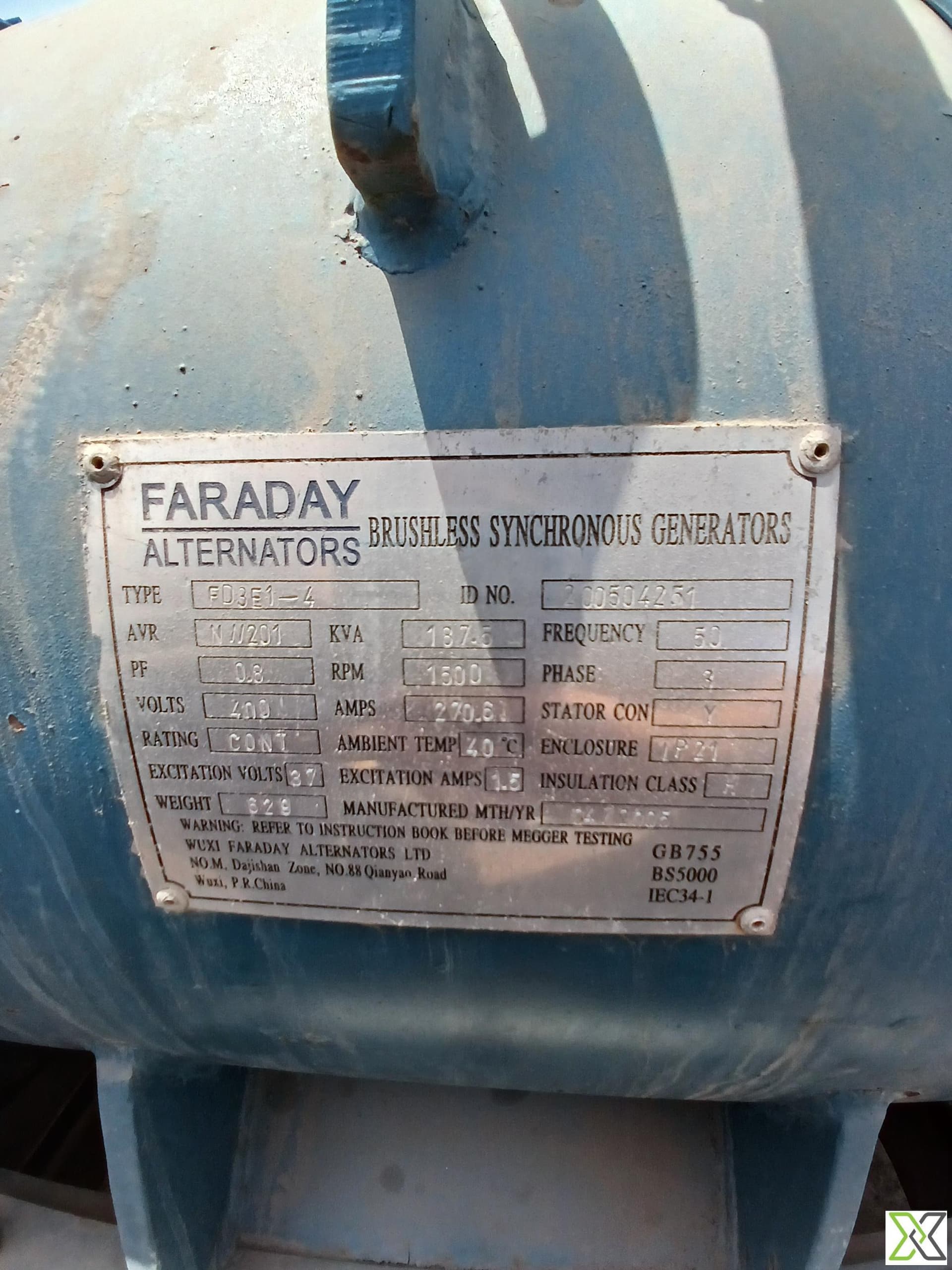

ELECTRICAL PERFORMANCE

Rated Power Output: 187.5 kVA

Power Factor: 0.8 (Lagging)

Rated Voltage: 400 V

Rated Current: 270.6 A

Rated Frequency: 50 Hz

Rated Speed: 1500 RPM

Phase Configuration: 3-Phase

Duty Rating: Continuous (CONT)

Excitation System: Brushless, self-excited

EXCITATION SPECIFICATIONS

Excitation Voltage: 32 V

Excitation Current: 1.8 A

Excitation Type: Likely PMG or self-excited via AVR (standard in FD3 series)

MECHANICAL & CONSTRUCTION DETAILS

Enclosure Protection: IP21

Insulation Class: F

Ambient Operating Temperature: 40°C

Cooling Method: Air-cooled (open drip-proof design)

Frame Construction: Rigid steel frame with foot mounting

Total Weight: 629 kg

DESIGN COMPLIANCE & STANDARDS

Applicable Standards:

GB755 (Chinese motor standard)

BS5000 (British Standard for rotating electrical machines)

IEC 34-1 (now IEC 60034-1 — Rotating electrical machines)

ADDITIONAL NOTES

Voltage Regulation: Typically ±1% with AVR (not explicitly listed on nameplate)

Winding Pitch: Likely 2/3 pitch to minimize harmonic distortion (standard for FD3E series)

Bearing Type: Single pre-lubricated bearing (sealed)

Terminal Arrangement: Standard terminal box with 6 leads (reconnectable for star/delta)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	1300 mm to 1500 mm
Width	800 mm to 1000 mm
Length	2100 mm to 2300 mm
Weight	1100 kg to 1400 kg
Temperature Range	–10°C to +50°C (standard configuration)
Pressure Rating	Cooling System Pressure: 1.0 – 1.4 bar
Voltage	400 V, 3-phase, 50 Hz 480 V, 3-phase, 60 Hz
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	Prime Power: 250 kVA / 200 kW
Speed	1500 RPM (for 50 Hz applications) 1800 RPM (for 60 Hz systems)
IFC Class	IfcElectricGeneratorType
