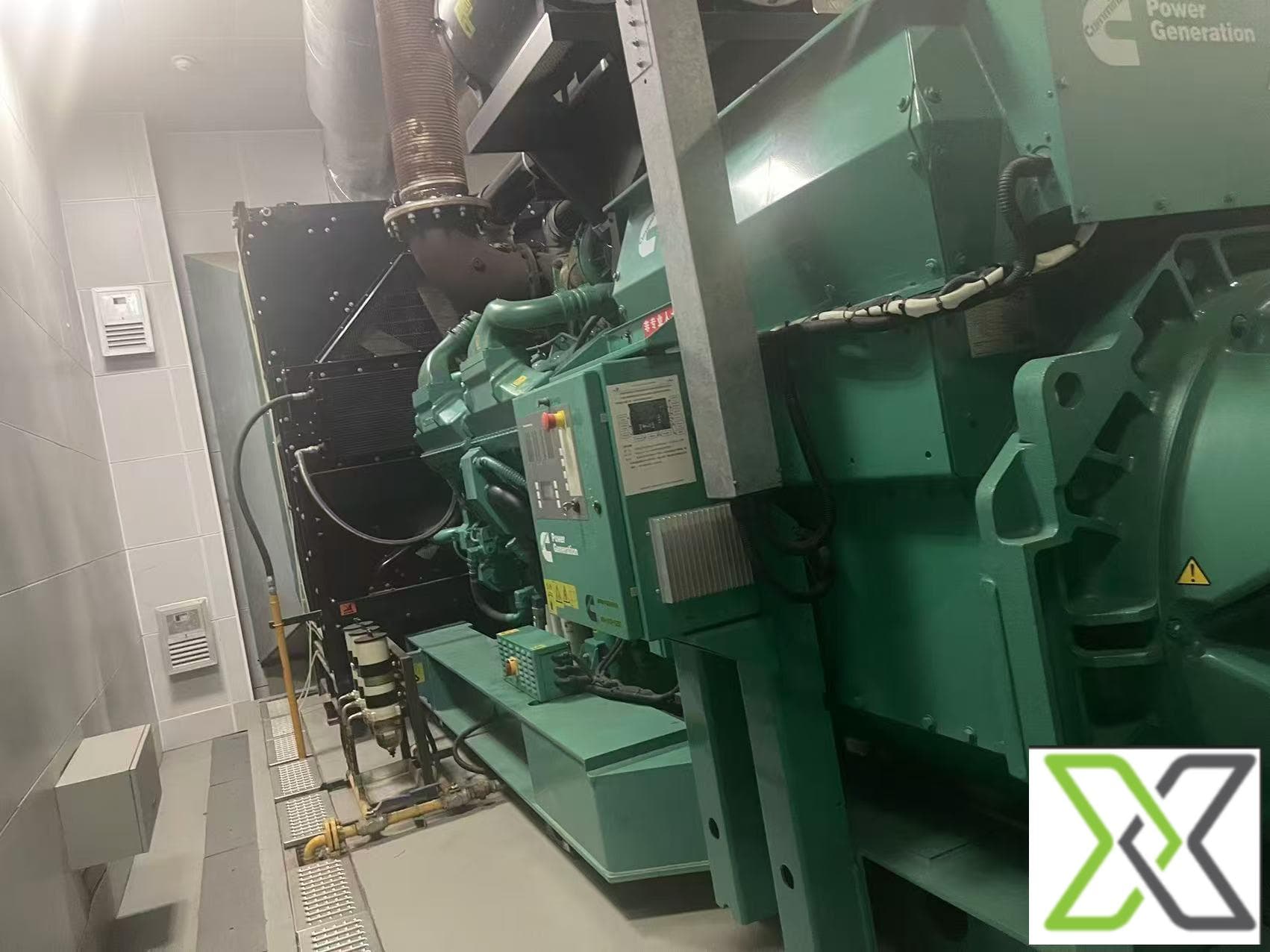

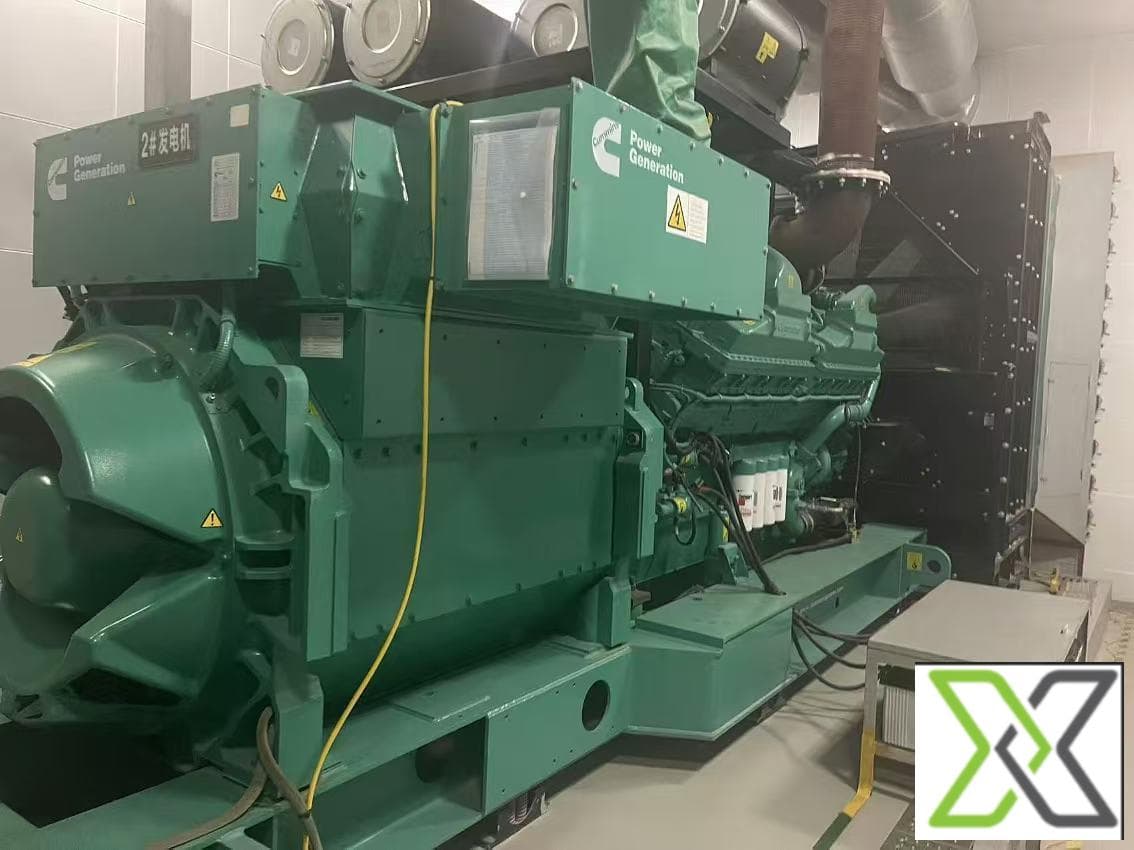

General Specifications:

• Model: CUMMINS C2500 D5A
• Year: 2016
• Manufacturer: Cummins Inc.
• Type: Diesel Generator Set
• Prime Power Rating: 2,500 kW (2.5 MW)
• Standby Power Rating: 2,750 kW (2.75 MW)
• Fuel Type: Diesel
• Engine Type: Cummins QSK60 engine
• Cooling Method: Radiator-cooled system
• Application: Critical backup power, prime power, and temporary power generation for industrial and commercial facilities

Engine Specifications:

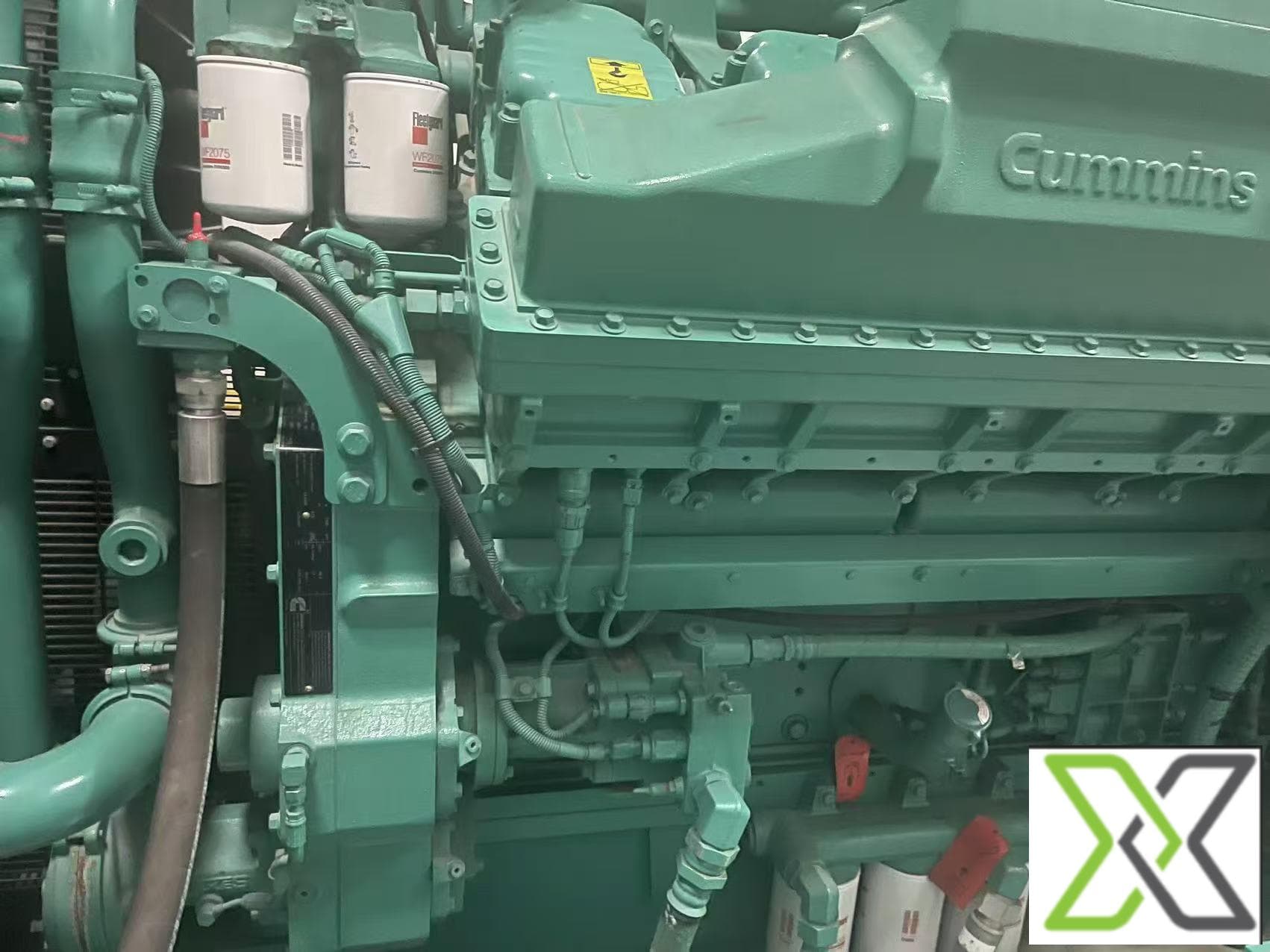

• Engine Model: Cummins QSK60
• Engine Type: Turbocharged, aftercooled, 60-liter, 16-cylinder, inline diesel engine
• Fuel System: Direct fuel injection with a common-rail fuel system for improved fuel efficiency and lower emissions
• Engine Speed: 1,800 RPM (at 60 Hz)
• Compression Ratio: 14.0:1
• Aspiration: Turbocharged and aftercooled
• Governor Type: Electronic governor for precise speed control and stability
• Emissions Standard: Meets EPA Tier 2, EU Stage IIIA, and other regional emissions standards

Performance Specifications:

• Prime Power Rating:
  • 2,500 kW (2.5 MW) at 1,800 RPM
  • Capable of continuous operation for an extended period
• Standby Power Rating:
  • 2,750 kW (2.75 MW) for emergency or backup operation, with a time limit of up to 500 hours/year
• Power Factor: 0.8 lagging
• Fuel Consumption (Approx.):
  • At 75% Load: 564.7 liters per hour (148.7 gallons per hour)
  • At 100% Load: 749.6 liters per hour (197.8 gallons per hour)

Alternator Specifications:

• Alternator Model: Cummins Stamford or similar high-efficiency alternator
• Voltage Output:
  • 480V, 3-phase, 60Hz
  • 380V, 50Hz available on request
• Frequency: 60 Hz (standard); 50 Hz available on special order
• Excitation Type: Brushless, permanent magnet
• Power Factor: 0.8 lagging
• Insulation Class: H Class for high temperature resilience and reliability
• Efficiency: >96% at rated load
• Protection: IP23, designed for outdoor installation and harsh environmental conditions

Control System:

• Control Panel: Cummins PowerCommand™ 3.3 or 3.4 controller with full digital control and monitoring capabilities
• Control Features:
  • Automatic Start/Stop: For remote or local start and stop operation
  • Load Share/Paralleling: Capable of operating in parallel with other generators for larger power systems
  • Remote Monitoring: Web-based monitoring for real-time performance tracking and diagnostics
  • Alarms and Diagnostics: Comprehensive system diagnostics with alarms for low oil pressure, high temperature, over-speed, and other critical parameters
  • Multiple Languages: Control panel can be configured in multiple languages for ease of operation in international markets

Cooling and Ventilation:

• Radiator Cooling System:
  • Radiator Type: Radiator and cooling system designed for outdoor installation
  • Ambient Temperature Range: Capable of operating in temperatures from -18°C to 50°C (0°F to 122°F)
  • Coolant Capacity: Approximately 300-400 liters (depends on exact model and configuration)
• Cooling Capacity: Designed to maintain optimal engine temperature during continuous operation at full load.

Physical Specifications:

Dimensions (L x W x H):

• Length: Approximately 9.5 meters (31.17 feet)
• Width: Approximately 2.5 meters (8.2 feet)
• Height: Approximately 3.5 meters (11.5 feet)

Weight: Approximately 25,000 - 30,000 kg (depending on configuration)

Exhaust System:

• Exhaust temperature: Approximately 500°C (varies with load)
• Exhaust manifold: Stainless steel construction for corrosion resistance
• Stack Configuration: Horizontal or vertical exhaust depending on installation requirements

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
