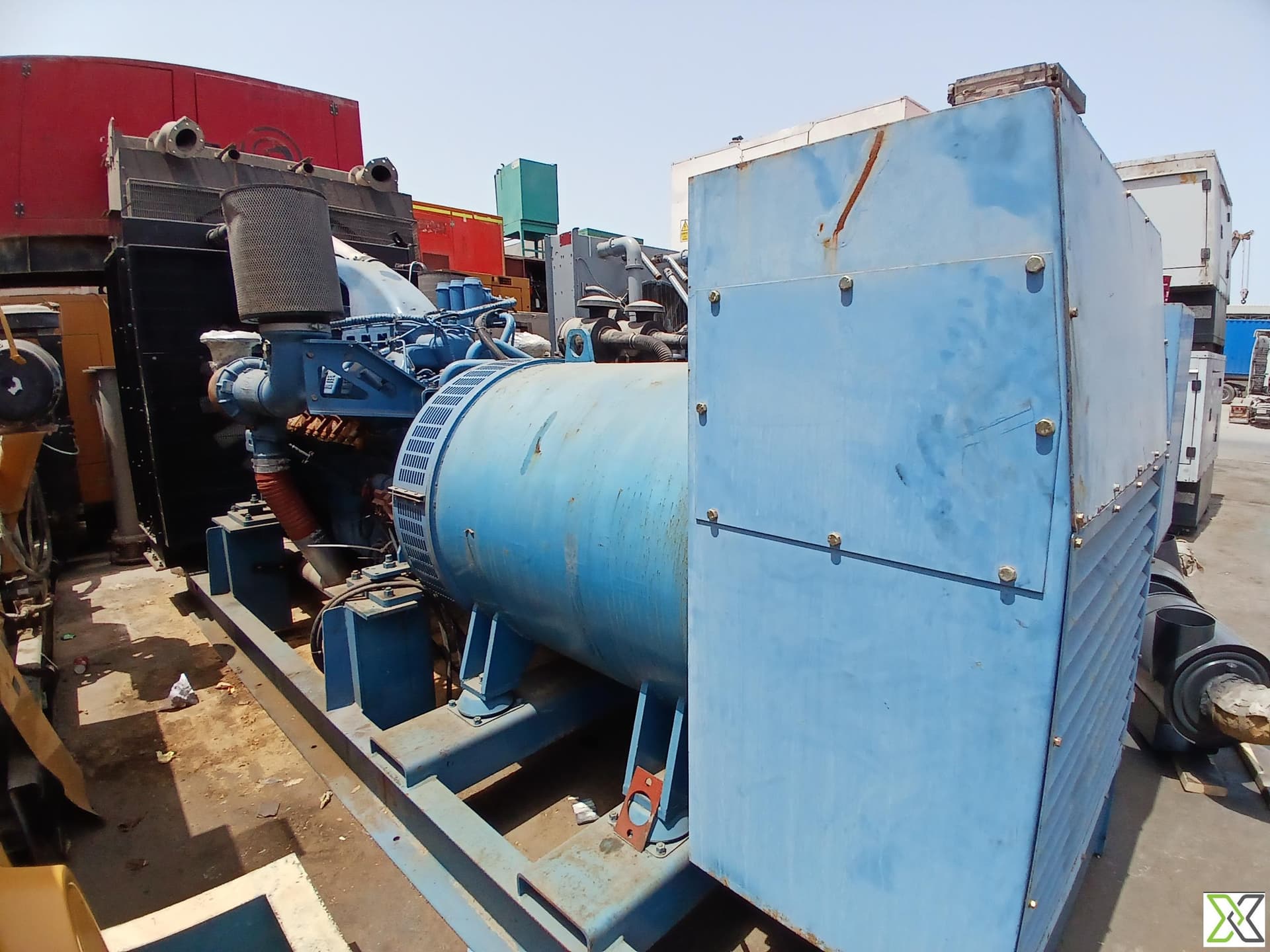

SYNCHRONOUS AC GENERATOR — CP-1000 (1000 kW)

ReflowX SKU: REF-375

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Coastal Power Inc., South Korea
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

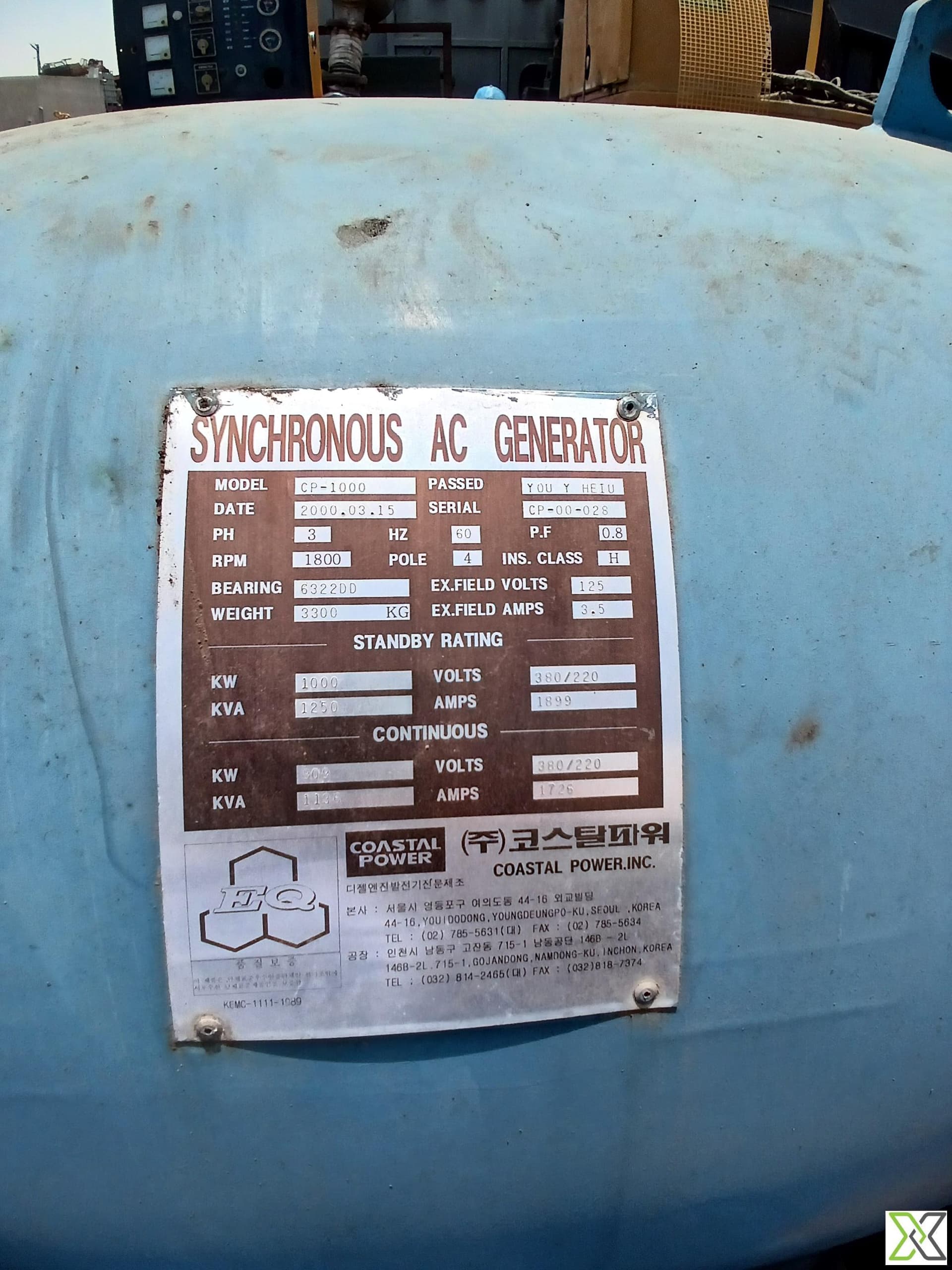

Manufacturer: Coastal Power Inc. Model: CP-1000 Country of Origin: South Korea Serial Number: CP-00-028 Date of Manufacture: 2000.03.15

Description

ELECTRICAL SPECIFICATIONS

Standby Rating

Rated Active Power (kW): 1000 kW

Apparent Power (kVA): 1250 kVA

Rated Voltage: 380/220V

Rated Current: 1899 Amps

Frequency: 60 Hz

Power Factor: 0.8 (lagging)

RPM: 1800

Poles: 4

Phase: 3-phase

Continuous (Prime) Rating

Rated Active Power (kW): 880 kW

Apparent Power (kVA): 1100 kVA

Rated Voltage: 380/220V

Rated Current: 1726 Amps

MECHANICAL SPECIFICATIONS

Speed: 1800 RPM

Poles: 4 (synchronous alternator at 60 Hz)

Bearing Type: 6322DD

Cooling Method: Air-cooled (self-ventilated via internal fan)

Mounting Arrangement: Horizontal foot-mounted

Shaft Configuration: Standard cylindrical shaft with keyway

Approximate Weight: 3300 kg

EXCITATION SYSTEM

Excitation Type: DC Excitation

Excitation Field Voltage: 125V

Excitation Field Current: 3.5 A

Voltage Regulation: Typically ±1% with appropriate AVR (model unspecified)

Regulation Type: Static or brushless excitation (field regulated)

INSULATION & PROTECTION

Insulation Class: H (for high thermal endurance)

Temperature Rise: Class H rise over 40°C ambient

Enclosure Rating: Standard open drip-proof or IP23 (based on setup)

Altitude: Rated for ≤ 1000 m; derating required above

Ambient Temp Limit: 40°C

GENERAL FEATURES

Design: Robust industrial-grade synchronous generator

Terminal Configuration: 6-lead or 12-lead terminal box (configurable)

Regulator: Compatible with standard AVR systems

Vibration Class: G2.5 (per ISO 1940)

Color & Finish: Industrial enamel-coated body (standard)

APPLICATION CONTEXT (TYPICAL)

Suitable for integration into diesel or gas engine generator sets

Used for standby or continuous industrial power generation

Compatible with control panels and power synchronization systems

Technical Details

Height	1800 mm to 2000 mm
Width	1200 mm to 1400 mm
Length	3000 mm to 3400 mm
Weight	3500 kg to 4200 kg
Temperature Range	Temperature Rise: Class F (per IEC 60034-1)
Voltage	Standard Voltages: 400 V / 3-phase / 50 Hz 480 V / 3-phase / 60 Hz
Color	Blue
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	Continuous Power Output: 1000 kW
Speed	1500 RPM (for 50 Hz systems) 1800 RPM (for 60 Hz systems)
IFC Class	IfcElectricGeneratorType
