General Specifications:

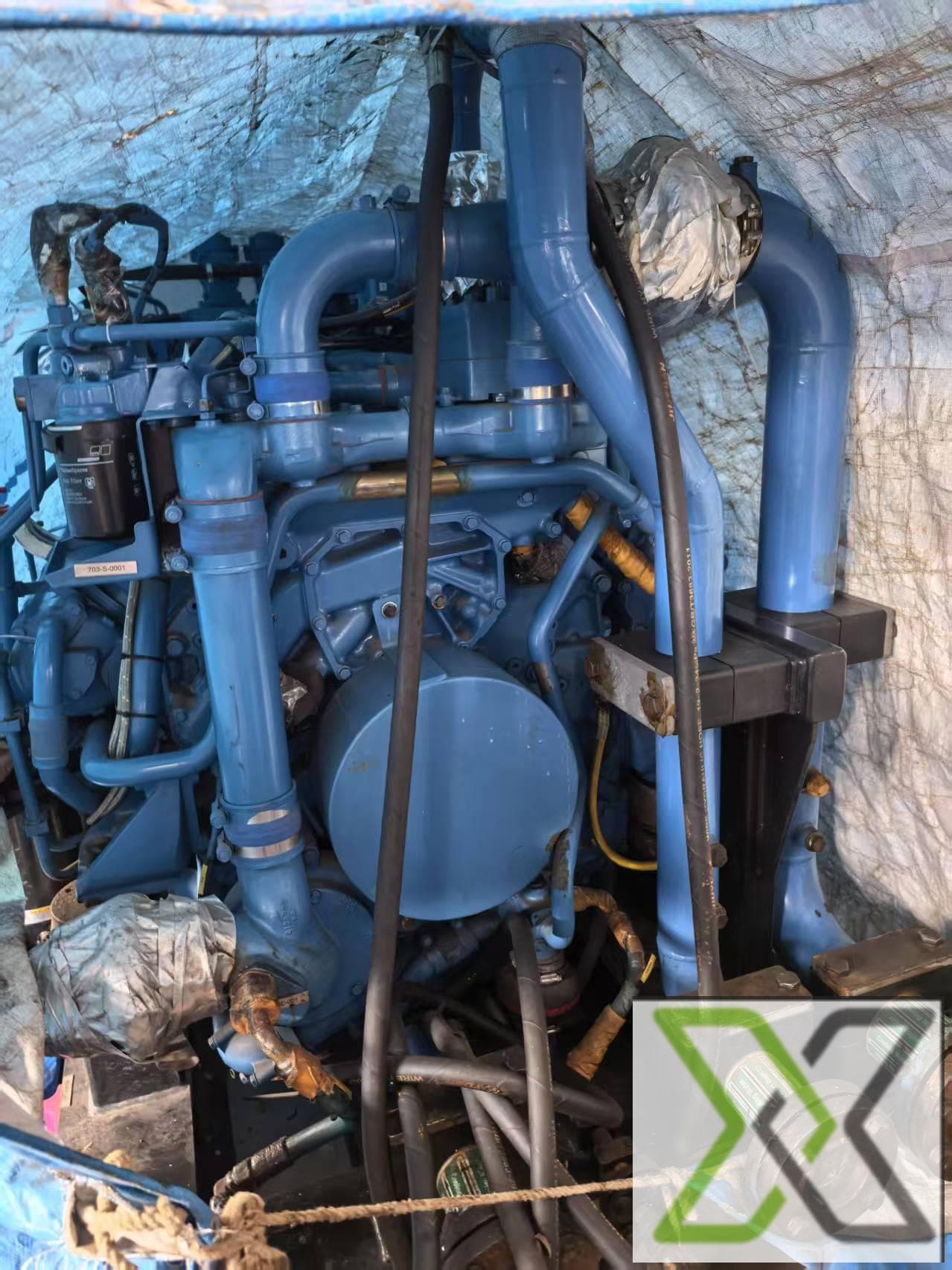

- Model: MTU 12V2000 P82L
- Year: 2015
- Manufacturer: MTU Friedrichshafen GmbH (part of Rolls-Royce Power Systems)
- Engine Type: 12-cylinder, V-type, diesel engine
- Application: Marine propulsion for yachts, commercial vessels, offshore platforms, and other maritime applications
- Configuration: V12 engine with turbocharging and intercooling
- Fuel Type: Diesel
- Cooling System: Freshwater-cooled with an intercooler and seawater heat exchanger for efficient cooling
- Fuel System: Common-rail direct fuel injection for enhanced fuel efficiency and reduced emissions
Performance Specifications:
Power Output:
- Maximum Output: 1,000 kW (1,340 hp) at 2,300 RPM
- Continuous Power: 920 kW (1,232 hp) at 2,100 RPM (dependent on load and operational conditions)
Engine Speed:
- Rated speed: 2,300 RPM
- Continuous operation speed: 2,100 RPM
Torque Output:
- Maximum Torque: Approximately 5,000 Nm at 1,500 RPM
- Continuous Torque: Approximately 4,600 Nm at 1,400 RPM
Compression Ratio: 16.5:1 (optimized for fuel efficiency and power)
Fuel Consumption:
- Fuel consumption at 100% load: Approximately 195 g/kWh (specific consumption varies depending on operational conditions)
Operational Features:
Turbocharging and Intercooling:
- The MTU 12V2000 P82L is equipped with a turbocharger and intercooler to increase engine efficiency, providing better performance and fuel consumption under different load conditions.
Engine Control and Monitoring:
- The engine is fitted with advanced electronic control systems for automatic speed regulation, load handling, and fuel efficiency.
- Integrated digital monitoring system for real-time performance tracking, diagnostics, and remote control.
Emission Compliance:
- Designed to meet the latest IMO Tier II emission standards for marine engines, ensuring reduced NOx and CO2 emissions.
Start-up:
- Fast start-up capability, typically requiring less than 10 minutes from a cold start to full load.
Physical Specifications:
Dimensions (L x W x H):
- Length: 2,410 mm (95.3 inches)
- Width: 1,310 mm (51.6 inches)
- Height: 1,660 mm (65.4 inches)
Weight:
- Weight (dry): Approximately 2,550 kg (5,622 lbs), depending on configuration
- Weight (wet): Approx. 2,800 kg (6,173 lbs) including lubricants, cooling fluids, and other necessary fluids for operation
Exhaust System:
- Exhaust temperature: Approximately 500°C at full load
- Exhaust gas flow: Approximately 30 - 35 kg/s depending on load
Cooling System:
- Cooling type: Closed-loop freshwater cooling system with seawater heat exchanger
- Cooling capacity: Approximately 35-40 kW depending on conditions and operational load
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
