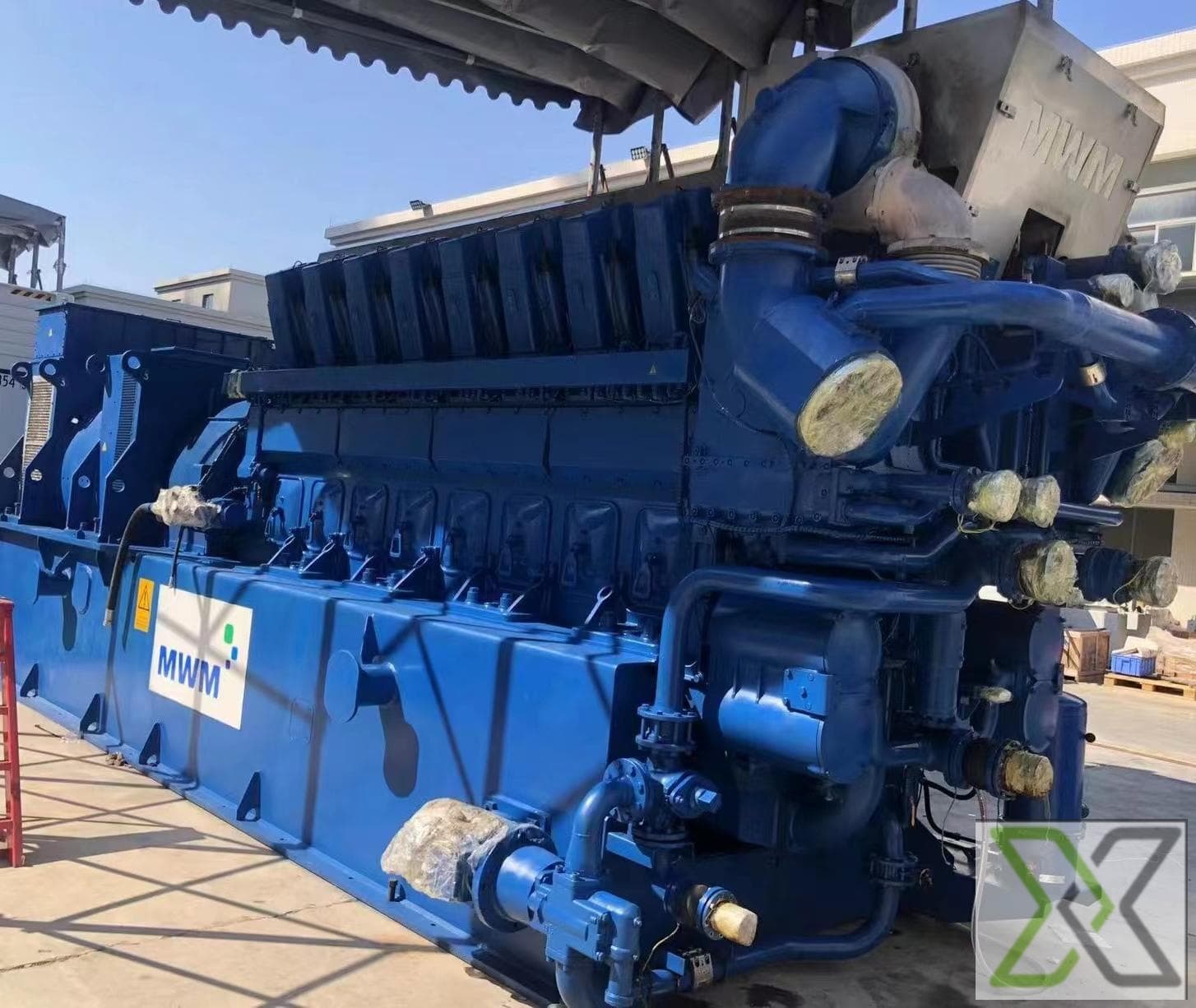

MWM 2032V16 Gas Engine (2015)

General Information:

• Engine Model: MWM 2032V16
• Engine Type: Gas Engine
• Year of Manufacture: 2015
• Number of Cylinders: 16 cylinders (V16 configuration)
• Fuel Type: Natural Gas or Biogas
• Application: Power generation for industrial or commercial use, combined heat and power (CHP) systems
• Cooling System: Water-cooled, integrated cooling system
• Emissions Technology: Compliant with modern emissions standards, including low NOx and CO emissions (optional catalytic converter)

Engine Specifications:

• Engine Configuration: V16 (16-cylinder, V-type)
• Displacement: 32.8 L (2.05 L per cylinder)
• Bore x Stroke: 160 mm x 190 mm
• Compression Ratio: 9.5:1 (typical for gas engines)
• Rated Power Output: 1,200 – 2,000 kW (depending on operating conditions and configuration)
• Rated Speed: 1,500 rpm (50 Hz) / 1,800 rpm (60 Hz)
• Fuel Consumption: Approximately 0.32 – 0.35 m³/kWh at full load (depending on gas quality)
• Cooling Type: Water-based closed-loop cooling system
• Lubrication: Wet sump lubrication system with oil filtration and circulation

Performance and Operational Characteristics:

• Frequency: 50 Hz (for regions with 50 Hz electrical systems), 60 Hz (optional for other regions)
• Voltage Output: Typically 400V – 11 kV, depending on the generator configuration
• Efficiency: High electrical and thermal efficiency for CHP applications
• Operating Temperature: Designed to operate in a wide temperature range, from -10°C to +50°C (ambient temperature range)
• Start-up Time: Fast start-up capability, typically within 15-30 minutes (cold start)

Emissions and Environmental Performance:

• NOx Emissions: Low emissions technology (typically under 400 mg/Nm³ at 5% O2, depending on the engine configuration and optional after-treatment)
• CO Emissions: Low carbon monoxide emissions, typically below 500 mg/Nm³
• Particulate Matter: Minimal particulate emissions, typically below 50 mg/Nm³
• Compliance: Complies with international emissions standards (for example, European Union, U.S. EPA Tier 4)

Electrical System and Integration:

• Generator Compatibility: Compatible with both synchronous and asynchronous generators
• Power Factor: Typically 0.8 – 0.85 (depending on generator and load conditions)
• Control System: Advanced digital control system for efficient engine management, with options for remote monitoring and diagnostics
• Protection Features: Includes comprehensive protection features such as low oil pressure, high exhaust temperature, overspeed, and high water temperature

Maintenance and Serviceability:

• Service Intervals: Extended service intervals for oil changes and maintenance, with options for predictive maintenance using advanced monitoring systems
• Maintenance Features: Easy access to engine components for routine servicing and repairs
• Lubricant Type: High-quality synthetic oil for optimal performance and longer service life

Applications:

• Power Generation: Suitable for base-load or peak-load power generation for industrial, commercial, and utility-scale applications
• Combined Heat and Power (CHP): Ideal for district heating or cogeneration plants that require both electricity and heat
• Backup Power: Can be used as a backup generator in areas with unreliable or intermittent power supply
• Off-Grid Generation: Ideal for remote locations without access to the national grid

Additional Features:

• Dual Fuel Capability: Capable of running on both natural gas and biogas (or other gaseous fuels)
• High Availability: Designed for high reliability and long operational life with proper maintenance
• Compact Design: Engine is designed for easy integration into containerized power plants or standalone facilities
• Low Maintenance Costs: Engine design focuses on minimizing wear and tear, reducing overall maintenance costs over time

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
