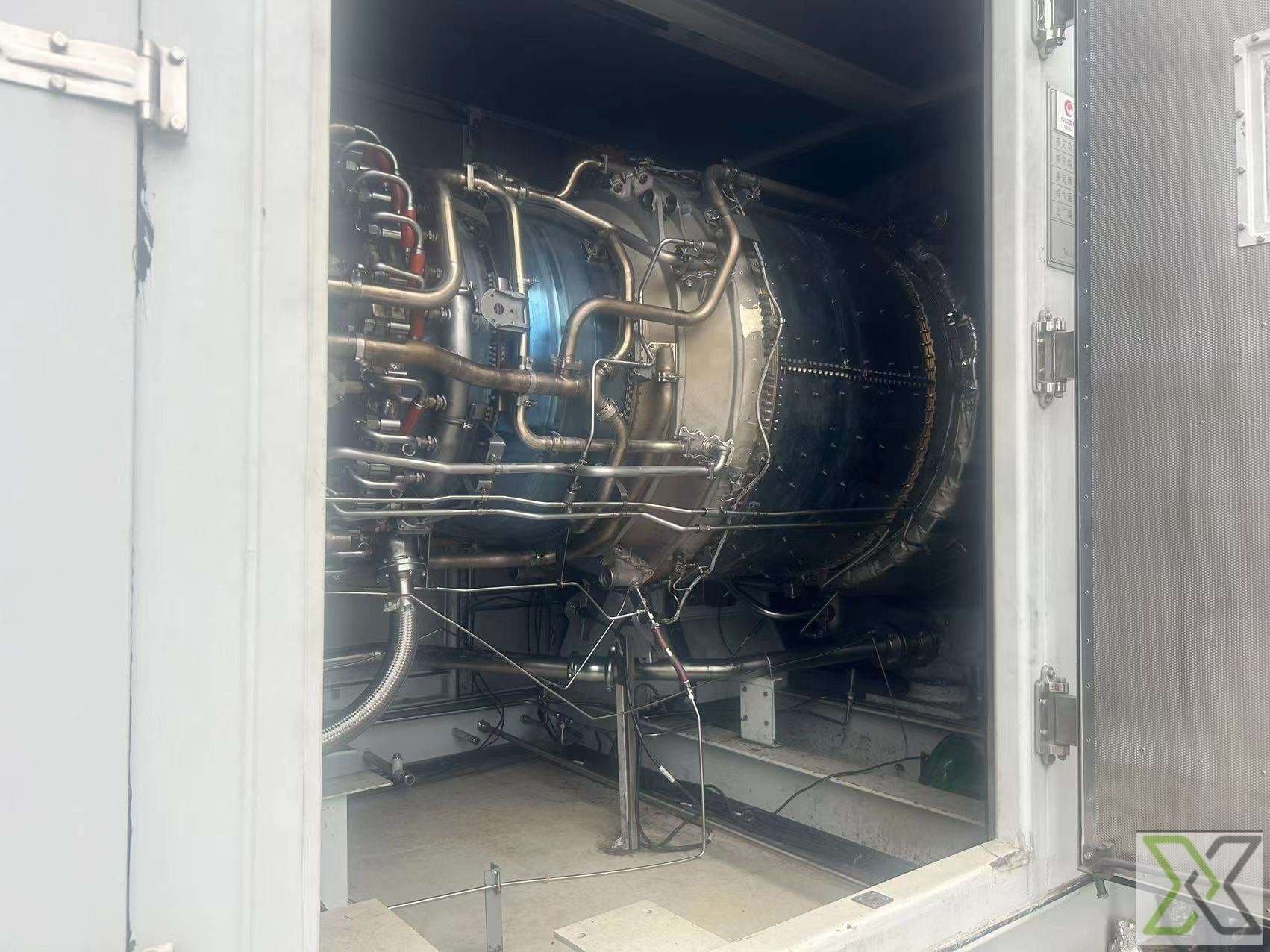

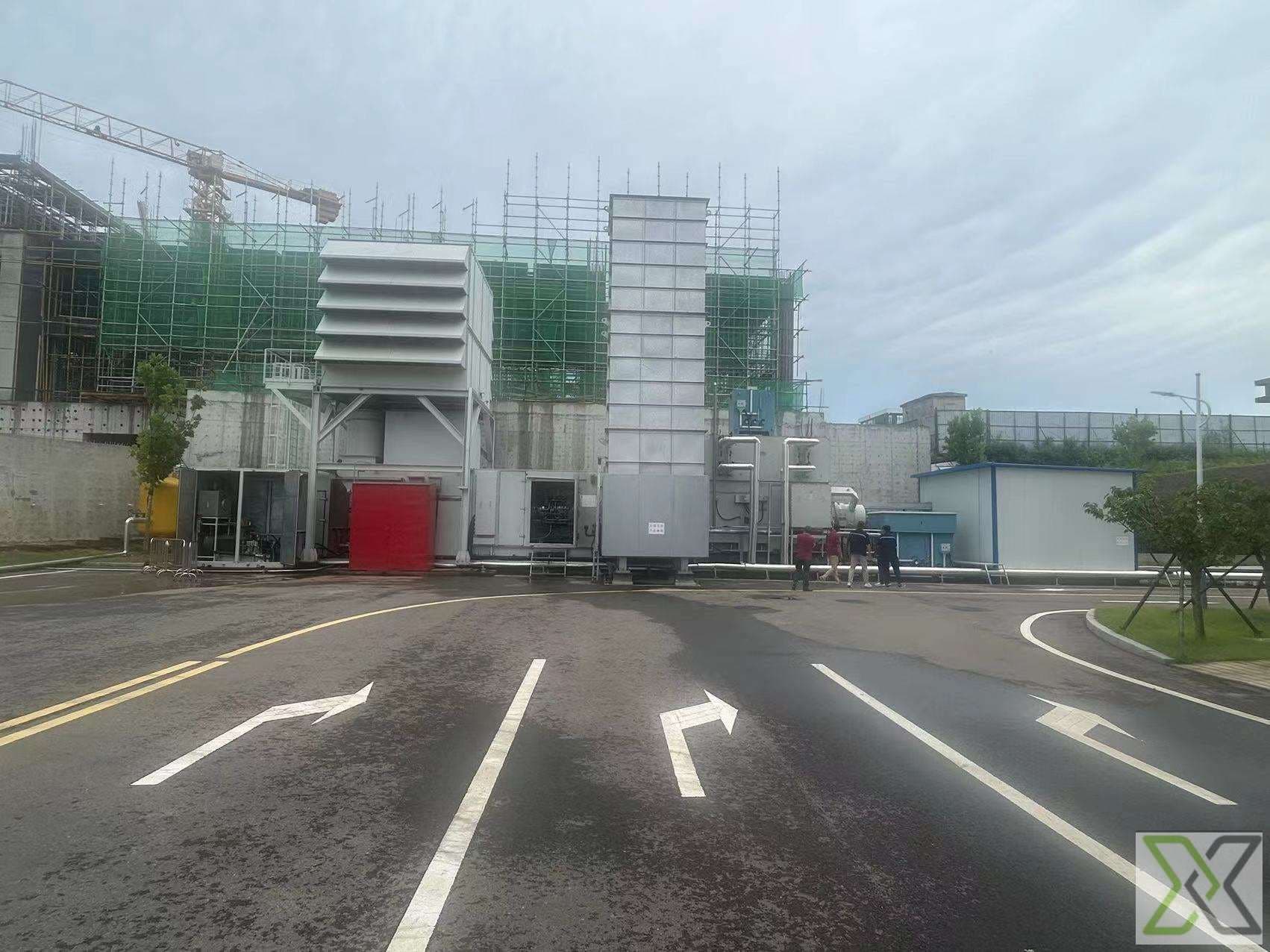

GE LM2500 G4 Gas Turbine (2013) – 35.5 MW, Natural Gas, 50 Hz, 11 kV

Gas Turbine GE LM2500 G4- 2013

ReflowX SKU: REF-9665

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    China
  • Condition
  • OEM
    ReflowX
  • Equipment code
    CFIHOS-30000534
  • Total Price
  • Per Unit Price
    $17,600,000
Chat With Seller

Description

General Specifications

  • Model: GE LM2500 G4
  • Type: Gas turbine
  • Fuel Type: Natural Gas
  • Year: 2013
  • Operating Hours: 650 hours
  • Frequency: 50 Hz
  • Voltage: 11 kV (typically low voltage range for power generation in some cases)
  • Rated Power Output: 35.5 MW
  • Applications: Power generation, mechanical drive, marine propulsion
  • Configuration: Single-shaft, multi-spool design
  • Cooling: Air-cooled

Performance

  • Power Output: 35.5 MW (at base load)
  • Efficiency: Typically around 35–40% (depending on environmental conditions and operating parameters)
  • Compression Stage: 14-stage axial compressor
  • Turbine Stages: 3-stage power turbine
  • Exhaust Temperature: ~530°C (Typical operational exhaust temperature)
  • Operating Temperature: Up to ~1,500°C in the combustion section

Mechanical & Operational Features

Speed:

  • The LM2500 typically operates at a rated speed of 3,600 RPM.
  • It can also run at varying speeds depending on the operating load.

Compressor:

  • The compressor is axial-flow and designed to deliver high pressure and flow, enabling efficient combustion of natural gas.

Combustion:

  • Dry low NOx combustors for emission control.
  • The combustion system in the LM2500 G4 is designed to meet stringent emission standards.

Power Turbine:

  • The power turbine is a free power turbine, meaning it is mechanically disconnected from the compressor and turbine sections, allowing more flexible operation.

Exhaust System:

  • The turbine exhaust typically outputs around 90–110 m³/s, depending on the load and configuration.

Start-Up:

  • Fast start-up times, typically between 10–20 minutes depending on load and ambient conditions.

Dimensions & Weight

  • Length: ~ 4.5 m (15 feet)
  • Width: ~ 2.5 m (8 feet)
  • Height: ~ 3 m (10 feet)
  • Weight: Approximately 23,000 kg (50,000 lbs), depending on configuration

Environmental & Design Conditions

  • Ambient Temperature Range: -10°C to +50°C (may vary depending on specific site conditions)
  • Altitude: Typically, LM2500 G4 turbines are designed to perform optimally up to 1,000 meters (3,280 feet) above sea level.

Control System

  • GE Mark VIe Control System: A modern digital control system for efficient operation, diagnostics, and performance monitoring.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
