SOLAR T60 Gas Turbine Generator | Modular Power Solution - 2022

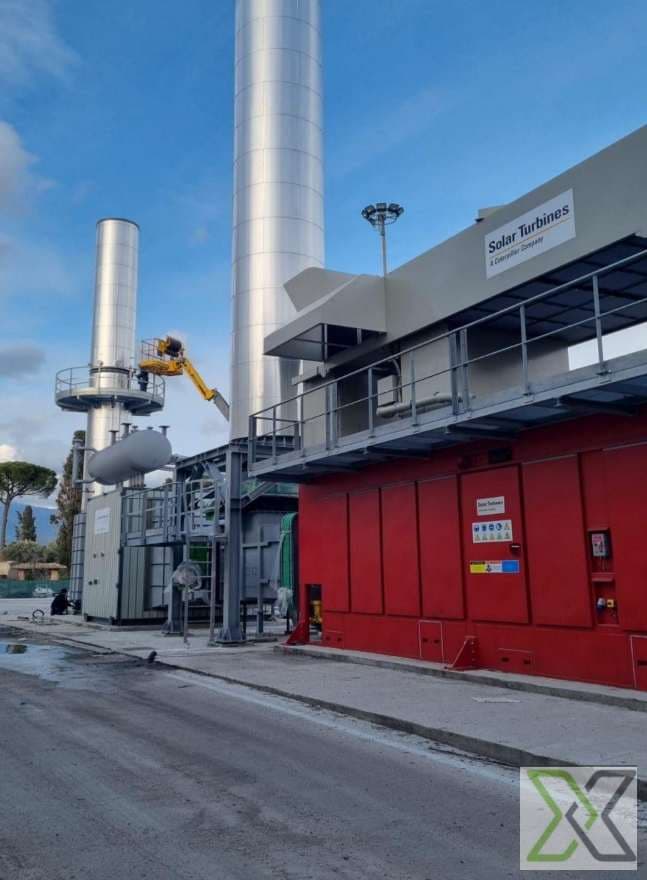

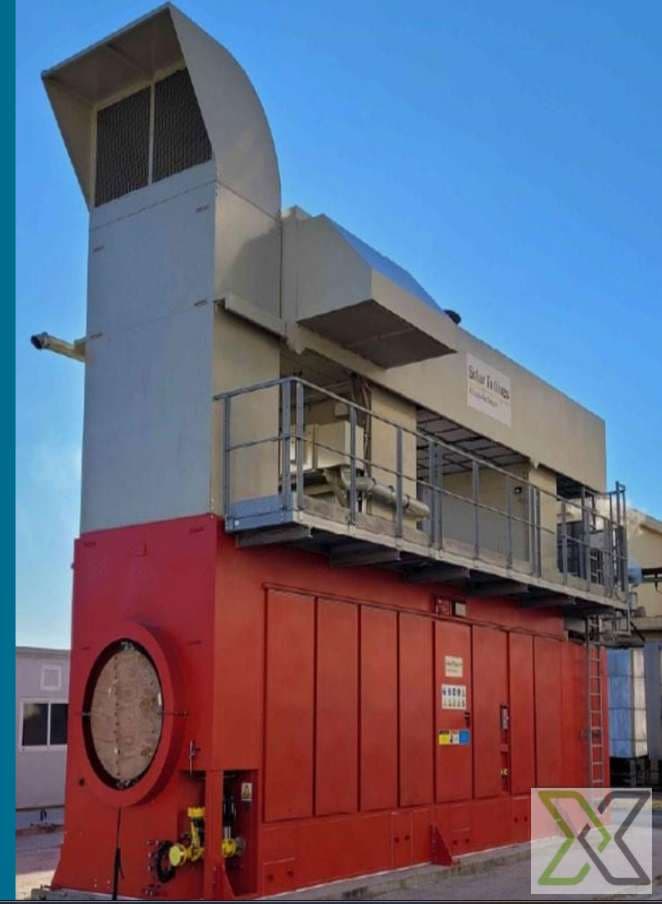

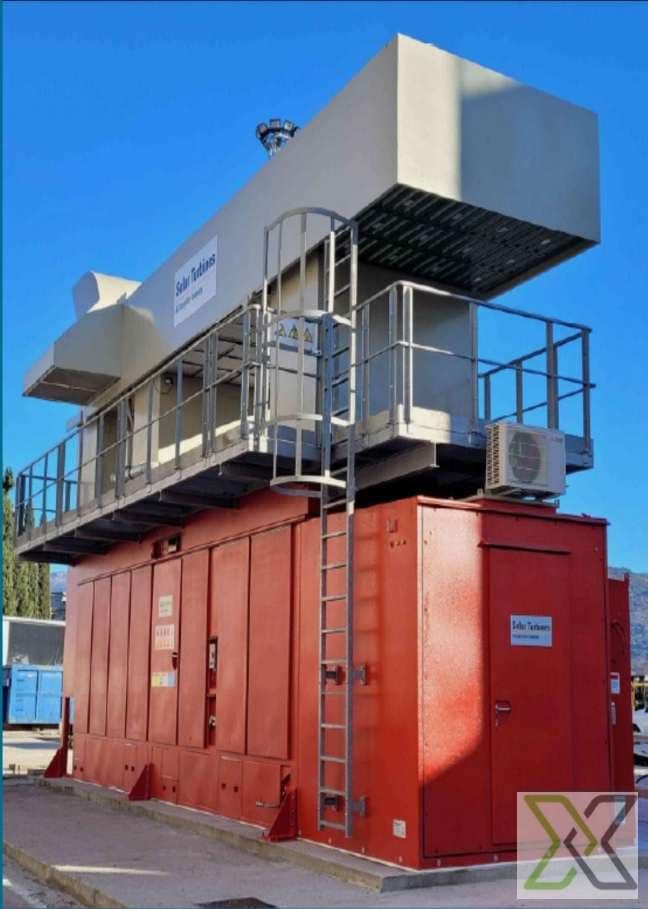

SOLAR T 60 - One Modular Gas Turbine-Generator Package - 2022

ReflowX SKU: REF-6909

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    India
  • Condition
    New
  • OEM
    ReflowX
  • Equipment code
    CFIHOS-30000534
  • Total Price
  • Per Unit Price
    $4,675,000
Chat With Seller

Description

Modular Gas Turbine-Generator Package Specifications

General Information:

  • Package Type: Modular Gas Turbine-Generator Package
  • Manufacturer: Solar
  • Hours of Operation: 0 hours (new or unused unit)
  • Combustion Standard: Solonox (Low NOx combustion system for reduced emissions)
  • Fuel Capability: Natural gas
  • Variant: 7901

Turbine Specifications:

  • Manufacturer: Solar
  • Model: Taurus 60
  • Rated Output: 5,670 kW (ISO - Gas)
  • Rated Power: 5,670 kW at ISO conditions (Standard Ambient Temperature: 15°C, 101.3 kPa, dry gas)
  • Fuel Type: Natural gas
  • Speed: 1,500 RPM (for 50 Hz operation)
  • Compressor: Axial-flow compressor for efficient air intake and compression
  • Turbine: Free power turbine design for flexibility in mechanical drive applications

Gearbox Specifications:

  • Manufacturer: Solar
  • Output Speed: 1,500 RPM (matching the generator speed)
  • Configuration: The gearbox is designed to match the turbine's rotational speed to the alternator's operational speed of 1,500 RPM.

Alternator Specifications:

  • Manufacturer: Leroy Somer
  • Voltage: 6.3 kV
  • Frequency: 50 Hz (standard for most international power grids)
  • Speed: 1,500 RPM (synchronized with turbine speed)
  • Type: Synchronous generator with efficient power generation capabilities

Performance & Operating Conditions:

  • Power Output: 5,670 kW at ISO gas conditions
  • Operating Frequency: 50 Hz (standard for European and many international grids)
  • Voltage: 6.3 kV (High-voltage suitable for industrial and power generation applications)
  • Start-Up Time: Rapid start-up typically within 10–20 minutes depending on environmental conditions
  • Fuel Efficiency: Optimized for natural gas with low emissions, including the Solonox combustion technology for reduced NOx output.

Dimensions & Weight:

  • Dimensions: Vary based on installation configuration, but typically compact for modular design.
  • Weight: Typically in the range of 35,000–45,000 kg, depending on the configuration and accessories.

Environmental Conditions:

  • Ambient Temperature Range: Typically from -10°C to +50°C, depending on configuration.
  • Altitude: The package is generally designed to operate up to 1,000 meters above sea level, with potential derating at higher altitudes.

    Alternator
  • Manufacturer: Leroy Somer Voltage: 6.3kV
  • Frequency: 50Hz Speed: 1,500RPM
  • The heat recovery system is NOT included in our scope of supply.
  • The bypass stack and HRSG is not included


    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
