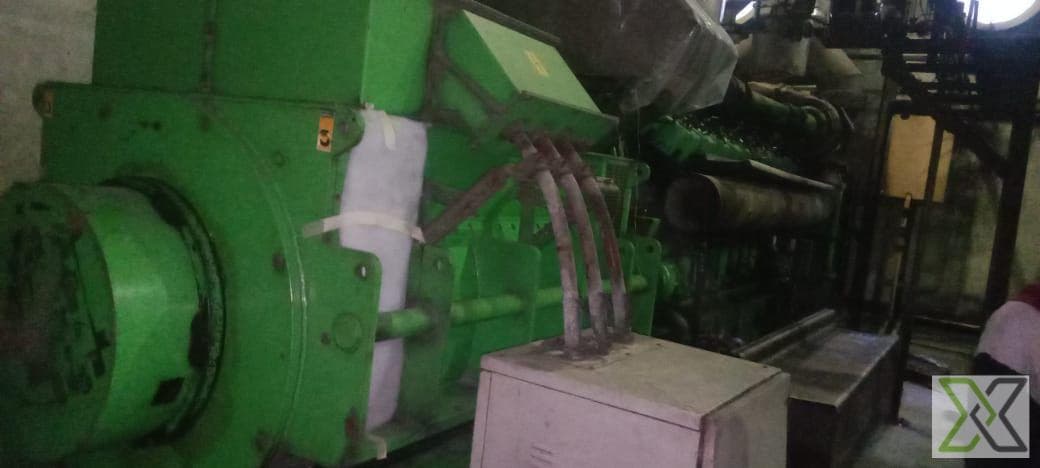

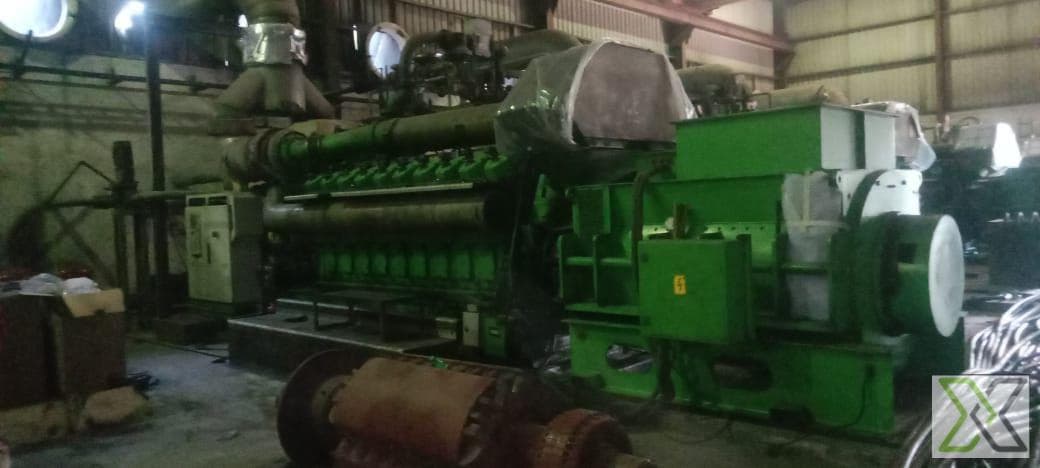

JENBACHER J620 GS Gas Engine (2008)

ReflowX SKU: REF-1063

Product Details

Chat With Seller

General Information:

Model: JENBACHER J620 GS
Manufacturer: INNIO (formerly GE Jenbacher)
Year of Manufacture: 2008
Engine Type: Gas-fired, reciprocating engine
Application: Power generation, Combined Heat and Power (CHP), and industrial applications
Fuel Type: Natural gas, biogas, or other gaseous fuels
Cooling System: Water-cooled system for efficient thermal management
Condition: Can be refurbished or used, depending on availability

Power Output: Approximately 4.4 MW (electrical power output at ISO conditions)
Efficiency: Up to 41% electrical efficiency (depending on the operating conditions and configuration)
Compression Ratio: 12:1
Rated Speed: 1,500 rpm (for 50 Hz operation) / 1,800 rpm (for 60 Hz operation)
Number of Cylinders: 12 cylinders (V-configuration)
Cylinder Bore: 160 mm
Stroke Length: 190 mm
Displacement: 45.6 liters
Turbocharger: Single-stage turbocharger system for optimized performance and fuel efficiency
Lubrication System: Wet-sump lubrication system for smooth operation
Ignition System: Spark ignition for high efficiency and clean combustion

Operating Temperature Range: Designed to operate efficiently in ambient temperatures ranging from -5°C to +40°C (additional cooling may be required for extreme temperatures)
Fuel Consumption: Approximately 0.35 – 0.40 m³/kWh (natural gas, depending on load and operational conditions)
Thermal Efficiency: Ideal for cogeneration (CHP) applications, providing both electrical and thermal energy (thermal efficiency can exceed 85% in CHP configurations)
Start-up Time: Fast start-up capability, typically 10-15 minutes from cold start
Maintenance Intervals: Extended service intervals, reducing downtime and operational costs

NOx Emissions: Low NOx emissions due to advanced combustion technology (typically under 300 ppm at 5% O2)
CO Emissions: Low CO emissions (typically under 100 ppm at 5% O2)
Particulate Matter: Very low particulate emissions
Compliance: Meets stringent emissions standards such as EU Stage IIIA and U.S. EPA standards (subject to configuration)
Noise Level: Low operational noise levels, making it suitable for urban and industrial applications

Generator Compatibility: Compatible with synchronous or asynchronous generators
Voltage Output: Typically 400V to 13.8 kV (depending on generator configuration)
Power Factor: Typically 0.8 – 0.85, depending on load and generator configuration
Grid Synchronization: Full capability for grid synchronization and load sharing for larger power installations
Control System: Advanced control system with remote monitoring and diagnostics capabilities, including automatic load sharing and engine protection
