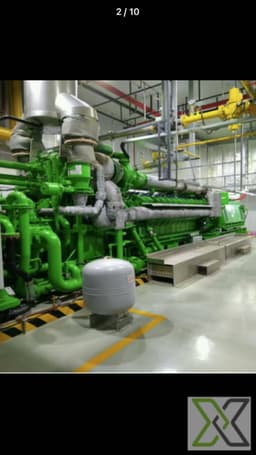

JENBACHER J624 NL Gas Engine (2018)

JENBACHER J624 NL Gas Engine (2018)

ReflowX SKU: REF-4495

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    China
  • Condition
  • OEM
    ReflowX
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $4,565,000
Chat With Seller

Description

General Specifications:

  • Model: JENBACHER J624 NL
  • Year: 2018
  • Engine Type: Spark-ignited, lean-burn gas engine
  • Fuel Type: Natural gas (also compatible with biogas and other gaseous fuels)
  • Application: Power generation, combined heat and power (CHP) systems, industrial applications
  • Engine Configuration: Inline 6-cylinder, water-cooled

Performance Specifications:

  • Electrical Power Output:
    • Nominal Output: 2,000 kW (2 MW) at 50 Hz
    • Maximum Output: 2,300 kW (2.3 MW) at 50 Hz (depending on operational conditions)
  • Efficiency:
    • Electrical Efficiency: Approximately 42% (depending on load and operating conditions)
    • Overall Efficiency (CHP): Up to 90% when used in combined heat and power (CHP) applications
  • Heat Recovery:
    • The engine is capable of delivering high-efficiency heat recovery, making it suitable for industries requiring both power and heat, such as industrial manufacturing or district heating
  • Fuel Consumption:
    • Typical fuel consumption: 0.43 - 0.45 m³/kWh (depending on load and fuel type)

Operational Features:

Start-up Time:

  • Fast start-up: Typically within 10-15 minutes from cold start

Load Response Time:

  • Excellent load-following capability, with the ability to quickly adapt to changing loads, making it suitable for grid stabilization and backup power applications

Cooling System:

  • Water-cooled engine with a closed-loop cooling system to maintain optimal engine temperature

Operating Temperature Range:

  • Typically between -5°C to 45°C (ambient temperature range, additional options are available for extended ranges)

Emissions and Environmental Impact:

NOx Emissions:

  • Designed for low NOx emissions, typically under 250 mg/Nm³ at 5% O2 (meets stringent emission regulations such as EPA Tier 4 or European Stage IIIA/IIIB)

CO Emissions:

  • Typically < 100 mg/Nm³ at 5% O2

Particulate Matter (PM):

  • Extremely low particulate emissions, ideal for urban or environmentally sensitive areas

Control and Monitoring:

Control System:

  • JENBACHER JMS 624 control system, equipped with advanced diagnostics and remote monitoring capabilities
  • Automatic start/stop and integrated load management for seamless operation

Remote Monitoring and Diagnostics:

  • Includes remote monitoring and fault detection capabilities, allowing operators to monitor performance and plan maintenance activities

Safety Features:

  • The engine comes with built-in safety measures such as low oil pressure, high coolant temperature, overspeed protection, and vibration sensors

Physical Specifications:

Dimensions (approx.):

  • Length: 6.5 meters (21.3 feet)
  • Width: 2.5 meters (8.2 feet)
  • Height: 3.5 meters (11.5 feet)

Weight:

  • Approximately 20,000 - 25,000 kg depending on configuration

Exhaust Temperature:

  • Exhaust gas temperature is approximately 450°C - 500°C at full load

Reliability and Maintenance:

  • Maintenance Interval:
    • Major overhaul interval typically ranges from 20,000 - 25,000 hours, depending on operational conditions
  • Serviceability:
    • Modular design for easy maintenance and repair. Components are designed for accessibility to minimize downtime and maintenance costs
  • Lubrication:
    • Fully pressure-lubricated system with high-quality oil filtration to ensure longevity of engine components and reduce maintenance intervals

General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
