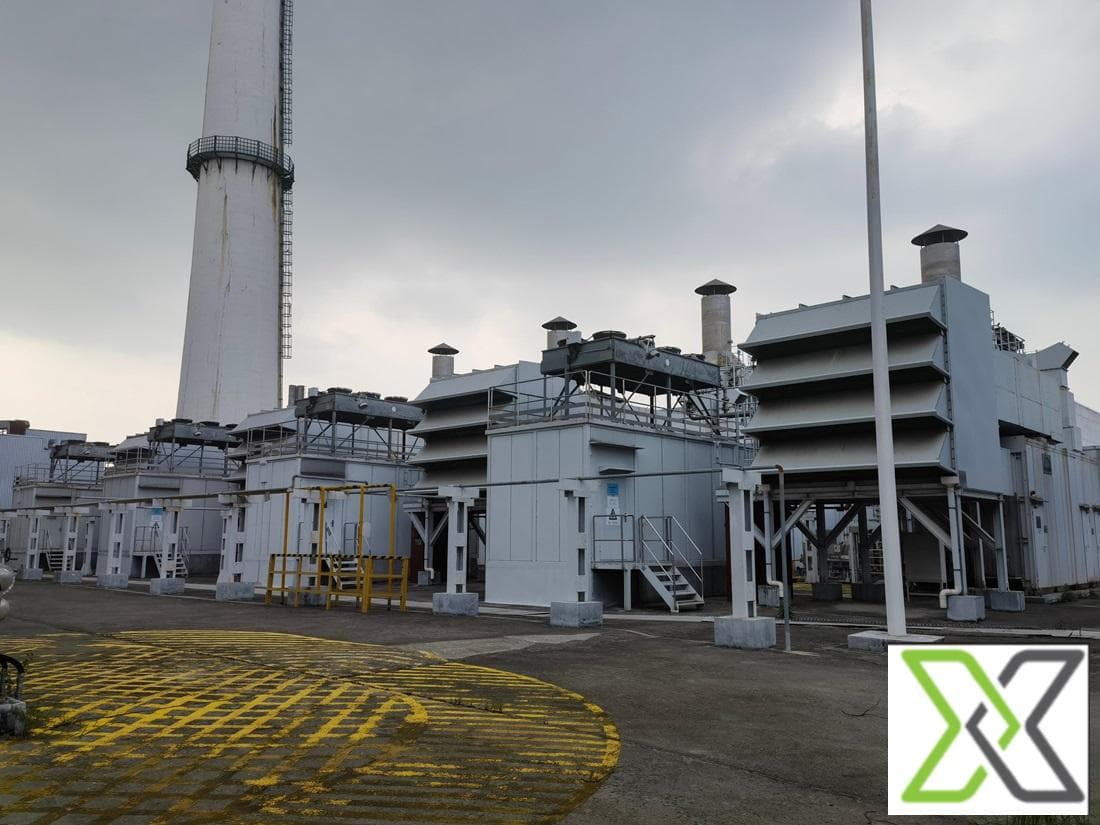

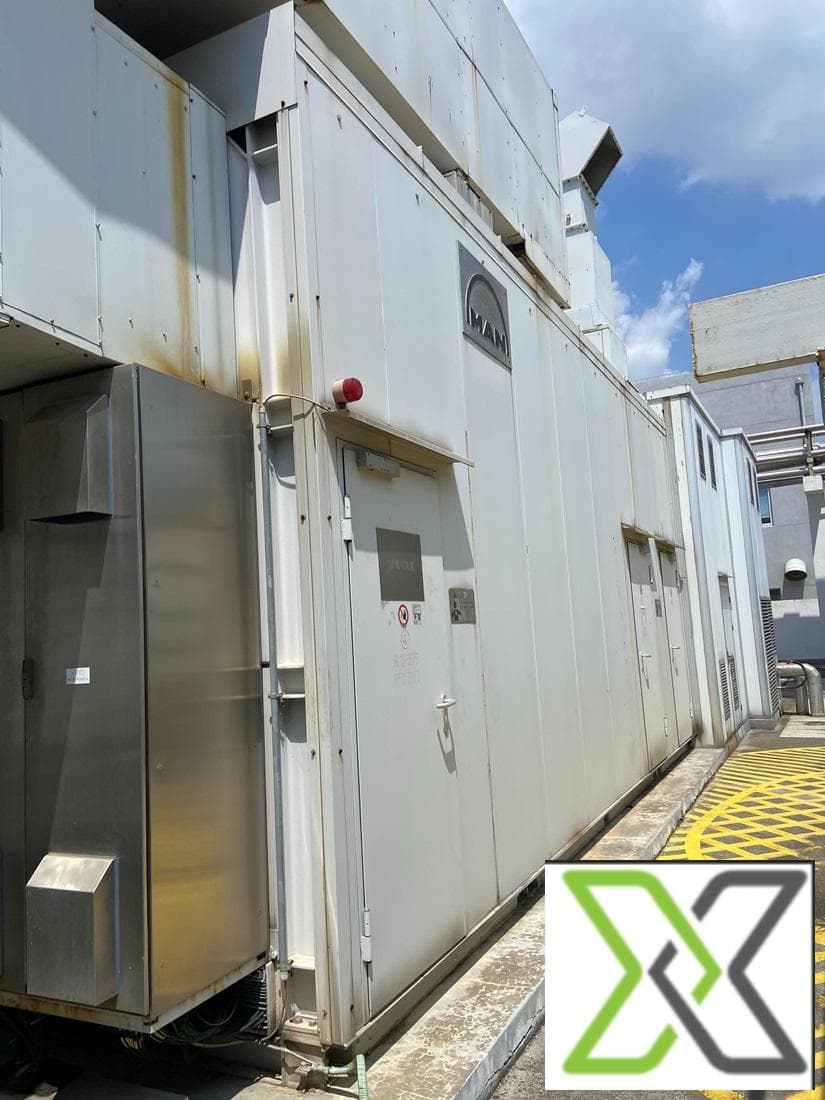

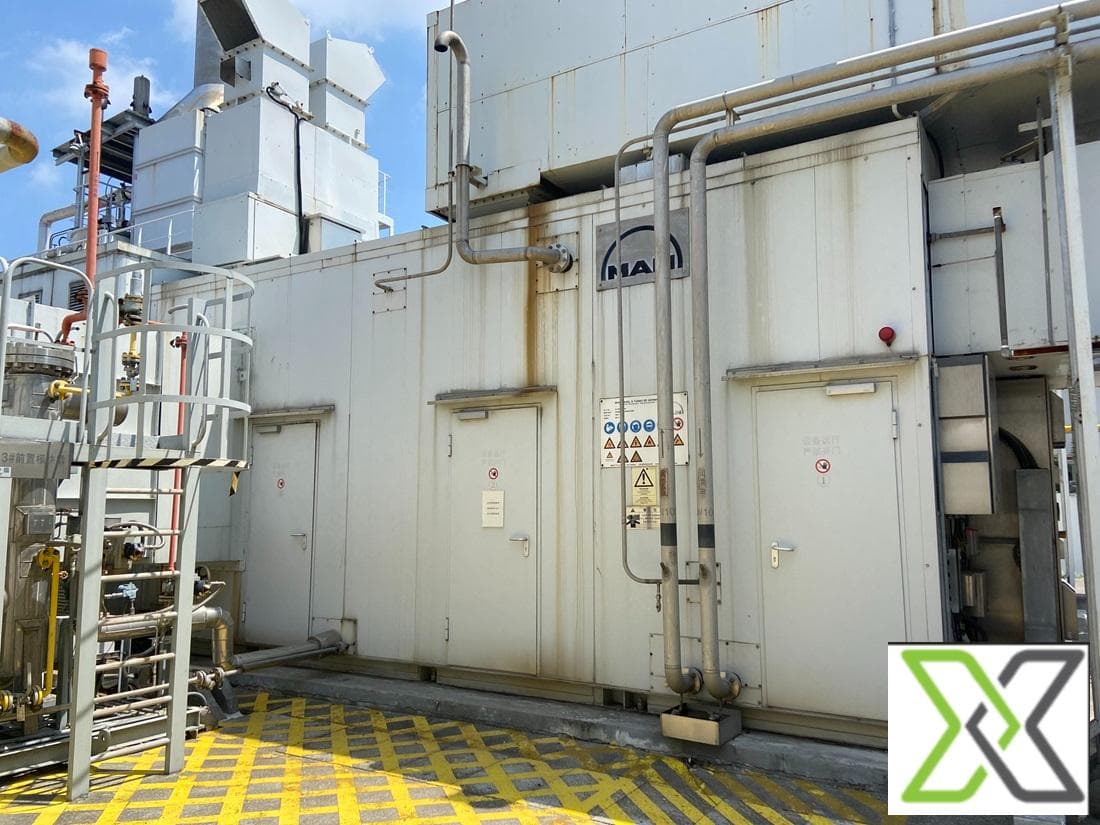

MAN MGT 6000 Gas Turbine (2015)

MAN MGT 6000 Gas Turbine (2015)

ReflowX SKU: REF-8819

Product Details

  • Quantity
    4
  • Availability (Lead Time)
    N/A
  • Product Location
    Indonesia
  • Condition
  • OEM
    ReflowX
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $14,300,000
Chat With Seller

Description

General Specifications:

  • Model: MAN MGT 6000
  • Type: Industrial gas turbine
  • Fuel Type: Natural gas, with options for liquid fuels (e.g., diesel, kerosene)
  • Configuration: Single-shaft design
  • Manufacture Year: 2015
  • Application: Power generation, combined heat and power (CHP), and industrial applications

Performance Specifications:

Power Output:

  • Electrical Output: Up to 60 MW (megawatts) in a simple cycle configuration
  • Combined Cycle Output: Up to 110 MW (when coupled with a steam turbine)

Efficiency:

  • Simple Cycle Efficiency: Around 36-38% (depending on operational conditions)
  • Combined Cycle Efficiency: Can reach 55-60% (with additional heat recovery)

Heat Rate:

  • Approximately 9,500-10,000 kJ/kWh in a simple cycle setup
  • 6,500-7,000 kJ/kWh in a combined cycle setup

Operating Conditions:

  • Ambient Temperature Range:
    • Can operate in temperatures from -30°C to 50°C depending on cooling options
  • Start-up Time:
    • Fast start-up time, typically around 10-15 minutes for quick response to power demands
  • Load Response Time:
    • Excellent load-following capabilities with fast response to varying loads

Engine Design and Features:

Compressor:

  • Axial-flow compressor with high pressure ratio for improved efficiency and performance

Combustion System:

  • Dry low emissions (DLE) combustion system designed to meet stringent environmental standards (low NOx and CO emissions)

Turbine Type:

  • High-efficiency, two-stage axial-flow turbine

Cooling System:

  • Integrated air or water-cooling system depending on specific configurations

Emissions:

  • NOx Emissions: Designed for low NOx emissions, typically below 25 ppm at 15% O2 (depending on specific load and fuel type)
  • CO Emissions: Also designed to ensure low CO emissions, typically below 50 ppm at 15% O2
  • SOx and Particulate Matter: Low levels of SOx and particulate matter due to the clean-burning combustion technology

Control and Monitoring:

  • Control System:
    • Advanced digital control system for precise operation and performance monitoring
    • Remote monitoring capabilities for operation and maintenance optimization
    • Automatic start/stop and load sharing capabilities for grid-connected and off-grid installations
  • Safety Systems:
    • Equipped with multiple safety sensors for overspeed, over-temperature, and vibration monitoring
    • Redundant systems to ensure uninterrupted operation during maintenance or faults

Physical Specifications:

Dimensions (approx.):

  • Length: 10.5 meters (34.5 feet)
  • Width: 3.0 meters (9.8 feet)
  • Height: 4.2 meters (13.8 feet)

Weight (approx.):

  • Weight: Around 70,000 - 80,000 kg (depending on configuration)

Exhaust Temperature:

  • Typically around 450 - 500°C at full load (varies based on ambient conditions and operational load)

    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
