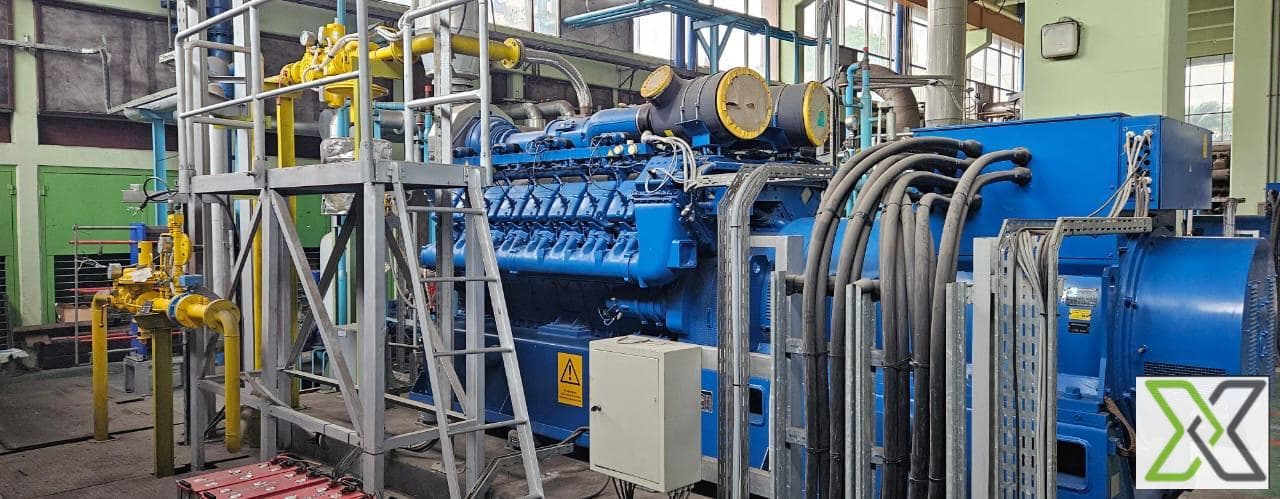

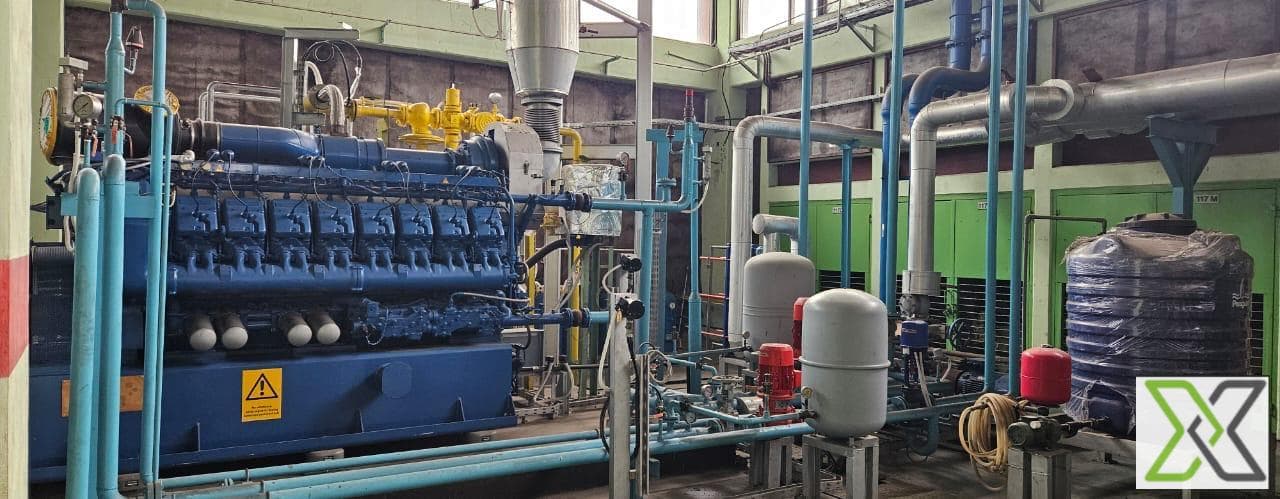

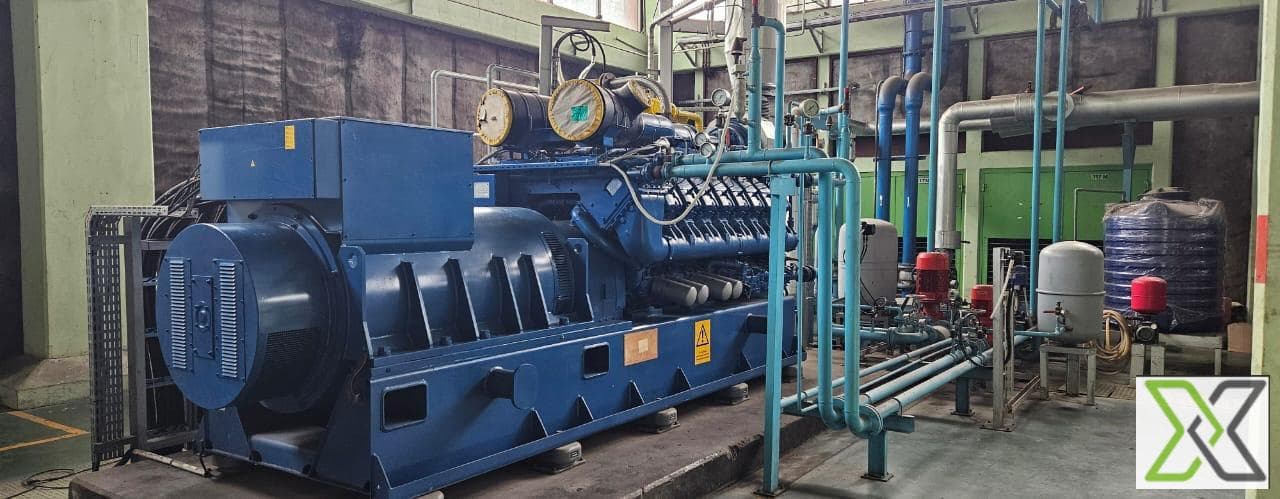

MWM TCG 2020V16 K Gas Engine Generator (2014) Specifications | High-Efficiency Gas Power

MWM TCG 2020V16 K Gas Engine Generator (2014)

ReflowX SKU: REF-4360

Product Details

  • Quantity
    2
  • Availability (Lead Time)
    N/A
  • Product Location
    Indonesia
  • Condition
  • OEM
    ReflowX
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $522,500
Chat With Seller

Description

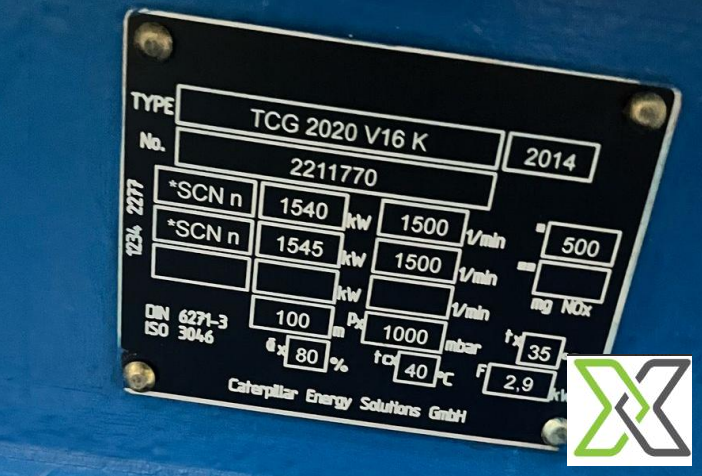

MWM TCG 2020V16 K Gas Engine Generator (2014) Specifications:

General Engine Specifications:

  • Model Year: 2014
  • Engine Type: 4-stroke, Turbocharged, Intercooled
  • Engine Model: MWM TCG 2020V16 K
  • Configuration: V16
  • Bore x Stroke: 170 mm x 210 mm (6.7 in x 8.3 in)
  • Displacement: 48.3 L (2,949 cubic inches)
  • Compression Ratio: 11:1
  • Fuel Type: Natural Gas, Biogas, Landfill Gas, or other suitable gases
  • Cooling System: Water-cooled, closed-loop
  • Lubrication System: Full-flow filtration system
  • Aspiration: Turbocharged and intercooled

Performance Data:

  • Power Output:
    • Electrical Power: 1,250 kWe (nominal), up to 1,400 kWe (maximum power)
    • Thermal Power: Approximately 1,150 kWth (for combined heat and power applications)
  • Speed: 1,500 RPM (50 Hz), 1,800 RPM (60 Hz)
  • Efficiency:
    • Electrical Efficiency: Approximately 40-42%
    • Total Efficiency: Up to 85-90% with combined heat and power (CHP) applications
  • Fuel Consumption: Approx. 0.38 m³/kWh at full load (for natural gas)
  • Heat Rate: Approximately 8,500–9,100 Btu/kWh

Emissions and Environmental Compliance:

  • Emissions Standards: Meets EU Stage IIIA and EPA Tier 2 emissions regulations.
  • NOx: Approximately 0.5–1.0 g/kWh (depending on fuel quality and operating conditions)
  • CO: Approximately 1.5–2.0 g/kWh at full load
  • UHC (Unburned Hydrocarbons): Meets low emissions standards
  • CO2 Emissions: Reduced CO2 emissions due to high efficiency and use of low-carbon fuel sources like biogas.

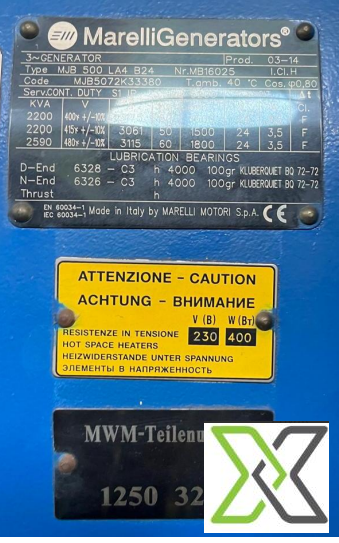

Electrical System:

  • Alternator Type: Synchronous alternator with integrated excitation system
  • Voltage: 400V, 480V, 600V, or customer-specific voltage configurations
  • Frequency: 50 Hz (typically for Europe, 60 Hz for North America)
  • Power Factor: 0.8 lagging (typical for most industrial gensets)
  • Protection: High-quality protection for overload, short circuit, and generator failure

Dimensions and Weight:

  • Length: Approx. 4,300 mm (169 inches)
  • Width: Approx. 1,800 mm (71 inches)
  • Height: Approx. 2,500 mm (98 inches)
  • Weight: Approx. 18,000 kg (39,683 lbs), depending on configuration

Fuel System:

  • Fuel Type: Natural Gas, Biogas, Landfill Gas, and other suitable gaseous fuels
  • Fuel Pressure: Approx. 0.4–1.0 bar (5.8–14.5 psi)
  • Fuel Consumption:
    • Natural Gas: Approx. 0.38 m³/kWh (natural gas at full load)
    • Biogas: Varies depending on methane content and quality

Cooling and Exhaust:

  • Cooling Method: Water-cooled with integrated heat exchangers and radiators
  • Exhaust Temperature: Approx. 480°C (896°F) at full load
  • Exhaust Back Pressure: Optimized for low exhaust back pressure to ensure maximum engine efficiency
  • Exhaust System: Low-pressure exhaust system designed for maximum fuel efficiency and emissions control

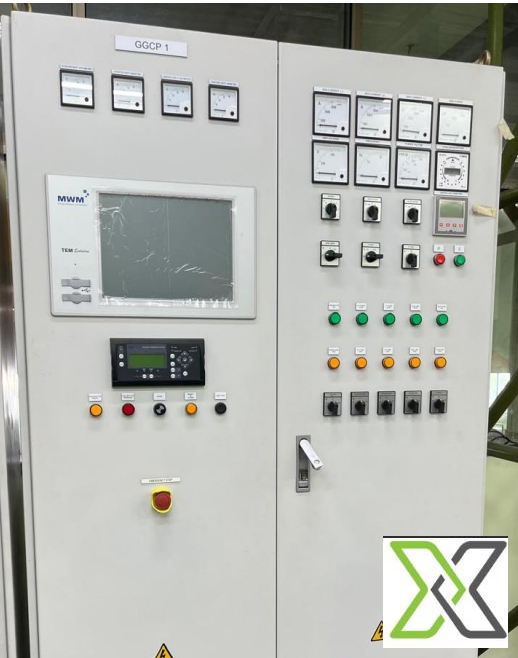

Control and Monitoring:

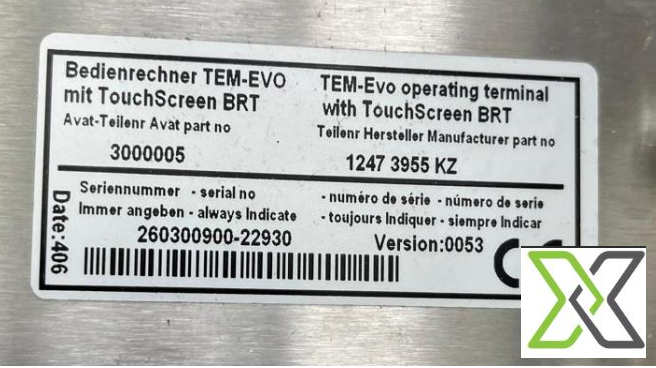

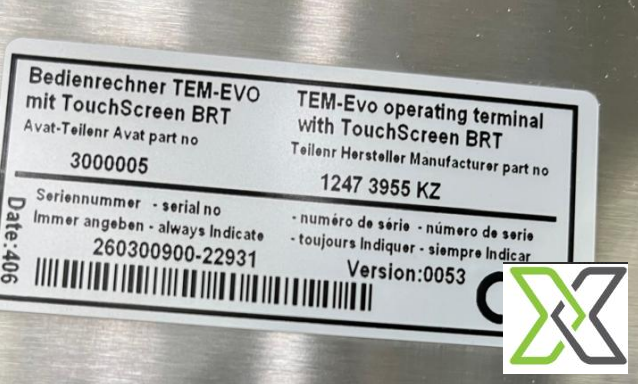

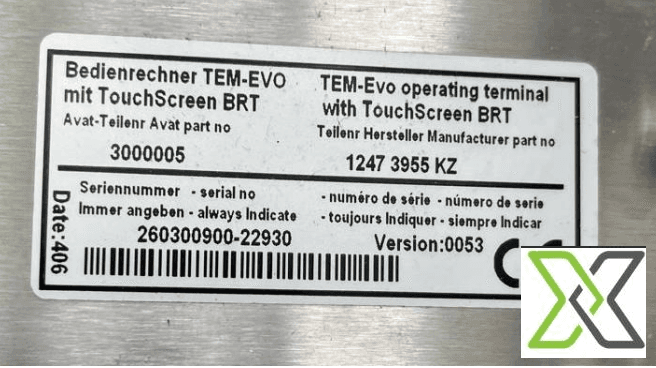

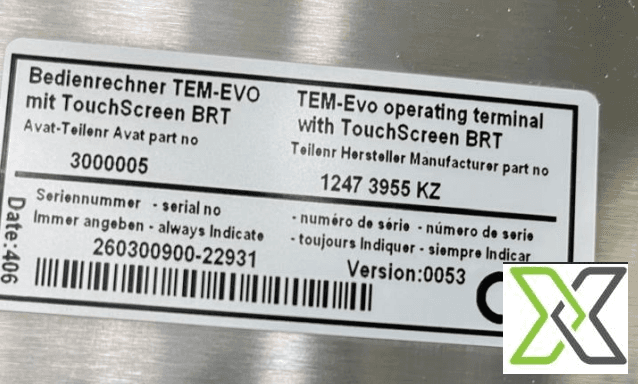

  • Control Panel: MWM EMS (Engine Management System) for advanced control and diagnostics
    • Monitoring of critical parameters: engine speed, fuel consumption, exhaust gas temperature, oil pressure, and more.
    • Remote monitoring capability for real-time performance tracking and maintenance alerts
  • Protection: Overload, short circuit, high temperature, and low oil pressure protection systems
  • Startup/Shutdown: Fully automated start/stop system with manual override options

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
