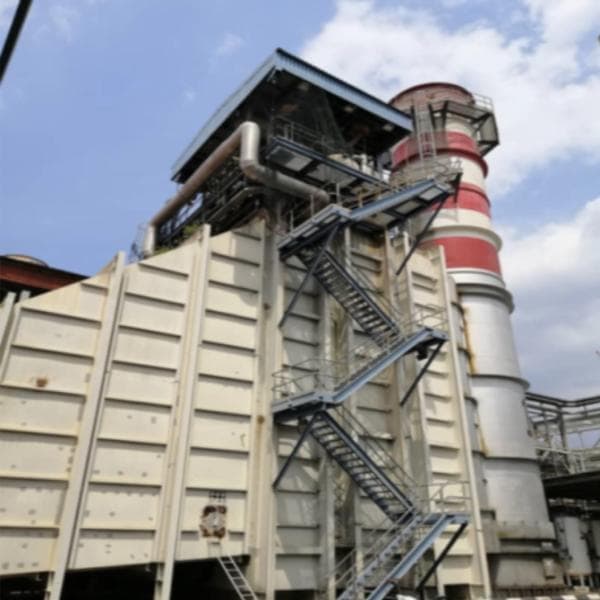

GE Frame 6B Gas Turbine Generator Plant

ReflowX SKU: REF-1987

Description

Equipment Overview:

Manufacturer: General Electric (GE)
Model: Frame 6B (MS6001B)
Power Output: 39 MW (ISO Rated)
Turbine Speed: 5114 RPM
Fuel Type: Dual-Fuel (Gas and Oil)
Voltage: 11 kV, 50 Hz
Configuration: Heavy Industrial Gas Turbine with dual shafts, optimized for both power generation and compressor drive applications.

Key Specifications:

Total Operating Hours (EOH): 68,448 (As of last recorded data in 2016)
Total Starts: 2,166
Year of Manufacture: 1997
Location of Manufacture: Scotland (K.E.L)
Major Equipment:
- 3-stage turbine
- 17-stage compressor
- Combustion System: Cannular-type with 10 combustion cans
- Generator Type: T190-240 (42.25 MVA, 3-phase, 11 kV, 3000 RPM)
- Exciter: TKJ 70/10

System Components:

Air Intake System:
- Two-stage filtration with pre-filter and fine filter
- Includes evaporative cooling media for enhanced performance.
Fuel System:
- Includes both fuel gas and fuel oil systems with dual-fuel capability
- Gas Strainer, Stop/Speed Ratio Valve, Control Valves, and Fuel Nozzles included for efficient fuel management.
Lube Oil System:
- Comprehensive forced-feed lubrication with 1700-gallon reservoir, lube oil pumps, filters, and heat exchangers for effective cooling.
Hydraulic Oil System:
- High-pressure hydraulic system for fuel control and guide vane operation.
- Hydraulic pumps, filters, and control valves ensure reliable operation.
Atomizing Air System:
- Dual air compressors (main and starting) for fuel nozzle atomization, essential for efficient combustion.
Starting System:
- Diesel engine-driven torque converter for turbine startup.
- Hydraulic ratchet system and starting jaw clutch for effective starting sequence.

Accessories and Ancillaries:

Load Gearbox: TRL65CV, reduces turbine RPM from 5114 to 3000 for generator drive
Control System: Integrated control for fuel, hydraulic, and operational safety
Major Upgrades (2009-2013):
- High flow GTD450 IGV upgrade
- CO2 fire protection system upgrade
- Gas detection system upgrade

Maintenance History:

Regular inspections and overhauls, including CI (Combustion Inspection), MI (Major Inspection), and HGPI (Hot Gas Path Inspection) between 2000 and 2014.
Continuous upgrades and maintenance align the turbine with current standards and reliability metrics.

Scope of Supply:

Complete Turbine and Generator Package:
- Air Intake, Fuel, and Lube Oil Systems
- Hydraulic Oil and Atomizing Air Systems
- Starting System and Gearbox
Auxiliary Equipment: Control room, transformers, exhaust and chimney, cooling system, and complete operational manuals.

Condition:

Well-maintained with comprehensive service records. Available for immediate sale with a complete documentation package.

Location: Stored in China, available for immediate delivery.
