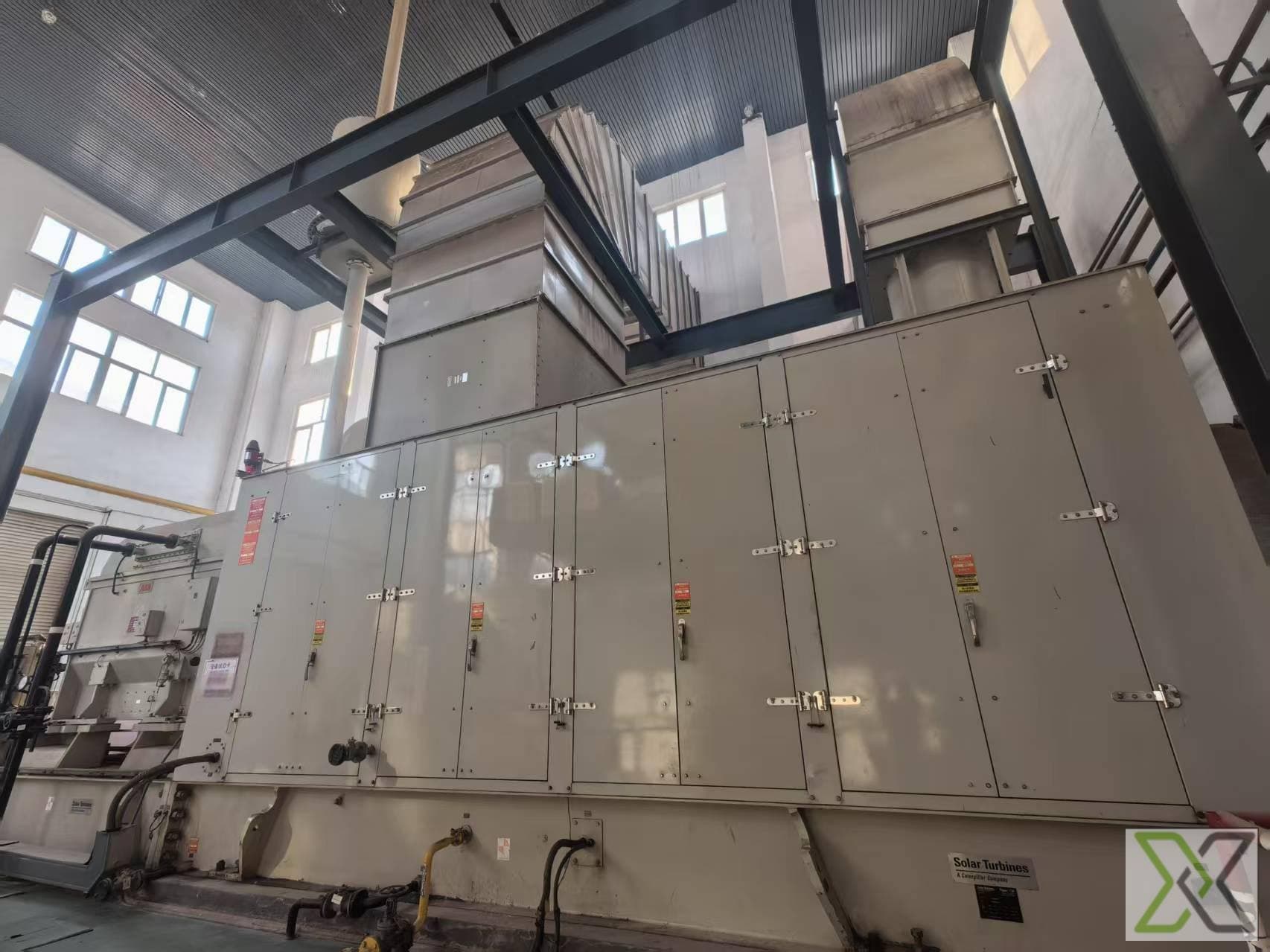

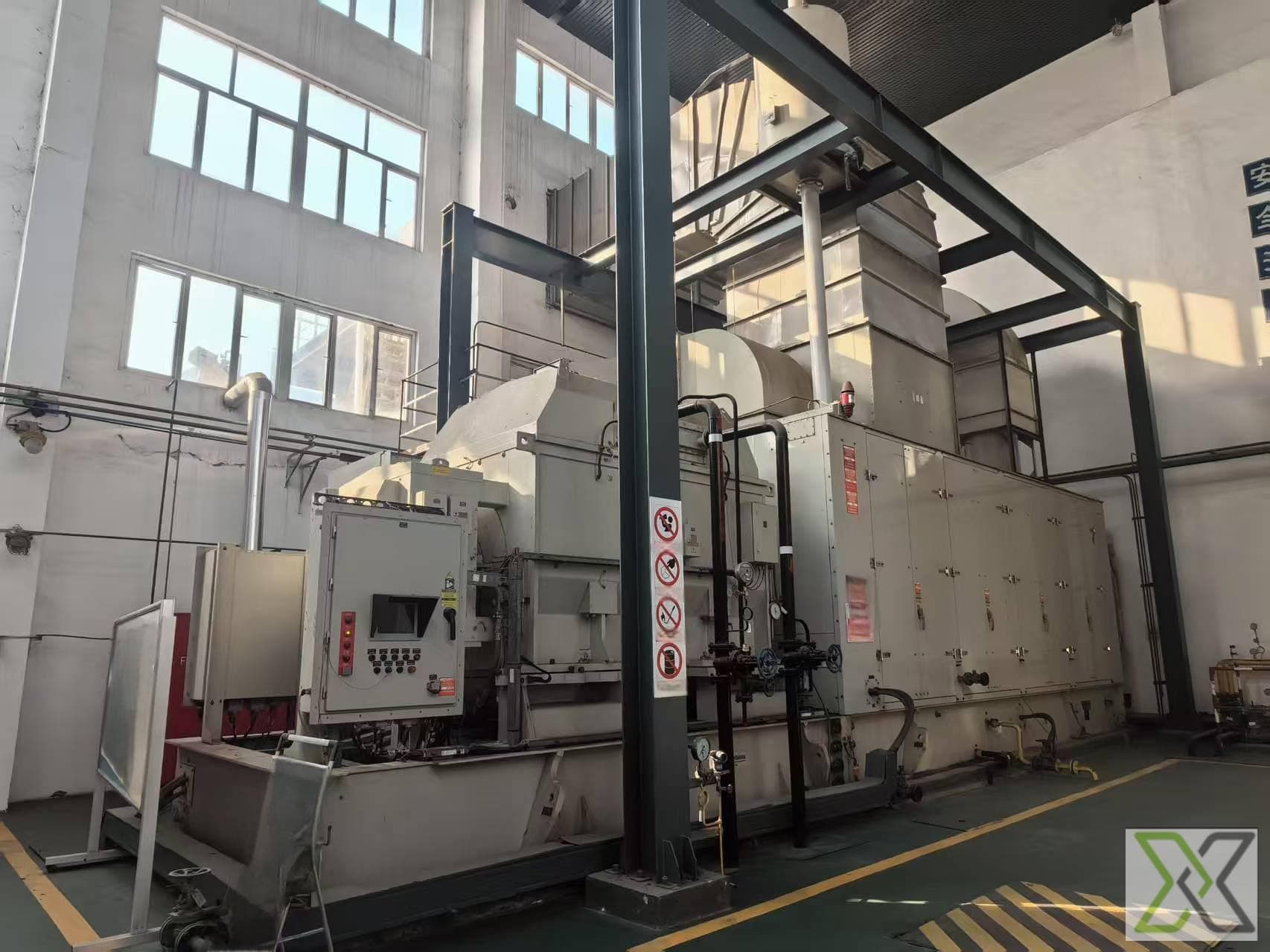

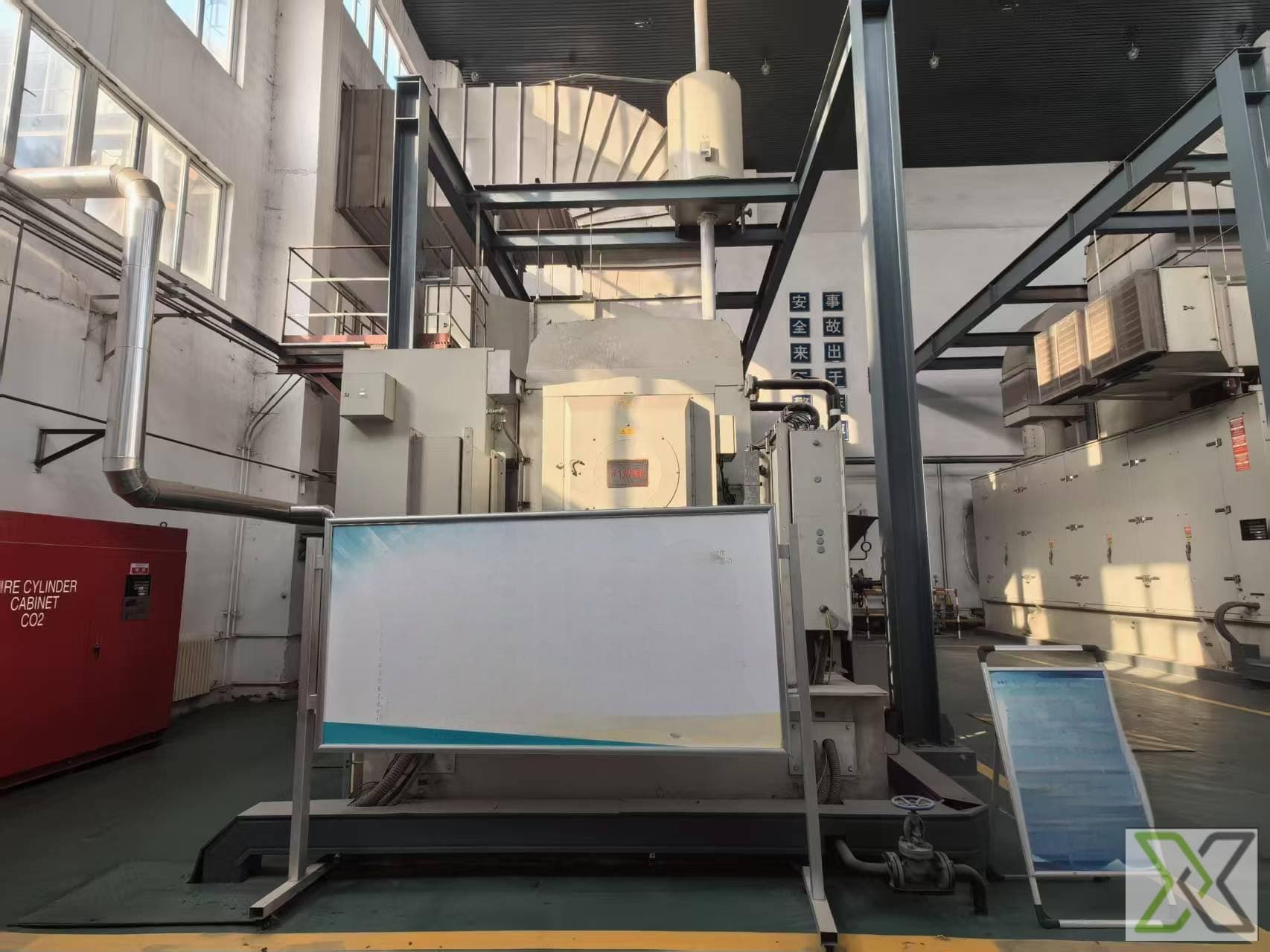

SOLAR TITAN 130 10.5kv - 2012

ReflowX SKU: REF-3351

Product Details

Chat With Seller

Model: Solar Titan 130
Year: 2012
Operational Hours: 22,000 hours
Rated Power Output: 15 MW (15,000 kWe)
Rated Voltage: 10.5 kV
Frequency: 50 Hz
Fuel Type: Natural Gas (typically), or can also operate on Diesel (in specific configurations)
Exhaust Temperature: ~910°F (490°C)
Exhaust Flow: ~446,460 lb/hr (202,510 kg/hr)

Compressor:

Combustion System:

Combustor Type: Annular combustion system.
Injectors: 21 conventional fuel injectors and 14 lean-premixed, dry low-emissions (SoLoNOx) injectors.
Emission Technology: Low-NOx (SoLoNOx) for reduced emissions and improved efficiency.

Turbine:

Bearings:

Bearings Type: Three radial journal bearings (tilt-pad) and two thrust bearings (both tilt-pad).
Vibration Monitoring: Equipped with proximity probes for radial bearings and acceleration transducers for continuous vibration monitoring.

Cooling System:

Cooling Type: Air-cooled or water-cooled, depending on the configuration.
Cooling Airflow: Sufficient to maintain the necessary operating temperature for optimal turbine efficiency.

Type: 4-pole, 3-phase, synchronous generator.
Generator Speed: 1500 RPM (synchronized to 50Hz).
Voltage Output: 10.5 kV (adjustable based on grid requirements).
Type of Generator Cooling: Closed-loop, air-cooled (or water-cooled as an option).

Heat Rate: ~9,630 Btu/kWh (10,160 kJ/kWh) at full load.
Fuel Efficiency: The turbine operates efficiently under full load, with minimal emissions due to the SoLoNOx combustion system.
Fuel Consumption: Approximately 9.4 MMBtu/hr (9,930 kJ/hr) at full load, though this varies depending on operational conditions.

Length: 15.5 meters (50.9 feet)
Width: 4.5 meters (14.8 feet)
Height: 5.5 meters (18 feet)
Weight: Approximately 120-130 tons (depending on the exact configuration and auxiliaries).

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
