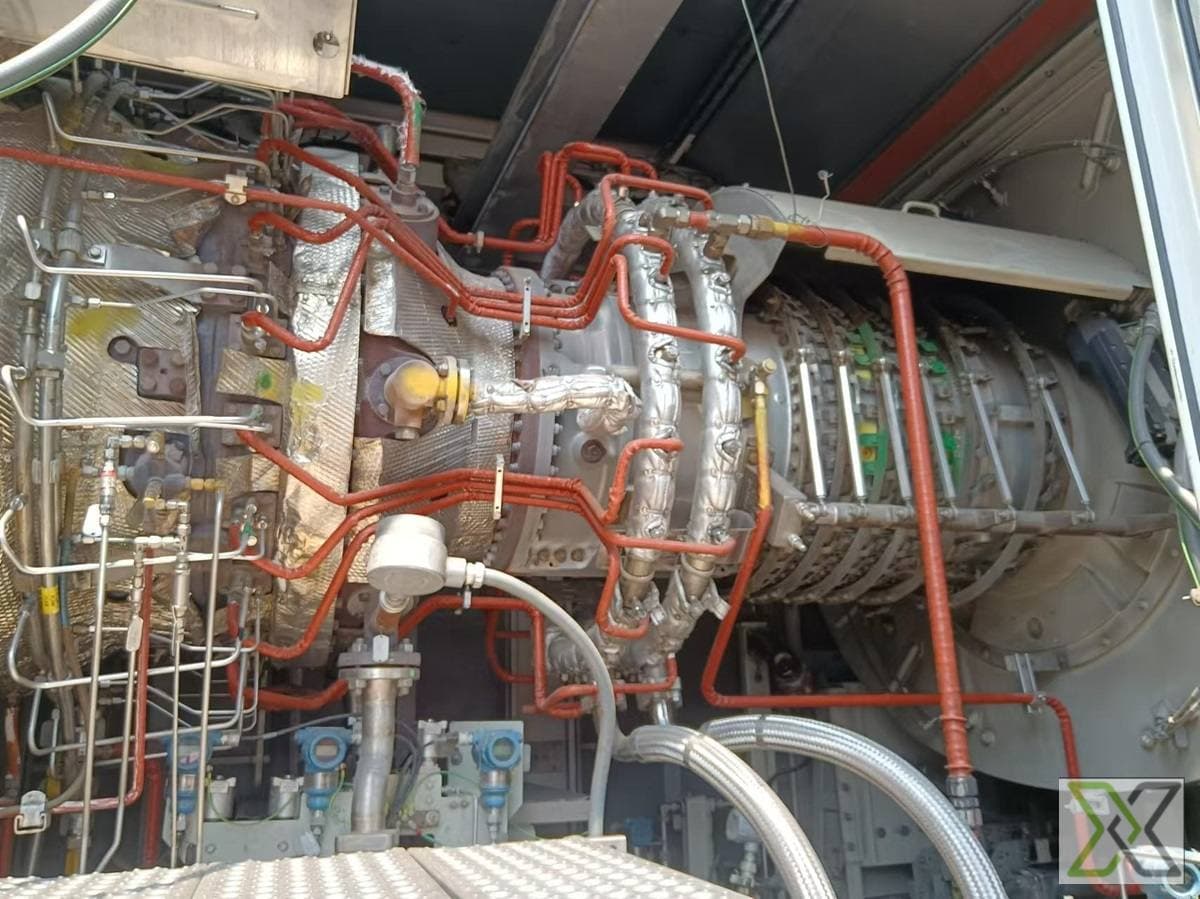

SOLAR TITAN 130 KG16N53-2016

ReflowX SKU: REF-1475

Product Details

Chat With Seller

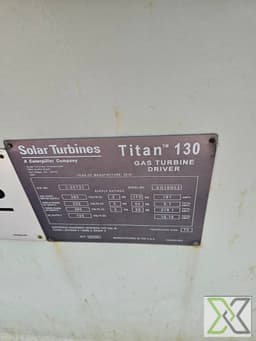

Model: Solar Titan 130
Serial Number: KG16N53
Year: 2016
Hours: 48,916 hours
Rated Power Output: 15 MW (15,000 kWe)
Rated Voltage: 11 kV
Frequency: Typically operates at 50Hz (convertible to 60Hz with modifications, such as changing the gearbox and alternator)
Fuel Type: Natural gas or diesel (as per setup)
Exhaust Temperature: 910°F (490°C)
Exhaust Flow: 446,460 lb/hr (202,510 kg/hr)

Compressor:

Combustion System:

Annular-type combustor.
21 conventional fuel injectors and 14 lean-premixed, dry low emissions (SoLoNOx) injectors.
Designed for low nitrogen oxide emissions.

Turbine:

3-stage reaction turbine.
Counterclockwise rotation.
Turbine speed: Designed to operate at 1500 RPM for 50Hz or 1800 RPM for 60Hz (with gearbox adjustment).

Bearings:

Vibration Monitoring:

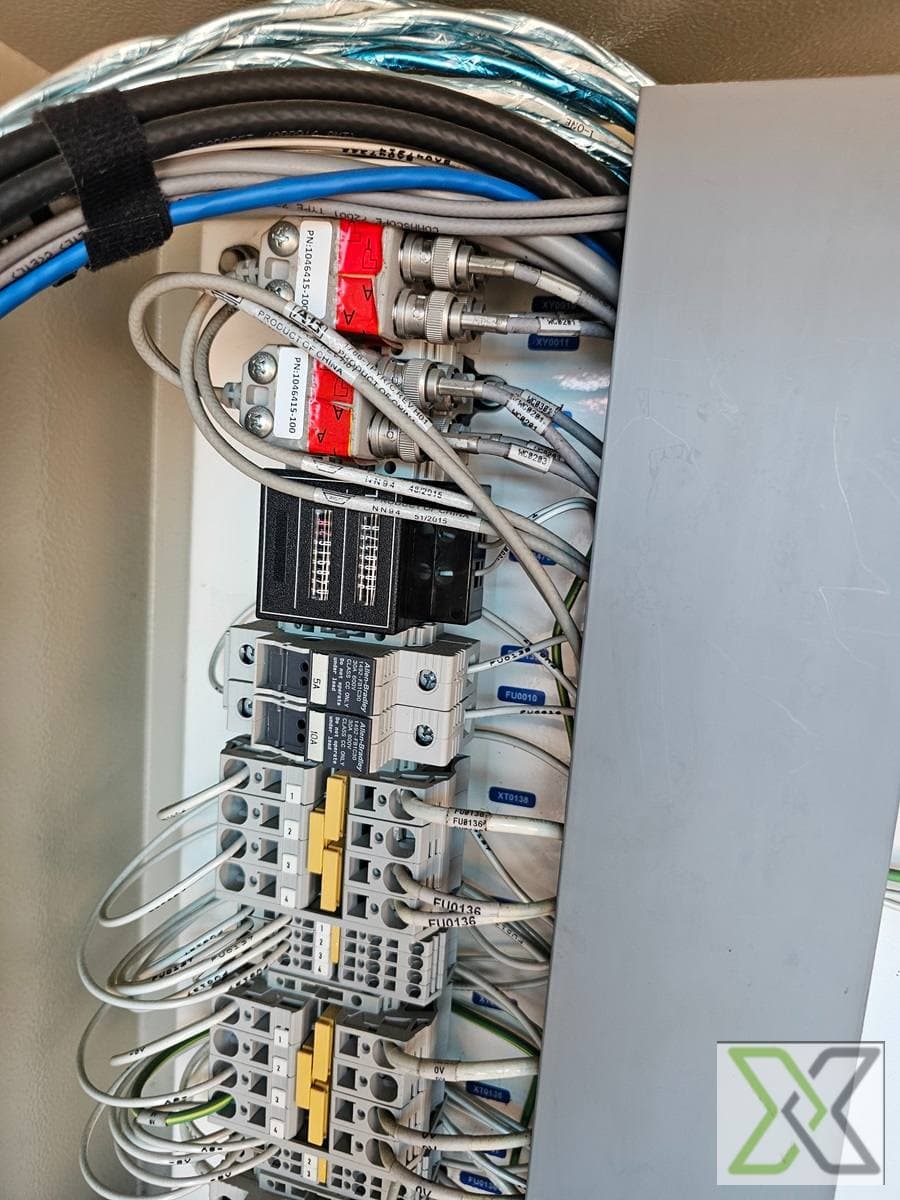

Equipped with proximity probes for radial bearings and accelerometers for vibration monitoring.

Cooling:

Type: 4-pole, 3-phase, synchronous generator.
Speed: 1500 RPM (for 50Hz) or 1800 RPM (for 60Hz, after gearbox adjustment).
Voltage Output: 11 kV (may vary depending on generator configuration).
Generator Protection: Includes voltage regulation, protection relays, and synchronization systems.

Heat Rate: ~9,630 Btu/kWh (10,160 kJ/kWh).
Efficiency: High fuel efficiency with the use of dry low emissions (SoLoNOx) combustion technology.
Fuel Consumption: Depends on operating conditions, typically 9.4 MMBtu/hr (9,930 kJ/hr) at full load.

Gearbox Replacement: A new gearbox capable of increasing turbine speed to 1800 RPM for 60Hz operation.
Alternator: A 60Hz-rated alternator would need to be sourced to maintain power output at 15 MW and 11 kV.
