Purchase Triple Offset Butterfly Valve Tri Lo

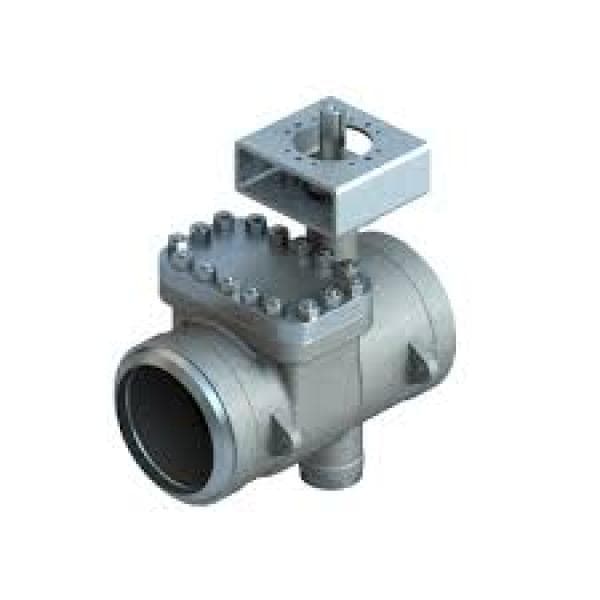

Triple Offset Butterfly Valve Tri Lo

Product Details

  • Quantity
    100
  • Availability (Lead Time)
    6-10 Weeks
  • Product Location
    United Arab Emirates
  • Condition
    New
  • OEM
    Bray International
  • Equipment code
    CFIHOS-30000649

Description

Features & Benefits

Bray proudly offers the Tri Lok triple offset butterfly valve, a premier isolation valve well-suited for operation from vacuum to high-pressure applications and ideally suited for applications requiring absolute zero leakage. Compared to gate, globe or ball valves of the same size and pressure class, Tri Lok provides space and weight savings while minimizing installation and maintenance costs.

Tri Lok’s, non-rubbing, metal-to-metal seal delivers zero leakage with minimal torque and is certified fire-safe. The seal ring ensures uniform peripheral sealing with the seat, achieving full shutoff regardless of flow direction. Tri Lok offers a solid metal seal ring designed for high temperature and severe applications, ensuring dependable sealing performance throughout the full pressure and temperature range.

Bray Tri Lok is the only valve in its class with a splined disc/stem connection. The Tri Lok connection allows axial movement of the disc independent of the stem, keeping the seal ring and seat in position and unaffected by temperature fluctuations and pressure effects on the stem. This design prevents the typical misalignment problems of rigidly attached discs and stems to offer maximum strength. Close tolerance engagement between the disc and stem minimizes hysteresis.



Triple Offset Geometry

The Triple offset valve or triple eccentric valve features a stem that is offset on both the X (1) and Y (2) axis of the butterfly valves center-line. This produces a cam-like motion as the valve operates. The third offset (3) consists of an inclined conical profile machined into the valve sealing surface, allowing rotary engagement and disengagement of the seat and seal ring without interference. This triple offset eliminates all rubbing between the seat and seal ring during valve travel, reducing seat and seal wear and extending cycle life.

Once the seat and seal ring are fully engaged, torque is applied in order to create a bi-directional, zero leak, metal-to-metal seal. For this reason, triple offset valves are often defined as "torque-seated" rather than "position-seated" as in the case of resilient or high-performance products.
